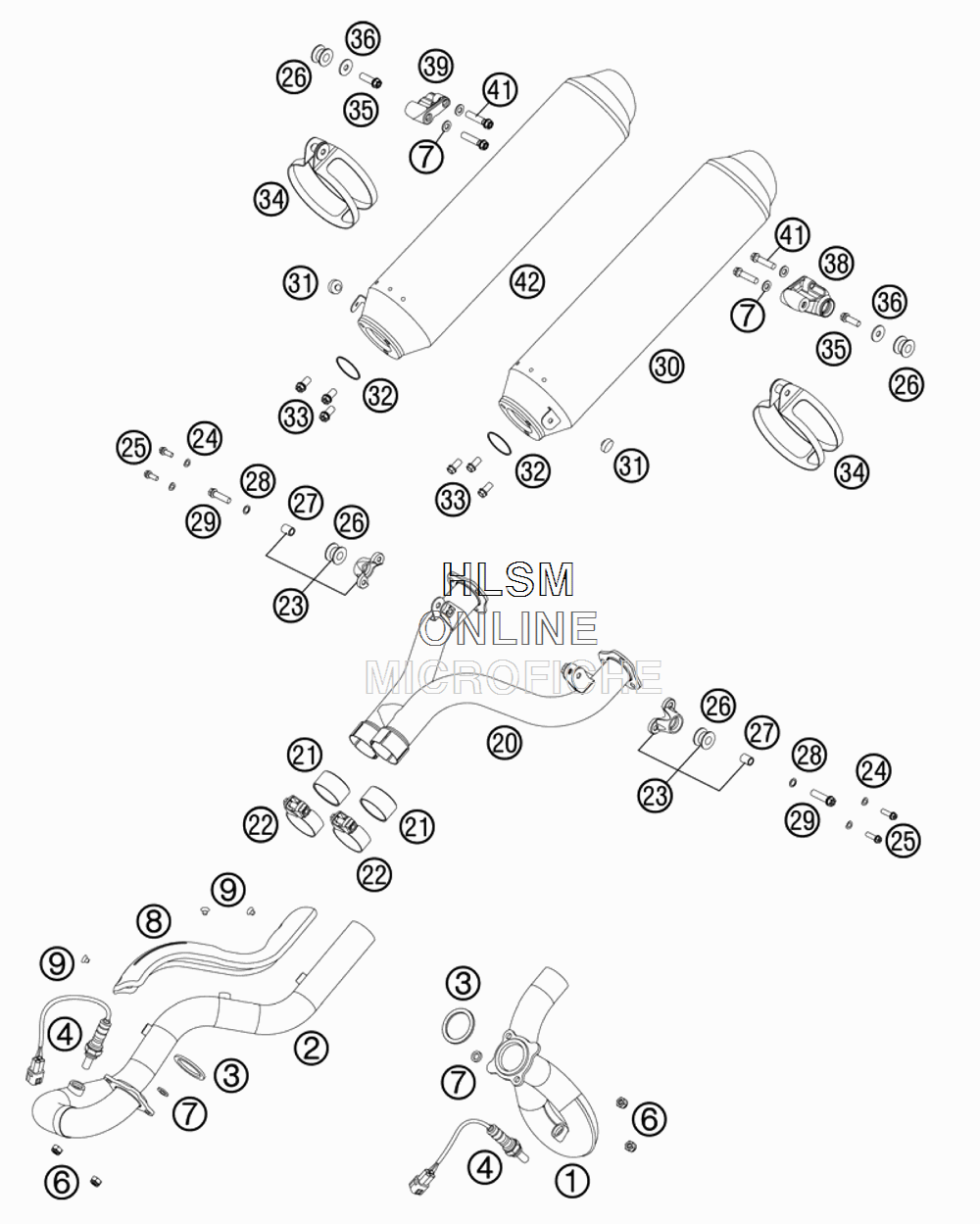

EXHAUST SYSTEM для Ktm 990 ADVRENTURE BLUE ABS - 2012 года выпуска
-
№АртикулНазвание
-
160105008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
260105007000 EXHAUST PIPE FRONTEXHAUST PIPE FRONT
-
361005005000 EXHAUST GASKETEXHAUST GASKET
-
461041090000 LAMBDA SENSORLAMBDA SENSOR
-
651010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
70125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
860005011000 THERMAL SHIELDTHERMAL SHIELD
-
90991060082 FLAT H.SCREW M6X8 DIN7991 NIROFLAT H.SCREW M6X8 DIN7991 NIRO
-
2060005048000 DISTRIBUTOR TUBE LC8DISTRIBUTOR TUBE LC8
-
2160005005001 GRAPHIT RING 42X47X25GRAPHIT RING 42X47X25
-
2260105051000 CLAMP CPL. D=49,2MMCLAMP CPL. D=49,2MM
-
2358405085044 SILENCER BRACKET CPL.SILENCER BRACKET CPL.
-
240137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
250025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2654305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
2756505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
2836003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
290025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
3060105182100 SILENCER L/S USASILENCER L/S USA
-
3154308042000 RUBBER BUFFERRUBBER BUFFER
-
3260005005002 EXHAUST GASKETEXHAUST GASKET
-
330025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
3460005095000 CLAMP FOR SILENCER CPL.CLAMP FOR SILENCER CPL.
-
350025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
360021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
386000508500001S SILENCER/HANDLE HOLDER L/SSILENCER/HANDLE HOLDER L/S
-
396000508600001S SILENCER/HANDLE HOLDER R/SSILENCER/HANDLE HOLDER R/S
-
410025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
4260105183100 SILENCER R/S USASILENCER R/S USA
