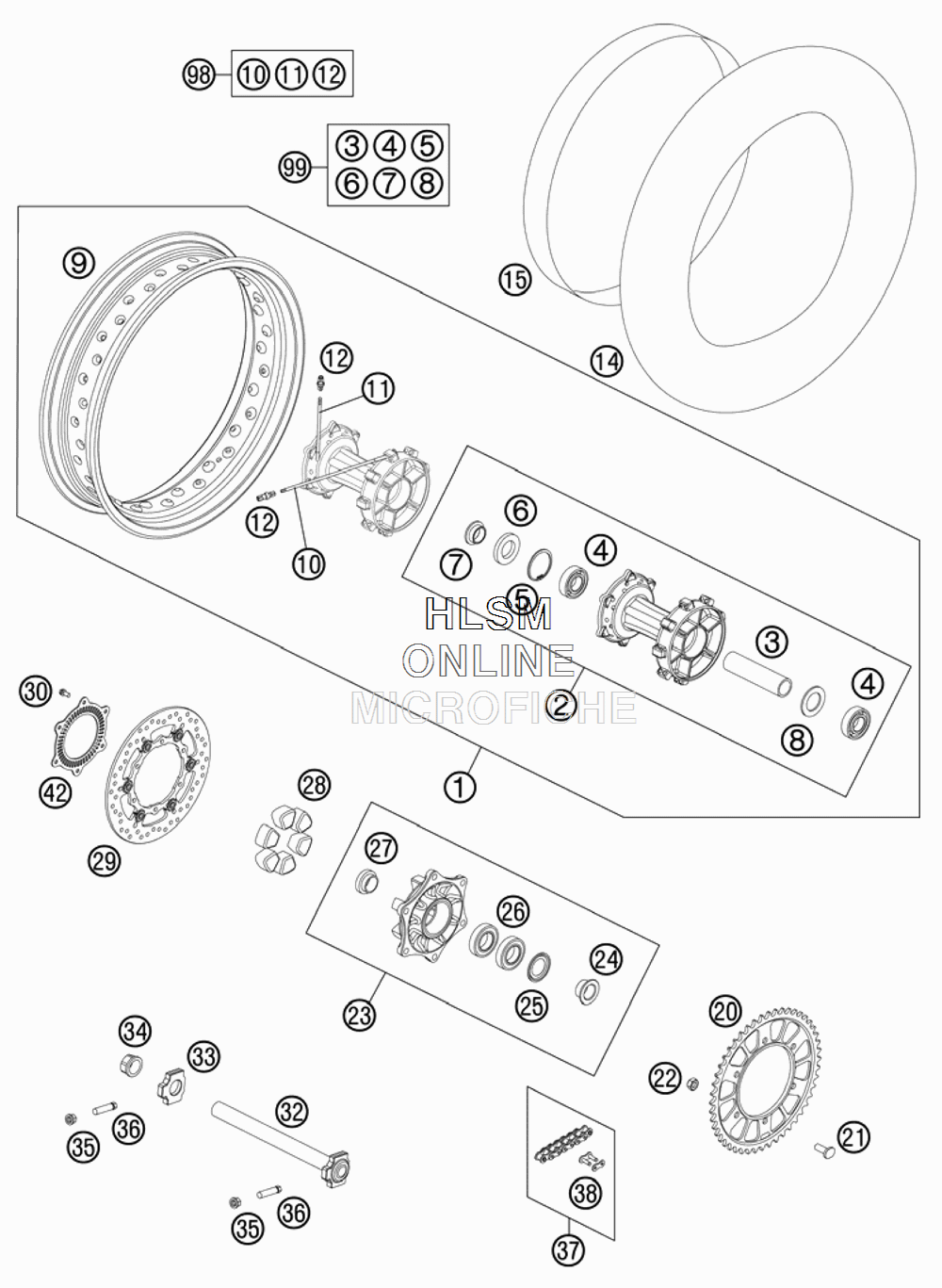

REAR WHEEL для Ktm 990 ADVRENTURE BLUE ABS - 2012 года выпуска
-
№АртикулНазвание
-
16011000124430 REAR WHEEL CPL. 4,25X18"SWREAR WHEEL CPL. 4,25X18"SW
-
26011001004433 REAR HUB CPL. BLACKREAR HUB CPL. BLACK
-
360010011000 BEAR. SPACERTUBE L=124,8MMBEAR. SPACERTUBE L=124,8MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
96001007020030 RIM 4,25X18 BLACKRIM 4,25X18 BLACK
-
1060010171000 SPOKE M5X219 19 DEGSPOKE M5X219 19 DEG
-
1160010071000 SPOKE M5X194 10 DEGSPOKE M5X194 10 DEG
-
1258309072100 SPOKE NIPPLE M5-TA 8X21MMSPOKE NIPPLE M5-TA 8X21MM
-
1450310075100 HOSE 110/100C-18HOSE 110/100C-18
-
1560010073000 RIM TAPE 18" 50/2RIM TAPE 18" 50/2
-
2060010051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
2060010051045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
2160010052000 SPROCKET SCREW M10X1,25SPROCKET SCREW M10X1,25
-
220980101253 HEXAG.NUT DIN 980V M10X1,25 SLHEXAG.NUT DIN 980V M10X1,25 SL
-
236011005004433 SPROCKET SUPPORT CPL. BLACKSPROCKET SUPPORT CPL. BLACK
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCKRUBBER DAMPING BLOCK
-
2960110060000 BRAKE DISK REAR D=240MMBRAKE DISK REAR D=240MM
-
3059009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
3260010081144 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3558414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
3650304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
3760010365118 CHAIN 525 INCL. MASTER LINKCHAIN 525 INCL. MASTER LINK
-
3860010266000 MASTER LINK FOR CHAIN 525MASTER LINK FOR CHAIN 525
-
4260142021000 SENSOR WHEEL EEL REARSENSOR WHEEL EEL REAR
-
9800050000915 SPOKE KIT REAR "18"SPOKE KIT REAR "18"
-
9960010015010 REAR WHEEL REP. KIT A DVREAR WHEEL REP. KIT A DV
