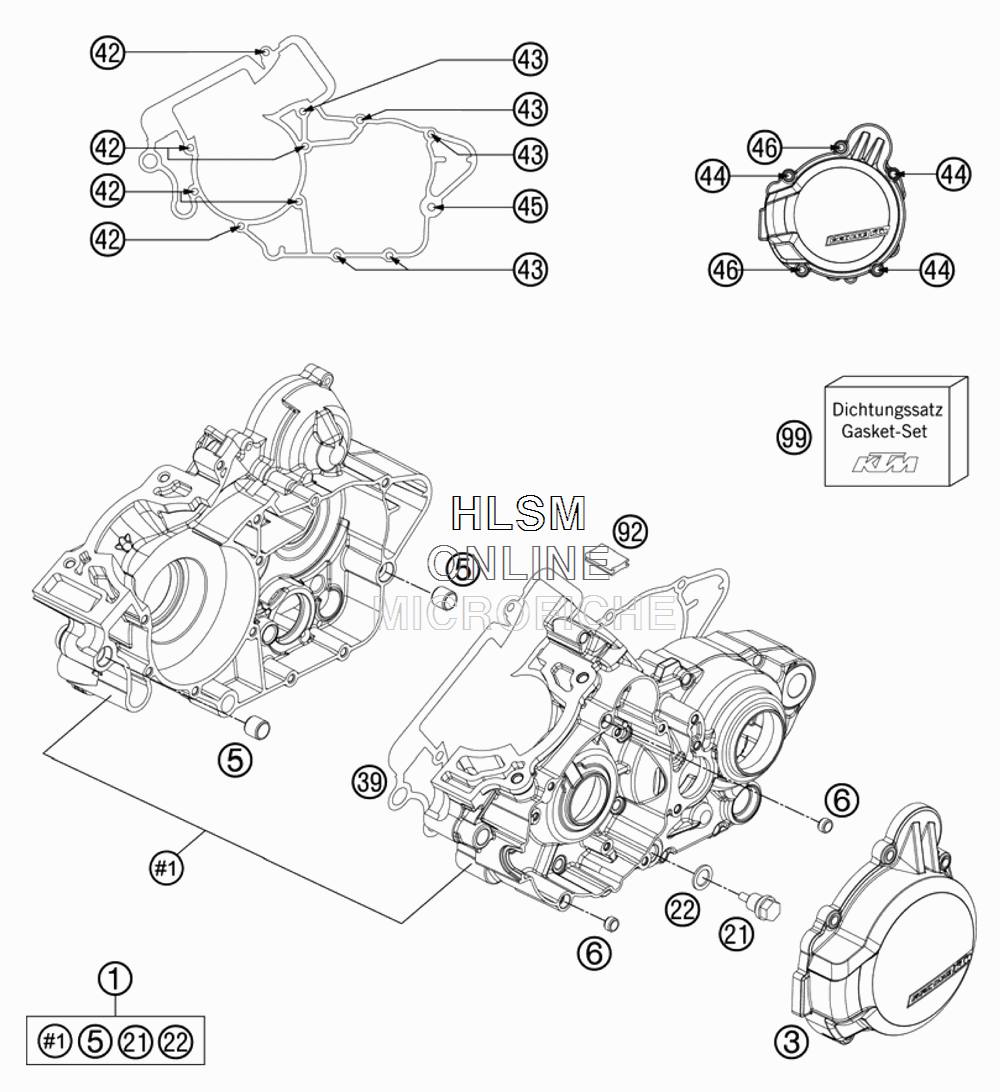

ENGINE CASE для Ktm 150 SX - 2013 года выпуска
-
№АртикулНазвание
-
152430000033 ENGINE CASE KPL.ENGINE CASE KPL.
-
352430002100 IGNITION COVER KICKSTARTIGNITION COVER KICKSTART
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
645230024000 DOWEL 9,8X7X5.5DOWEL 9,8X7X5.5
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
420025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
430025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
440025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
450025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
460025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
-
9950330099200 GASKET KITGASKET KIT
