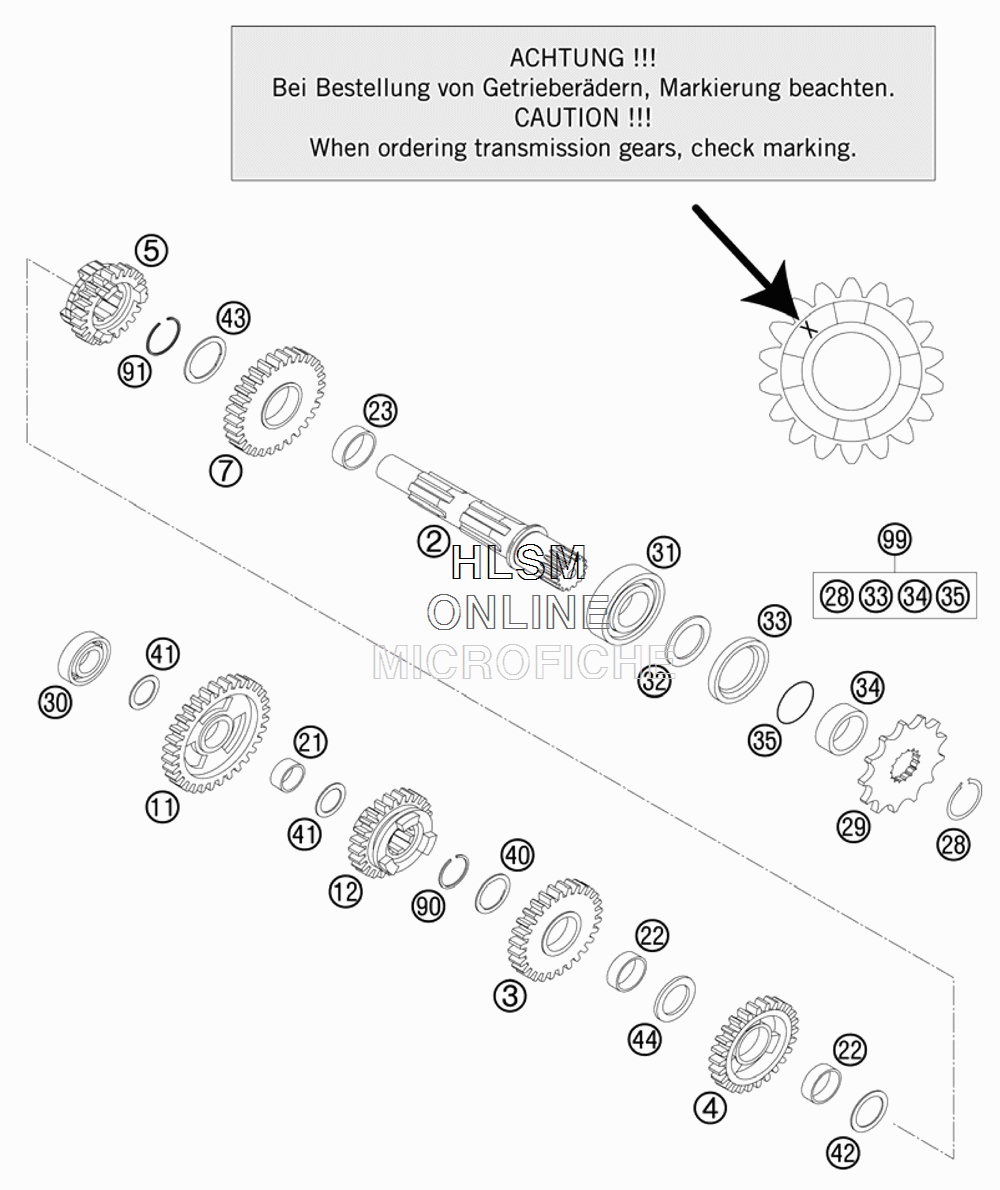

TRANSMISSION - COUNTERSHAFT для Ktm 150 SX - 2013 года выпуска

№

Артикул

Название
2

50333002000 COUNTER SHAFT

COUNTER SHAFT

45 090 ₽
3

50333003100 IDLE G.3RD G.28-T "3S28H"

IDLE G.3RD G.28-T "3S28H"

22 930 ₽
4

50333004100 IDLE GEAR 4TH G. 4S28

IDLE GEAR 4TH G. 4S28

23 340 ₽
5

50333005600 SLIDING GEAR 6TH G. 6S24

SLIDING GEAR 6TH G. 6S24

27 890 ₽
7

50333006000 IDLER G. 2ND G. 30-T "2S30"

IDLER G. 2ND G. 30-T "2S30"

24 300 ₽
11

50333011600 IDLER GEAR 1.G 32-T

IDLER GEAR 1.G 32-T

25 500 ₽
12

50333012100 SLIDING GEAR 5TH G.5S23H

SLIDING GEAR 5TH G.5S23H

27 020 ₽
21

50333021000 IDLER GEAR BUSHING 17X20X9,7 B

IDLER GEAR BUSHING 17X20X9,7 B

5 290 ₽
22

50333022000 IDLER GEAR BUSHING 22X25X8,1 C

IDLER GEAR BUSHING 22X25X8,1 C

4 880 ₽
23

50333023000 IDLER GEAR BUSHING 25X28X9,7 D

IDLER GEAR BUSHING 25X28X9,7 D

7 630 ₽
28

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

0625060031 BALL BEARING 6003 TN9 C4

BALL BEARING 6003 TN9 C4

6 310 ₽
31

0625062054 BALL BEARING 6205 C3 NTN

BALL BEARING 6205 C3 NTN

5 550 ₽
32

56033020000 STOP RING

STOP RING

1 840 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
34

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
35

0770230020 O-RING 23,00X2,00 NBR70

O-RING 23,00X2,00 NBR70

290 ₽
40

50333040000 STOP DISC 22,2X27,8X1 A

STOP DISC 22,2X27,8X1 A

1 200 ₽
41

50333041000 STOP DISC 17,2X26X1 B

STOP DISC 17,2X26X1 B

530 ₽
42

50333042000 STOP DISK 22,2X28X1 C

STOP DISK 22,2X28X1 C

1 200 ₽
43

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
44

50333044000 STOP DISC 22,2X30X2,5

STOP DISC 22,2X30X2,5

1 670 ₽
90

50133090000 LOCK RING 22X1,2

LOCK RING 22X1,2

410 ₽
91

52033090100 LOCK RING 25X1,2

LOCK RING 25X1,2

790 ₽
99

00050000943 COUNTER SHAFT REP. KIT

COUNTER SHAFT REP. KIT

7 010 ₽
