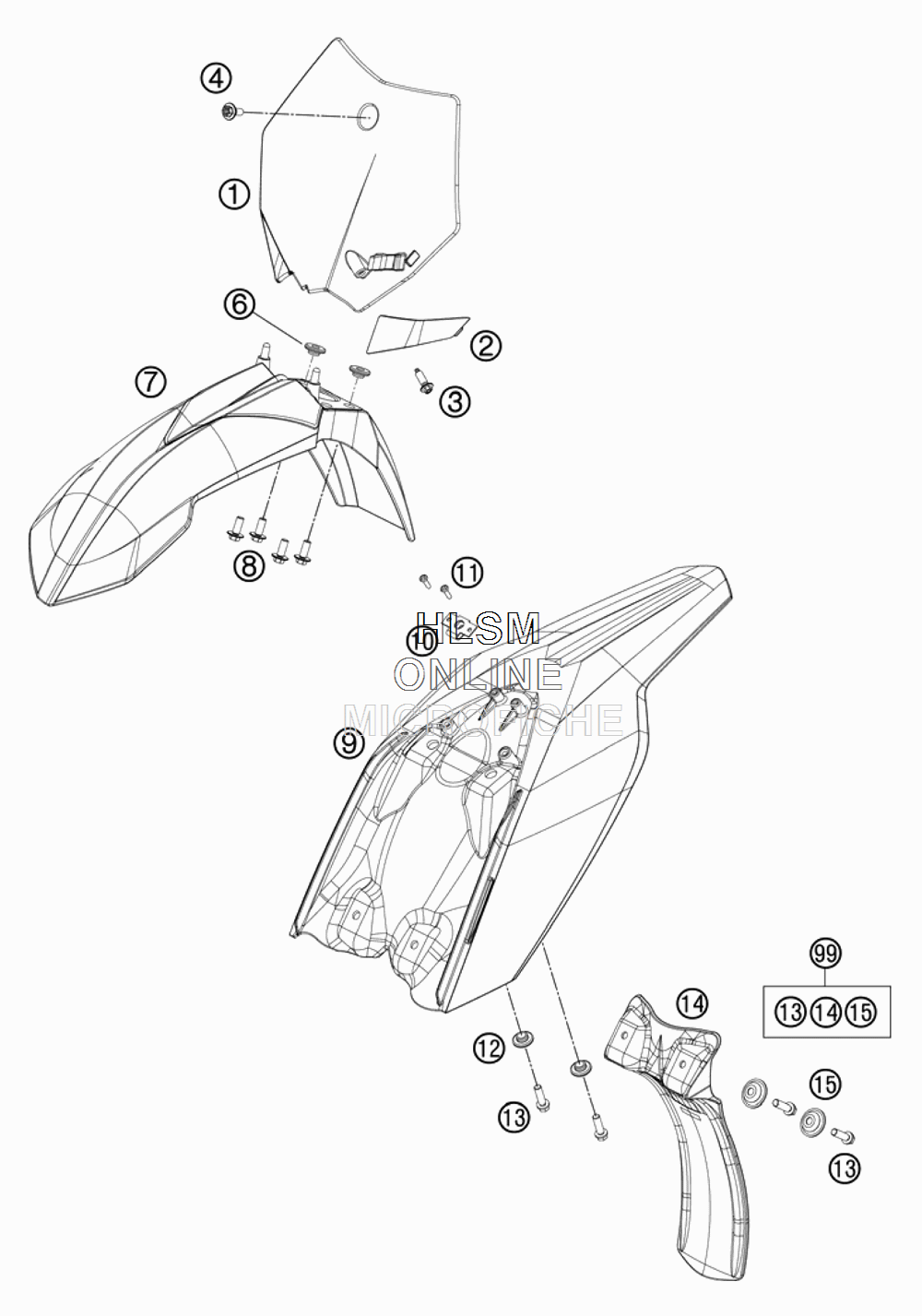

MASK FENDER для Ktm 50 MINI - 2013 года выпуска
-
№АртикулНазвание
-
14520800700028 START NUMBER PLATESTART NUMBER PLATE
-
24520802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
654808020000 SPACER BUSHINGSPACER BUSHING
-
74520801000004 FENDERFENDER
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
94520801300004 REAR PARTREAR PART
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1445206010100 SPLASH PROTECT.SPLASH PROTECT.
-
1572210079000 BUCKETBUCKET
