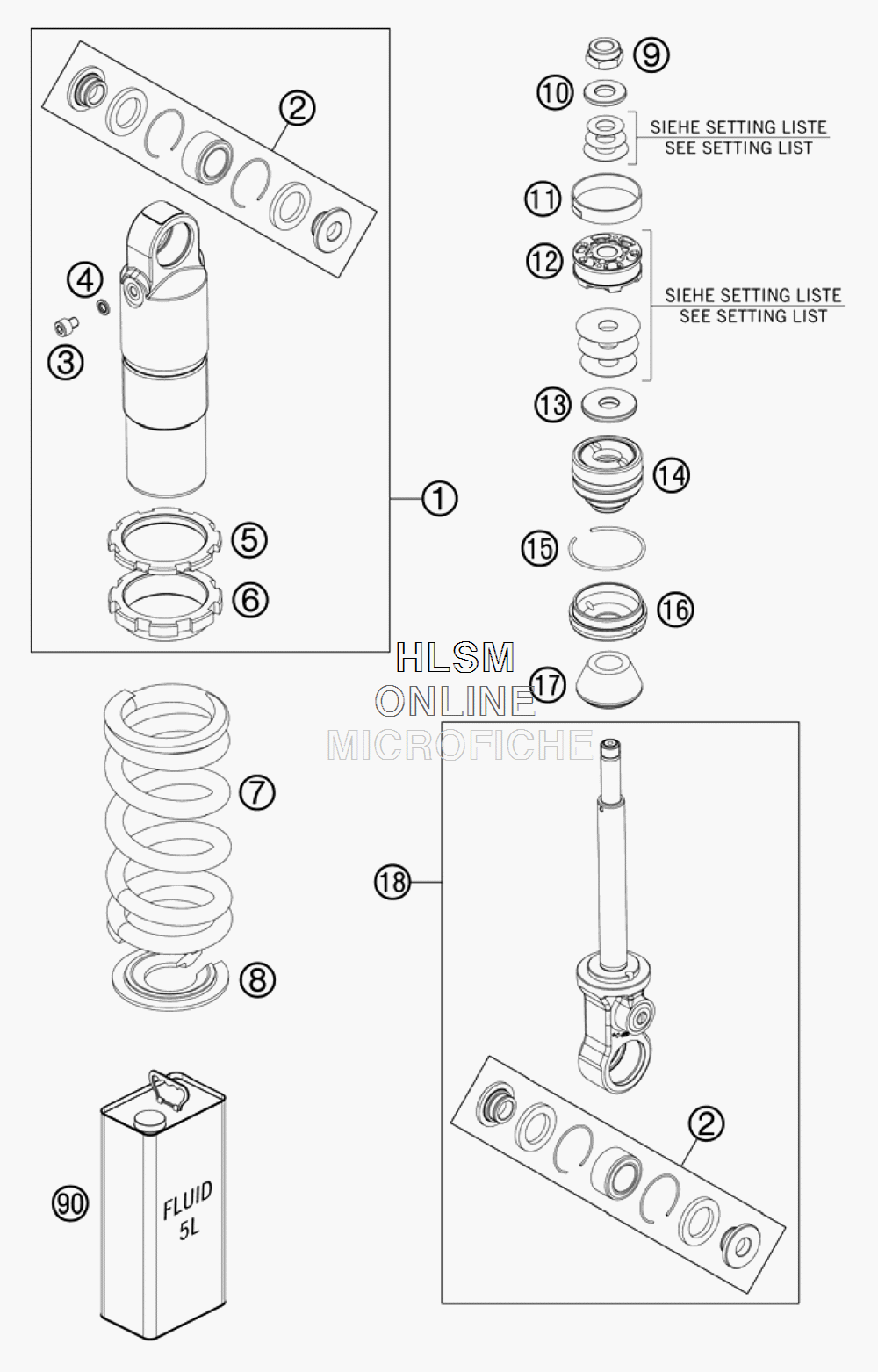

MONOSHOCK DISASSEMBLED для Ktm 50 MINI - 2013 года выпуска

№

Артикул

Название
1

36120784S MONOSHOCK TOP PART L140 CPL.

MONOSHOCK TOP PART L140 CPL.

0 ₽
2

R306 REPAIR KIT BEARINGS

REPAIR KIT BEARINGS

24 340 ₽
3

36120785 SCREW M5 C.K. RVS

SCREW M5 C.K. RVS

620 ₽
4

36120782 SEAL D5,21XD8,38X1,22

SEAL D5,21XD8,38X1,22

2 920 ₽
5

36120015 COUNTERNUT

COUNTERNUT

8 300 ₽
6

36120418 ADJUSTING NUT

ADJUSTING NUT

12 330 ₽
7

93010184S SPRING 65N/MM 65-120 120MM ORANGE

SPRING 65N/MM 65-120 120MM ORANGE

40 810 ₽
7

93010185S SPRING 75N/MM 75-120 120MM ORANGE

SPRING 75N/MM 75-120 120MM ORANGE

40 810 ₽
7

93010186S SPRING 85N/MM 85-120 120MM ORANGE

SPRING 85N/MM 85-120 120MM ORANGE

40 810 ₽
8

36120461 SPRING RETAINER D=39

SPRING RETAINER D=39

12 360 ₽
9

36120052 PISTON ROD NUT M10X1

PISTON ROD NUT M10X1

2 620 ₽
10

36120604 SHIM D10XD22X2,5

SHIM D10XD22X2,5

5 620 ₽
11

36120040 PISTON RING 8X1X108,3

PISTON RING 8X1X108,3

1 590 ₽
12

36120071 * PISTON 6+6XD5.5/3.5

* PISTON 6+6XD5.5/3.5

16 660 ₽
13

36120786 REBOUND DISC H=10 D=28,5

REBOUND DISC H=10 D=28,5

7 840 ₽
14

36120787S ADAPTOR 36MM H26,6 CPL.

ADAPTOR 36MM H26,6 CPL.

20 730 ₽
15

40540015 CIRCLIP 38X1,5

CIRCLIP 38X1,5

590 ₽
16

36120780 RESERVOIR CAP D=36 H=9,5

RESERVOIR CAP D=36 H=9,5

5 580 ₽
17

36120427 BUMP RUBBER WP65 L=20

BUMP RUBBER WP65 L=20

9 990 ₽
18

36120777S1 MONOSH. BOTTOM PART L86 CPL.

MONOSH. BOTTOM PART L86 CPL.

93 040 ₽
90

50180751S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
