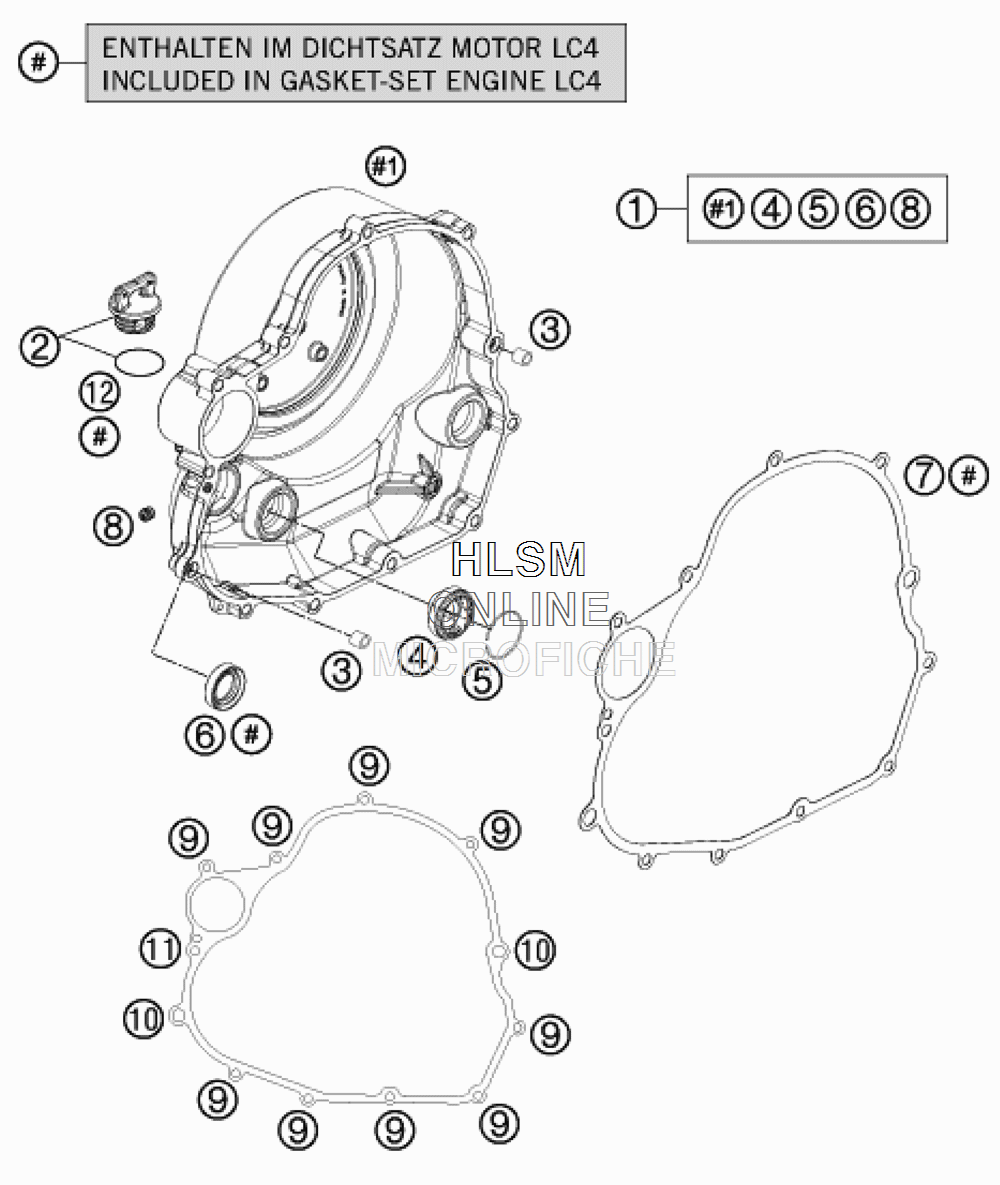

CLUTCH COVER для Ktm 690 DUKE WHITE - 2013 года выпуска
-
№АртикулНазвание
-
175030001044 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
349030090000 DOWEL 9.8X7X10DOWEL 9.8X7X10
-
459030019100 OIL LEVEL GLASSOIL LEVEL GLASS
-
561030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
60760172871 SHAFT SEAL RING 17X28X7B VITONSHAFT SEAL RING 17X28X7B VITON
-
775030025000 CLUTCH CASE GASKETCLUTCH CASE GASKET
-
859030296000 SCREW PLUGSCREW PLUG
-
90025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
100025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
110025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
120770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
