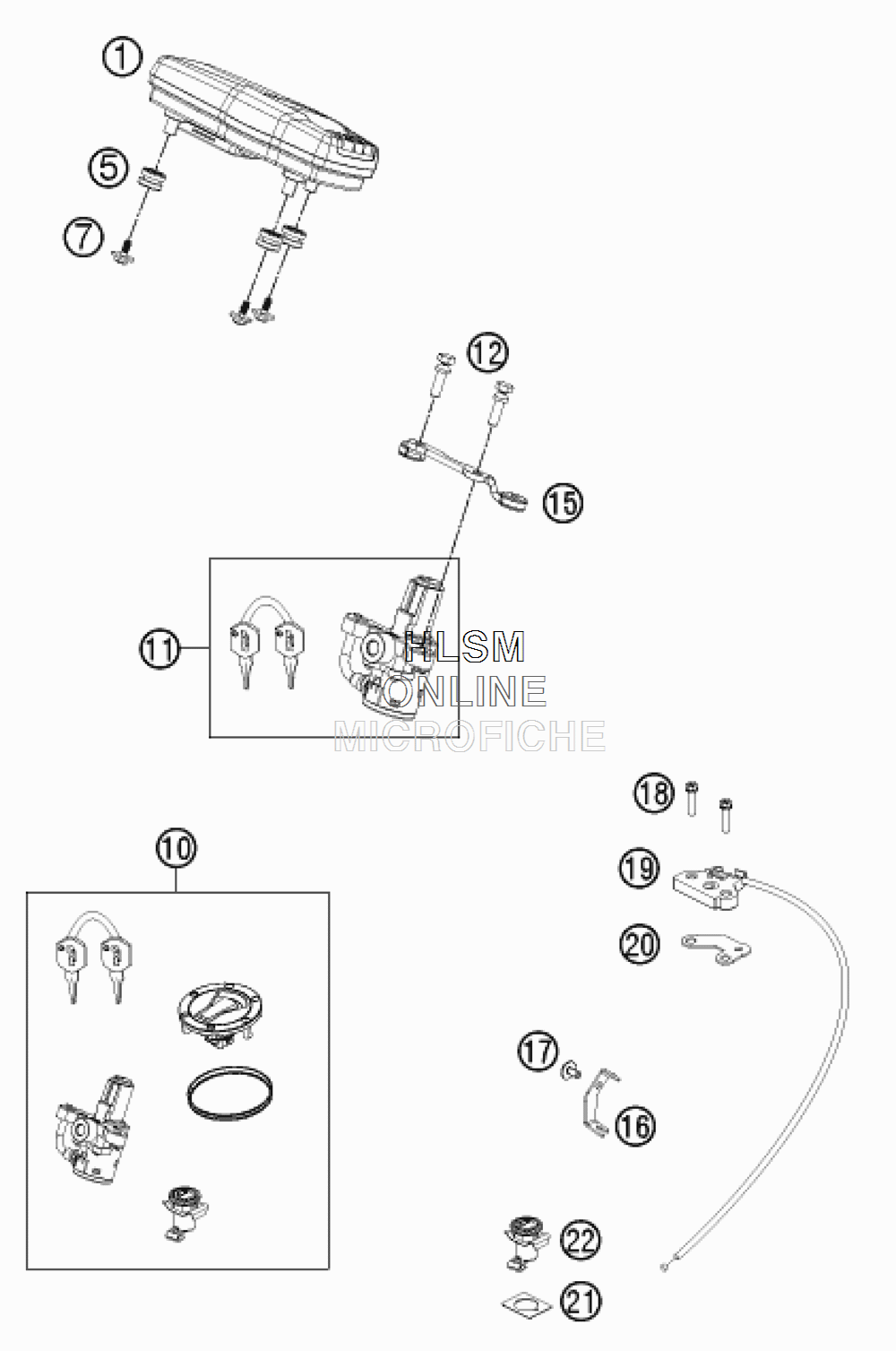

INSTRUMENTS / LOCK SYSTEM для Ktm 690 DUKE WHITE - 2013 года выпуска
-
№АртикулНазвание
-
176014069100 SPEEDOMETERSPEEDOMETER
-
576014069051 RUBBER SLEEVE 7X10,8X16MMRUBBER SLEEVE 7X10,8X16MM
-
70081645121 EJOTDEL TAPTS CREW 45X12-ZEJOTDEL TAPTS CREW 45X12-Z
-
1076011066044 LOCKSETLOCKSET
-
1176011066000 IGNITION W/ STEERING LOCKIGNITION W/ STEERING LOCK
-
1276011064000 TAMPER PROOF SCREW M6IGN.LOCKTAMPER PROOF SCREW M6IGN.LOCK
-
1576011066095 ALU PLATE IGNITION LOCK COVERALU PLATE IGNITION LOCK COVER
-
1676007051000 SEAT LOCK BRACKETSEAT LOCK BRACKET
-
170024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
180025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1976007050050 SEAT LOCKING MECHANISMSEAT LOCKING MECHANISM
-
2076007052000 BRACKET SEAT LOCKING MECHANISMBRACKET SEAT LOCKING MECHANISM
-
2176007053000 ANTI-ROTATION ELEMENT SEATLOCKANTI-ROTATION ELEMENT SEATLOCK
-
2276007050000 SEAT LOCKSEAT LOCK
