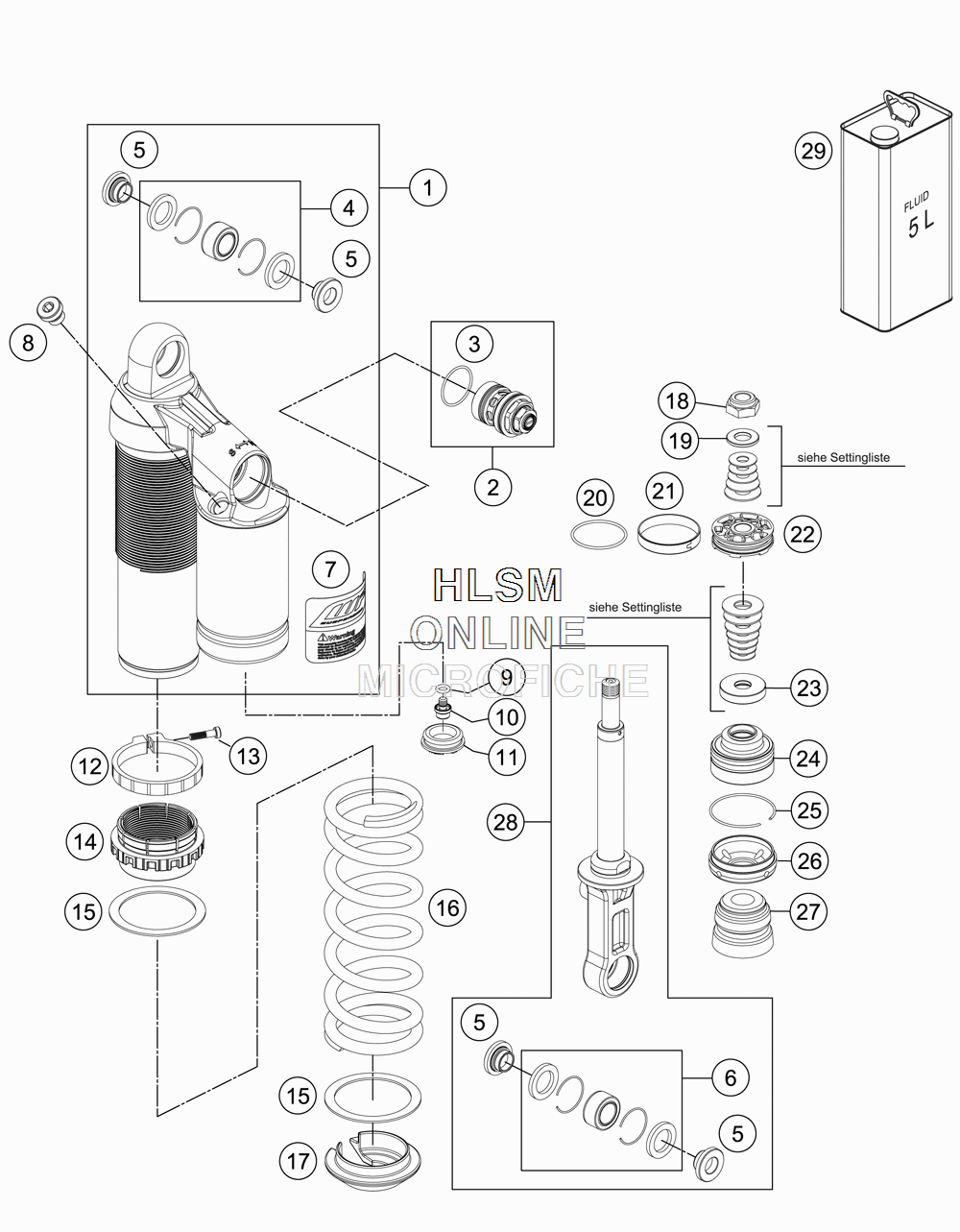

MONOSHOCK DISASSEMBLED для Ktm 1290 SUPER DUKE ABS - 2014 года выпуска

№

Артикул

Название
1

46181028S1 MONOSHOCK UPPER PART

MONOSHOCK UPPER PART

138 980 ₽
2

50180213S10 DCC-COMPR.DAMP.CONTROL CPL.

DCC-COMPR.DAMP.CONTROL CPL.

32 570 ₽
3

50180217 O-RING 27X1,5 VITON

O-RING 27X1,5 VITON

250 ₽
4

R12012 REP. KIT BEAR./SEAL UP.

REP. KIT BEAR./SEAL UP.

16 860 ₽
5

46181138 BUSHING KGW 1525 14X32

BUSHING KGW 1525 14X32

3 870 ₽
6

R15009 BEARING KIT KGW 1525 990 DUKE

BEARING KIT KGW 1525 990 DUKE

16 860 ₽
7

52000087 STICKER WP MONOSHOCK

STICKER WP MONOSHOCK

2 840 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
9

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
10

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
11

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
12

46181014 TENSIONING RING D64 H10

TENSIONING RING D64 H10

5 930 ₽
13

14460042 %ALLENHEAD SCREW M5 L=20 STAIN

%ALLENHEAD SCREW M5 L=20 STAIN

240 ₽
14

46181013 ADJUSTING NUT D46 PLASTIC

ADJUSTING NUT D46 PLASTIC

3 470 ₽
15

50180410 INTERM.RING D=58

INTERM.RING D=58

1 050 ₽
16

91010078S SPRING (59) 170-185 D 14 05

SPRING (59) 170-185 D 14 05

40 810 ₽
17

46180396 SPRING RETAINER H=15 D=28

SPRING RETAINER H=15 D=28

8 790 ₽
18

46180597 PISTON ROD NUT

PISTON ROD NUT

5 870 ₽
19

46811258 RING 12X24X2,5

RING 12X24X2,5

6 490 ₽
20

46810035 O-RING VITON 37,82X1,78

O-RING VITON 37,82X1,78

280 ₽
21

46810361 PISTON RING

PISTON RING

2 570 ₽
22

46810560 PISTON 6+6D7

PISTON 6+6D7

37 240 ₽
23

46181117 REBOUND WASHER 34/12 H5

REBOUND WASHER 34/12 H5

5 840 ₽
24

46180669S ADAPTOR CPL. D=46 H=28 07

ADAPTOR CPL. D=46 H=28 07

20 230 ₽
25

46810010 CIRCLIP 49X1,5

CIRCLIP 49X1,5

530 ₽
26

46181031 CAP D46 L=18MM

CAP D46 L=18MM

5 700 ₽
27

46180365 BUMP RUBBER WP60 H=30 D=18-26

BUMP RUBBER WP60 H=30 D=18-26

15 340 ₽
28

46180654S15 MONOSHOCK LOWER PART

MONOSHOCK LOWER PART

146 810 ₽
29

50180751S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
