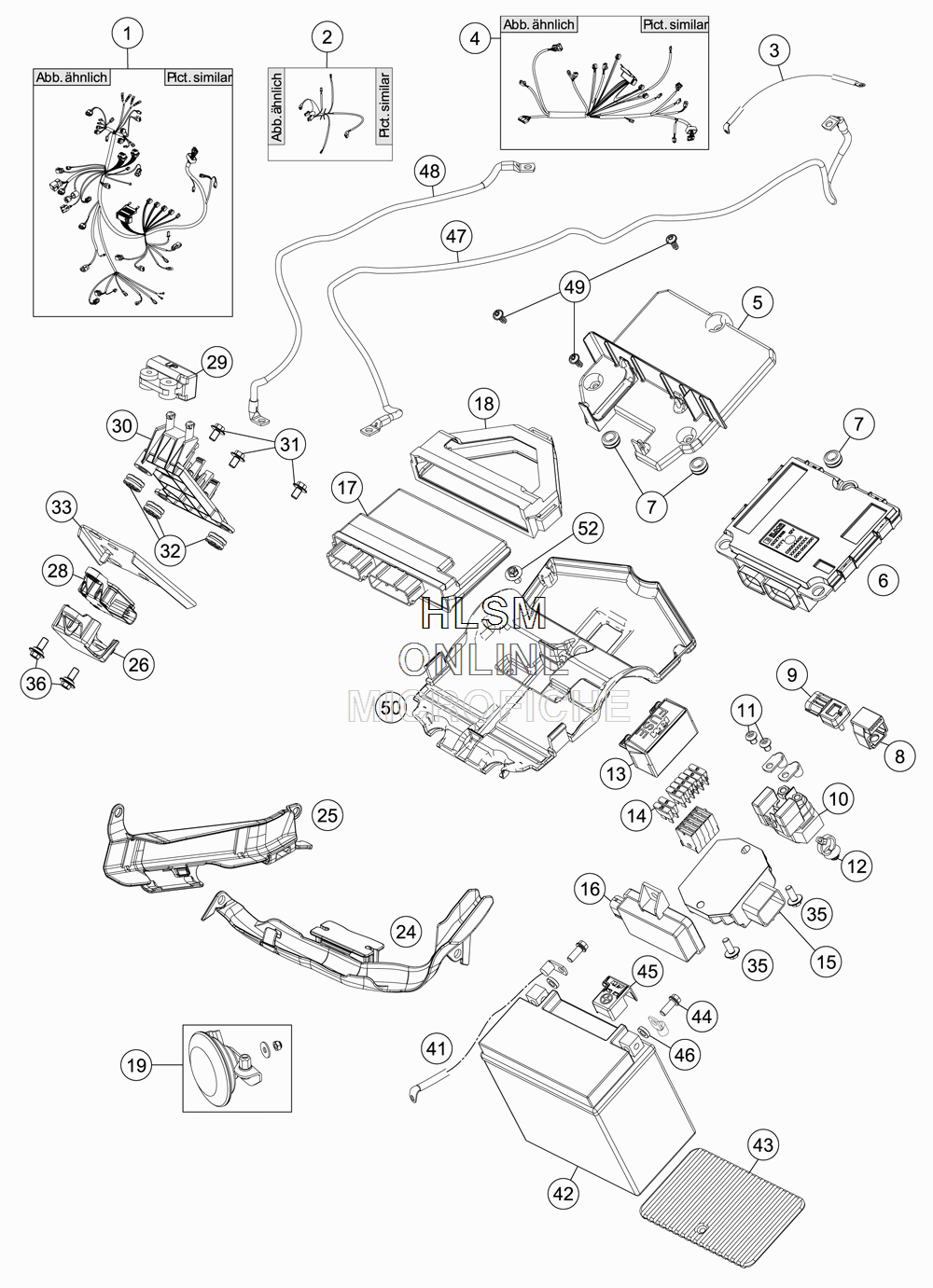

WIRING HARNESS для Ktm 1290 SUPER DUKE ABS - 2014 года выпуска
-
№АртикулНазвание
-
161311075033 MAIN WIRING HARNESS CPL.MAIN WIRING HARNESS CPL.
-
260311085000 WIRING ENGINEWIRING ENGINE
-
361311059050 BATTERY CABLEBATTERY CABLE
-
461311076000 REAR WIRING HARNESSREAR WIRING HARNESS
-
561308018060 COVER MCUCOVER MCU
-
660311033200 ENGINE CONTROL UNIT 2.1ENGINE CONTROL UNIT 2.1
-
760006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
861041085100 PRESSURE SENSORPRESSURE SENSOR
-
961041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
1076211058000 STARTER RELAYSTARTER RELAY
-
110902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1269011092000 CABLE TIE W. SOCKET D=6,5CABLE TIE W. SOCKET D=6,5
-
1361311087050 RUBBER CASING FUSE BOXRUBBER CASING FUSE BOX
-
1458011109110 FUSE 10 AFUSE 10 A
-
1458011109130 FUSE 30 AFUSE 30 A
-
1560311034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
1660312032000 RECEIVER AIR PRESSURE SENSORRECEIVER AIR PRESSURE SENSOR
-
1761341031000 TIMING CHARGER EFITIMING CHARGER EFI
-
1860341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
1961011060000 DC HORN CPL.DC HORN CPL.
-
2460311046000 CABLE CHANNEL L/SCABLE CHANNEL L/S
-
2560311047000 CABLE CHANNEL R/SCABLE CHANNEL R/S
-
2661342090050 COVER SENSOR BOXCOVER SENSOR BOX
-
2860342090000 SLOPING POSITIONS SENSORSLOPING POSITIONS SENSOR
-
2961041088000 ROLLOVER SENSORROLLOVER SENSOR
-
3061311083000 PLUG BRACKETPLUG BRACKET
-
310024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
3262142041000 DAMP. COMPONENT ABS MODULDAMP. COMPONENT ABS MODUL
-
3361342090040 SUPPORT SLOPING POS. SENSORSUPPORT SLOPING POS. SENSOR
-
350025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3683008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
4161311098000 GROUND CABLE BATT.-FRAME 16MMGROUND CABLE BATT.-FRAME 16MM
-
4261311053000 BATTERY YUASA YTX14-BSBATTERY YUASA YTX14-BS
-
4361311053050 RUBBER PLATE FOR BATTERYRUBBER PLATE FOR BATTERY
-
440025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
4562111059060 COVER POSITIVE POLECOVER POSITIVE POLE
-
4612011016000 WASHER 6 X 12 X 3WASHER 6 X 12 X 3
-
4761311059000 STARTER CABLE 16MMSTARTER CABLE 16MM
-
4861311097000 GROUND CABLE ENGINE-FRAME 16MMGROUND CABLE ENGINE-FRAME 16MM
-
490081050141 EJOT PT SCREW 50X14 WN 1451EJOT PT SCREW 50X14 WN 1451
-
5061311055000 SUPPORT ECUSUPPORT ECU
-
5283008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
