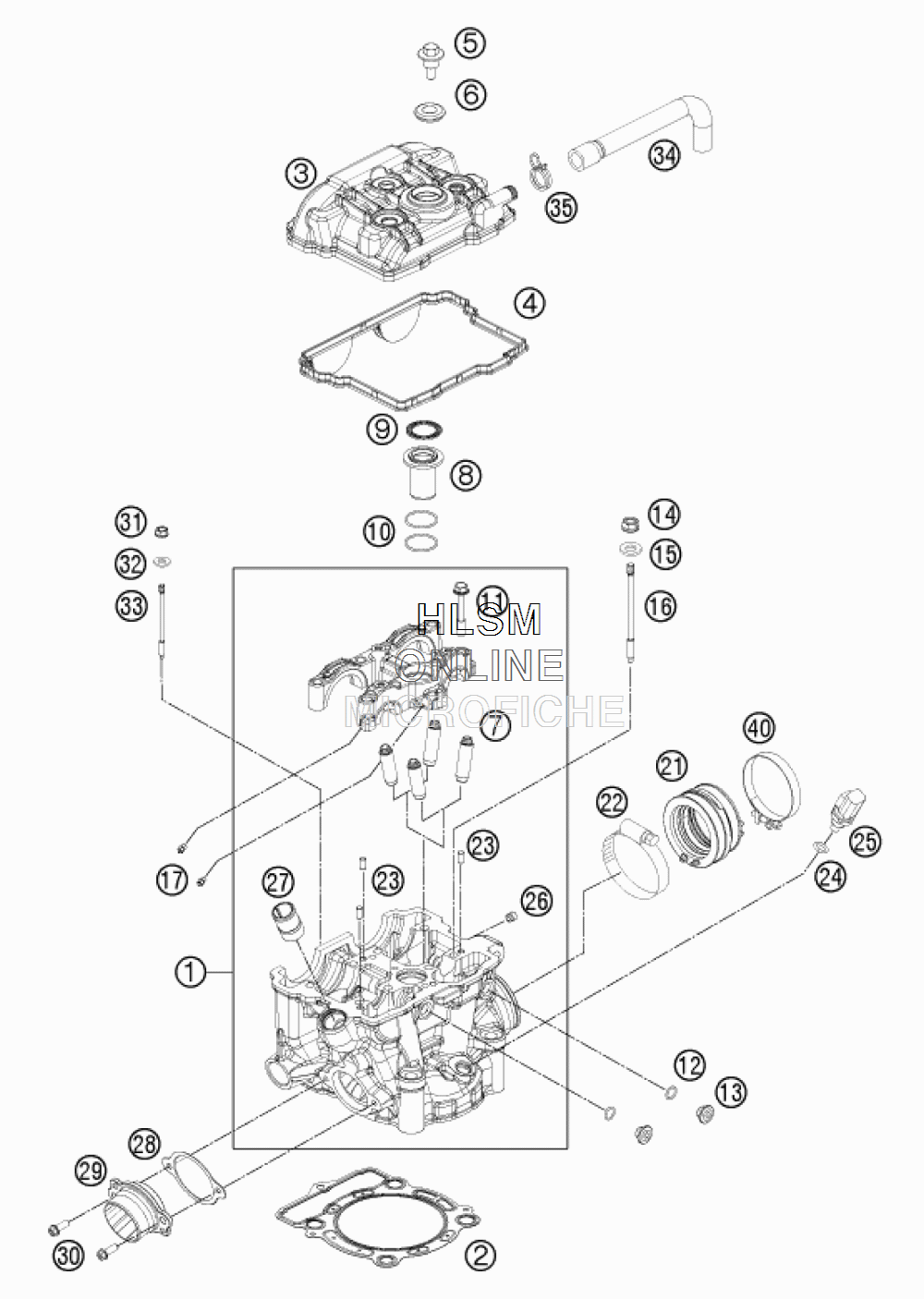

CYLINDER HEAD для Ktm 350 XCF-W SIX DAYS - 2014 года выпуска
-
№АртикулНазвание
-
177236020044 CYLINDER HEAD CPL.CYLINDER HEAD CPL.
-
277230036000 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
37723605200033 VALVE COVERVALVE COVER
-
477236053000 VALVE COVER GASKETVALVE COVER GASKET
-
577336054150 VALVE COVER SCREWVALVE COVER SCREW
-
677036054050 RUBBER GASKET FOR SCREWRUBBER GASKET FOR SCREW
-
777236025001 VALVE GUIDE INTAKTVALVE GUIDE INTAKT
-
877236075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
977336053050 GASKET SPARK-PLUG SHAFTGASKET SPARK-PLUG SHAFT
-
100770260015 O-RING 1,5X26O-RING 1,5X26
-
1177330067142 HH COLLAR SCREW M7X1X42HH COLLAR SCREW M7X1X42
-
1207700900151 O-RING 9X1,5 V75 SH DIN 3771O-RING 9X1,5 V75 SH DIN 3771
-
1377236080000 SCREW PLUGSCREW PLUG
-
1477336088210 COLLAR NUT M10X1,25 SW13COLLAR NUT M10X1,25 SW13
-
1577336089010 WASHER 19X10,5X2,5WASHER 19X10,5X2,5
-
1677230044000 STUD SCREW M10X1,25STUD SCREW M10X1,25
-
1760030063050 OIL JET 50OIL JET 50
-
2177236044000 CONNECTION RUBBER EFICONNECTION RUBBER EFI
-
2261036047000 HOSE CLAMP GEMI 63MMHOSE CLAMP GEMI 63MM
-
230402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
240770100020 O-RING,00X2,00 SILCONEO-RING,00X2,00 SILCONE
-
2560011252000 TEMPERAT.-SENSOR WATER LC8TEMPERAT.-SENSOR WATER LC8
-
2659030296000 SCREW PLUGSCREW PLUG
-
2758030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
2877236041000 GASKET EXHAUST FLANGEGASKET EXHAUST FLANGE
-
2977236139000 ENGINEFLANGEENGINEFLANGE
-
300025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
3177336088106 COLLAR NUT M6X1 SW8COLLAR NUT M6X1 SW8
-
320125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3377330043000 STUD SCREW M6STUD SCREW M6
-
3477538087000 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
3558431082100 YDNAC-CLAMP173 (16MM) 98YDNAC-CLAMP173 (16MM) 98
-
4077236048000 HOSE CLAMP GEMI 58MMHOSE CLAMP GEMI 58MM
