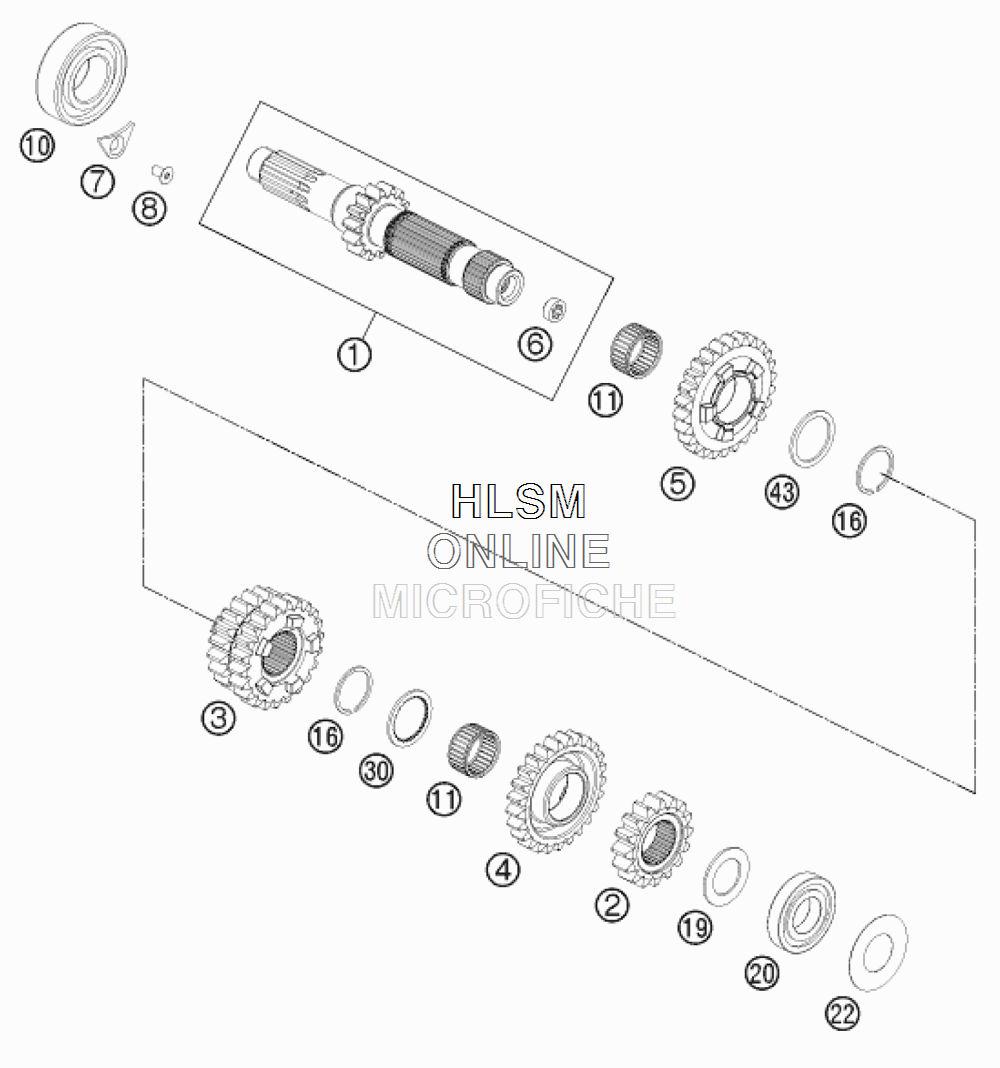

TRANSMISSION - MAIN SHAFT для Ktm 350 XCF-W SIX DAYS - 2014 года выпуска
-
№АртикулНазвание
-
177233101000 MAIN SHAFT CPL. 14 T.MAIN SHAFT CPL. 14 T.
-
254833202000 SOLID GEARSOLID GEAR
-
354833203000 SLIDING GEAR 3./4.GANG,Z=20/22SLIDING GEAR 3./4.GANG,Z=20/22
-
454833205000 IDLER GEAR 5.G, Z =25IDLER GEAR 5.G, Z =25
-
554833206000 IDLER GEAR 6. G, Z=26IDLER GEAR 6. G, Z=26
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050106 INT. TORX FLAT HEAD M5X10.9INT. TORX FLAT HEAD M5X10.9
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
1977233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
3054833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
4354833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
