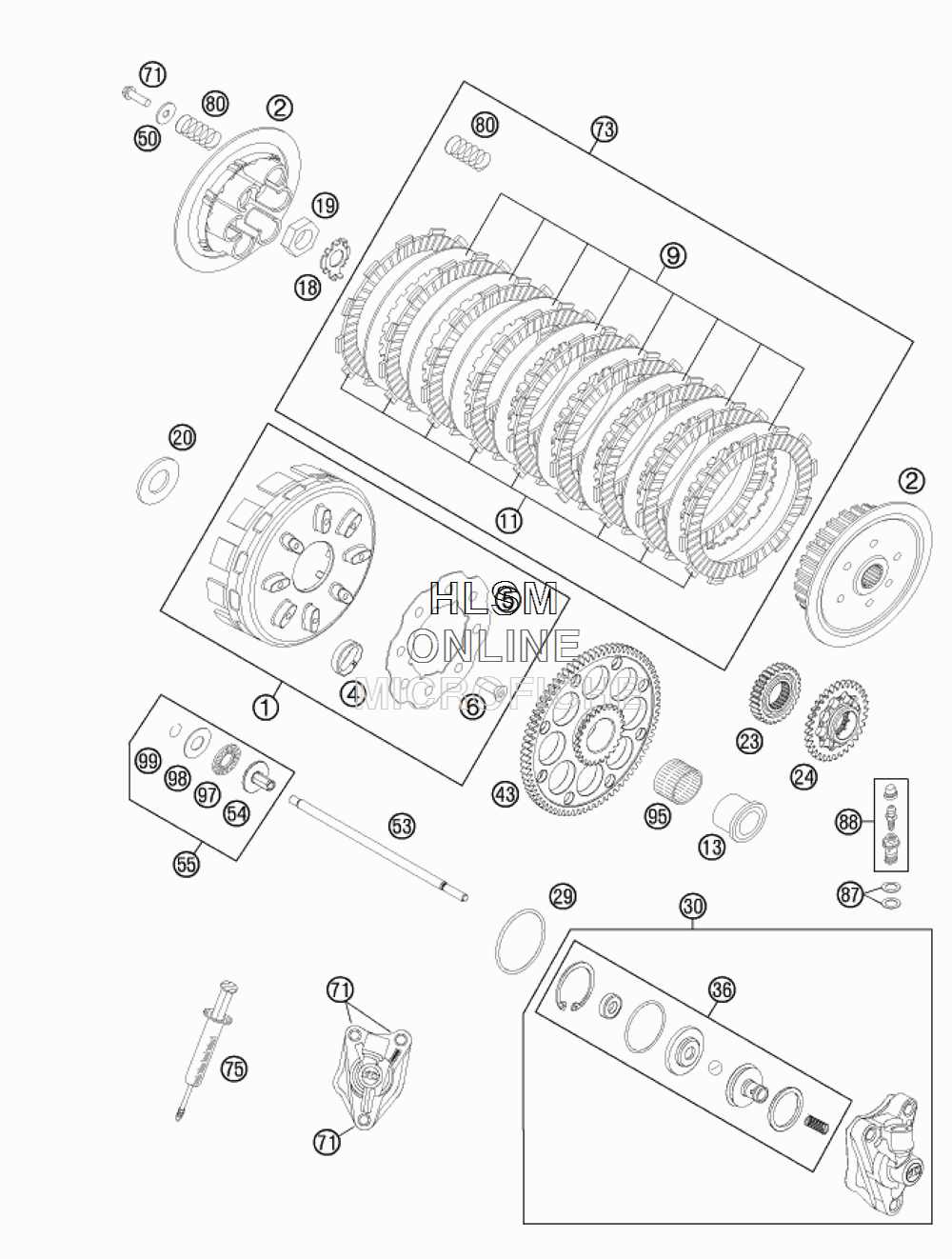

CLUTCH для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
1SXS08450030 OUTER CLUTCH HUB MILLED HINSONOUTER CLUTCH HUB MILLED HINSON
-
2SXS09450151 INNER CLUTCH HUB + PRESSURE PLINNER CLUTCH HUB + PRESSURE PL
-
4SXS08450034 DAMPING RUBBERDAMPING RUBBER
-
5SXS08450032 RETAINING PLATERETAINING PLATE
-
6SXS08450033 FLAT HEAD SCREWFLAT HEAD SCREW
-
977332010000 INTERMEDI. DISC STEELINTERMEDI. DISC STEEL
-
1177332011000 LINING DISC 2,7MMLINING DISC 2,7MM
-
1377332015100 INNER RINGINNER RING
-
1877332018000 RETAINING PLATERETAINING PLATE
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2077332017100 WASHER 21,7X38X4WASHER 21,7X38X4
-
2377332023129 PRIMARY GEARPRIMARY GEAR
-
2477330055110 DRIVE WHEEL AGZR KS Z=32DRIVE WHEEL AGZR KS Z=32
-
290770380020 O-RING 38,00X2,00 NBR 70 SHO-RING 38,00X2,00 NBR 70 SH
-
3077332061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
3677332066000 PISTON CPL.PISTON CPL.
-
4377332024074 * CLUTCH WHEEL T=74* CLUTCH WHEEL T=74
-
5050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
5377332054100 PUSH RODPUSH ROD
-
5477332057100 PRESSURE PIECEPRESSURE PIECE
-
5577332057144 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
710025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
7377332011010 CLUTCH-KIT 450/505 SX-F 07-13CLUTCH-KIT 450/505 SX-F 07-13
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8077332005000 CLUTCH SPRINGCLUTCH SPRING
-
8742013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
8862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
