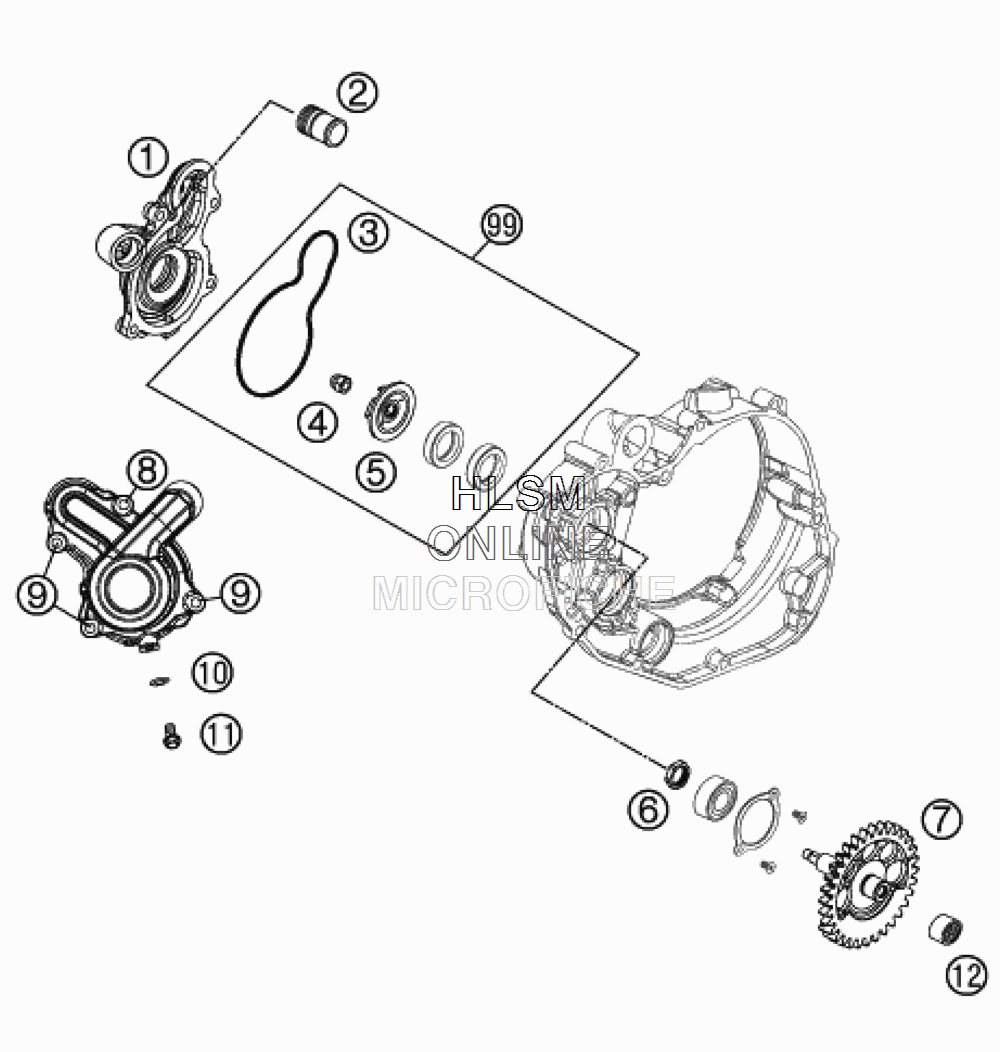

WATER PUMP для Ktm 450 RR - 2014 года выпуска
-
№АртикулНазвание
-
18353505200015 WATER-PUMP COVERWATER-PUMP COVER
-
258030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
377335053000 WATER-PUMP GASKETWATER-PUMP GASKET
-
461230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
577335055100 WATER-PUMP WHEELWATER-PUMP WHEEL
-
677330056050 NUT M14 X 1 FOR BALANCER .NUT M14 X 1 FOR BALANCER .
-
777330056200 BALANCER GEAR KS 32-TBALANCER GEAR KS 32-T
-
80025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
90025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
100603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
110025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
1277335050050 NEEDLE BEARING RNA 4900NEEDLE BEARING RNA 4900
-
9977335055010 WATER PUMP REP. KITWATER PUMP REP. KIT
