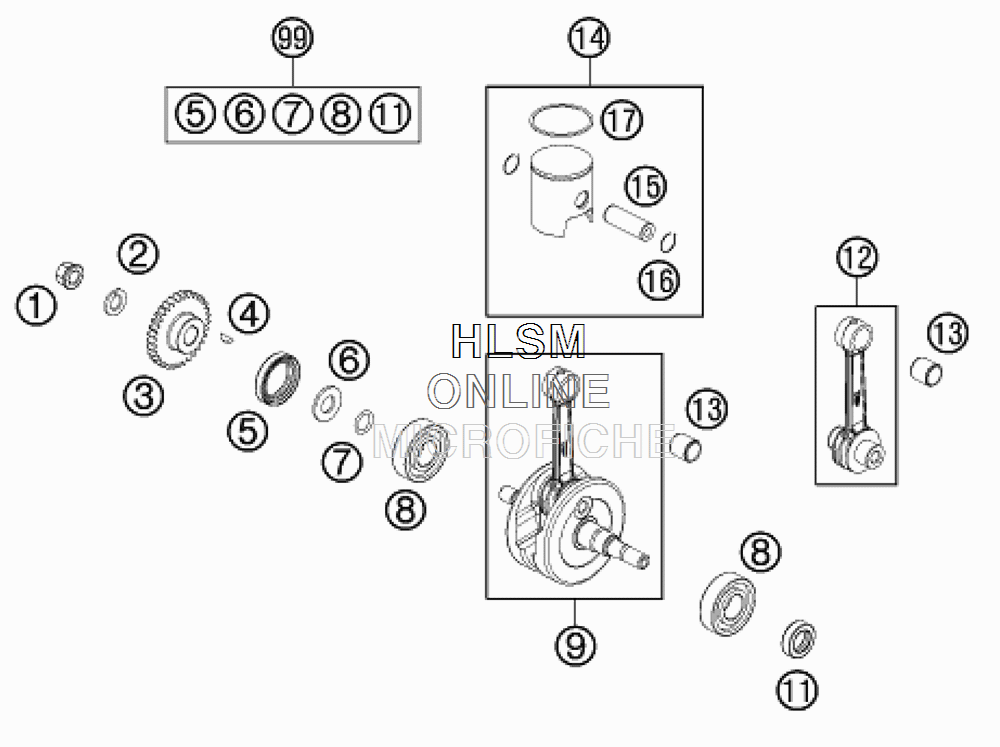

CRANKSHAFT PISTON для Ktm 50 SX - 2014 года выпуска
-
№АртикулНазвание
-
158414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
245230072000 LOCKING RING VSK 10LOCKING RING VSK 10
-
345232023033 PRIMARY DRIVE 33TPRIMARY DRIVE 33T
-
40888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
50760263561 SHAFT SEAL RING 26X35X6BSL NBSHAFT SEAL RING 26X35X6BSL NB
-
645230016000 SPACER WASHER - CRANKSHAFTSPACER WASHER - CRANKSHAFT
-
70770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
80625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
945230018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
110760152472 SHAFT SEAL RING 15X24X7 A-DUOSHAFT SEAL RING 15X24X7 A-DUO
-
1245230015000 PISTON ROD REP-SETPISTON ROD REP-SET
-
1345130034000 NEEDLE BEAR.PISTONPIN 12X15X15NEEDLE BEAR.PISTONPIN 12X15X15
-
1445230007000I PISTON CPL. IPISTON CPL. I
-
1445230007000II PISTON CPL. IIPISTON CPL. II
-
1545230033000 PISTON BOLTPISTON BOLT
-
1645230074000 CIRCLIPCIRCLIP
-
1745230030000 PISTONRINGPISTONRING
-
9900050002313 CRANKSHAFT REP. KITCRANKSHAFT REP. KIT
