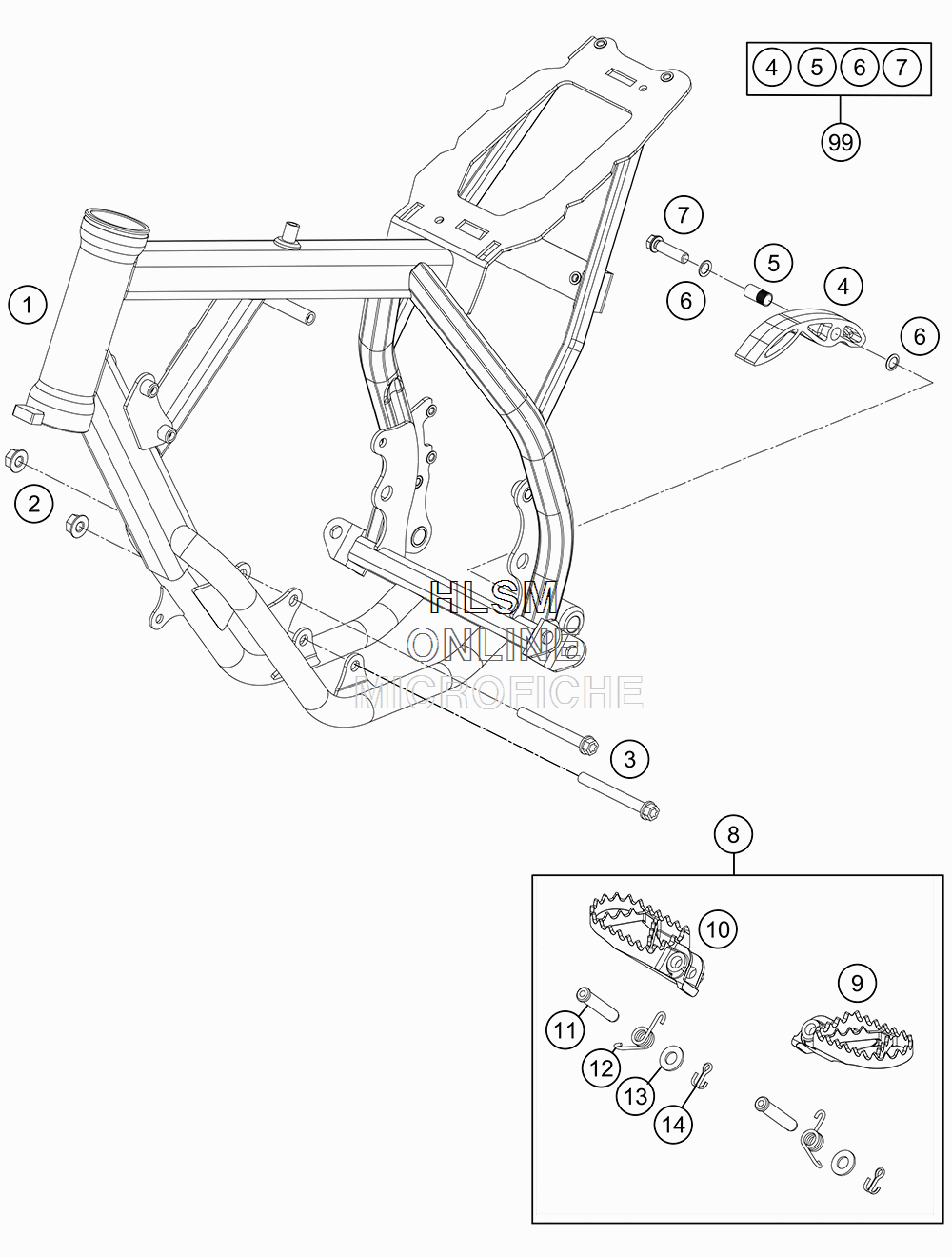

FRAME для Ktm 50 SX - 2014 года выпуска
-
№АртикулНазвание
-
145203001300BE FRAME "452L3" ANTHR. MET.FRAME "452L3" ANTHR. MET.
-
254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
30025080656 HH COLLAR SCREW M8X65 TX40HH COLLAR SCREW M8X65 TX40
-
451103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
551103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
636003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
70025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
847103040033 FOOTREST CPL.FOOTREST CPL.
-
947103040000 FOOTREST L/SFOOTREST L/S
-
1047103041000 FOOTREST R/SFOOTREST R/S
-
1154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
1254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
130125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
140094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
9951103053110 CHAIN SLIDING KIT BELOWCHAIN SLIDING KIT BELOW
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURATOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- • FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- MASK FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION
- WATER PUMP
