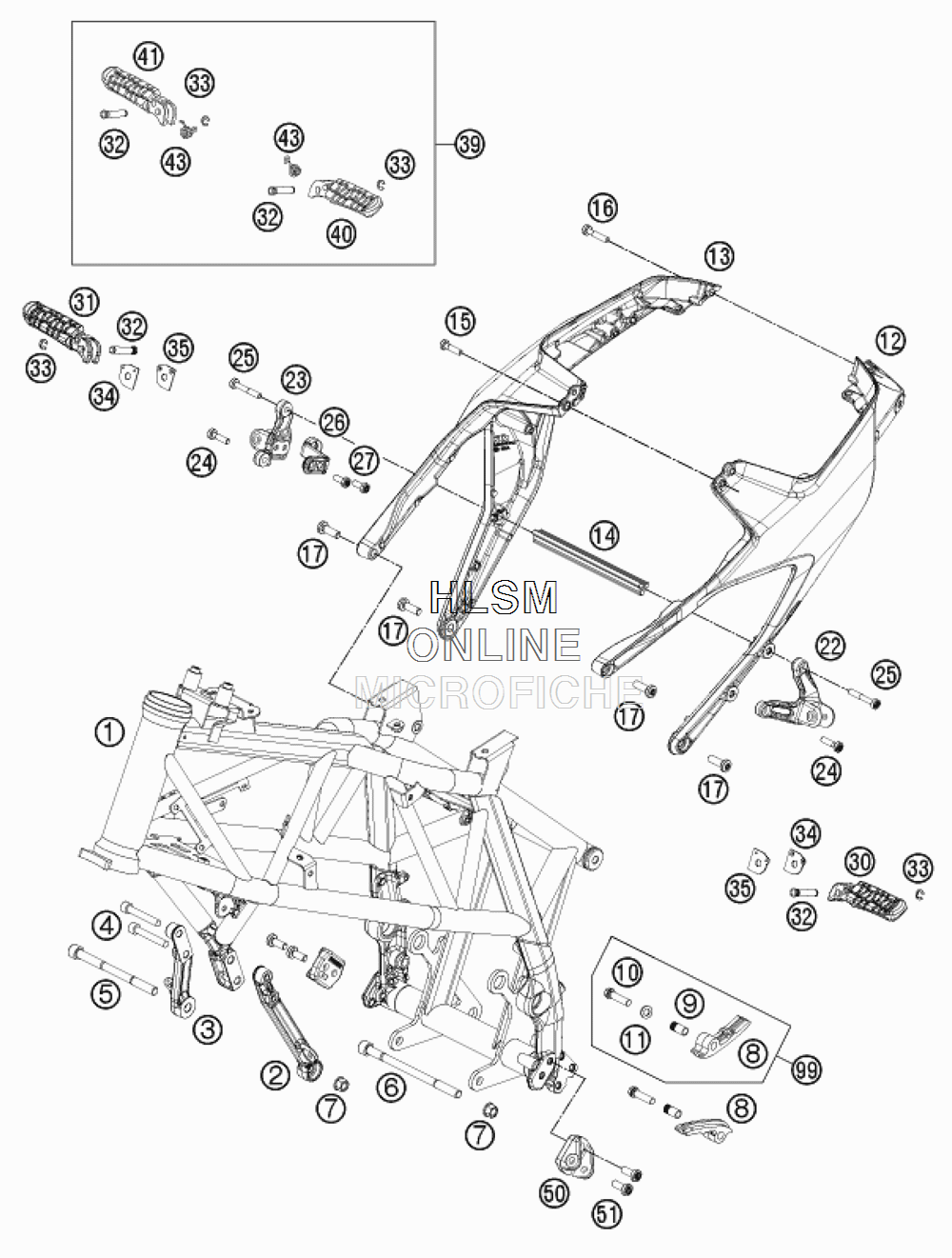

FRAME для Ktm 690 DUKE BLACK - 2014 года выпуска
-
№АртикулНазвание
-
17600300100004 FRAME "760LA0" ORANGEFRAME "760LA0" ORANGE
-
27500300104901 CONNECTION BRACKET ENG. L/SCONNECTION BRACKET ENG. L/S
-
37500310104901 CONNECTION BRACKET ENG. R/SCONNECTION BRACKET ENG. R/S
-
4014579080506S CYL. SCREW DIN14579 M8X50 SSCYL. SCREW DIN14579 M8X50 SS
-
575603015000 SPECIAL SCREW M10X129 HEX8SPECIAL SCREW M10X129 HEX8
-
675003014000 SPECIAL SCREW M10X152 ISK8SPECIAL SCREW M10X152 ISK8
-
754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
854804067000 CHAIN SLIDING PIECECHAIN SLIDING PIECE
-
951103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
100025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
110125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
127600300200192 TAILBOOM L/STAILBOOM L/S
-
137600300200292 TAILBOOM R/STAILBOOM R/S
-
1476003002010 BRACE SUBFRAMEBRACE SUBFRAME
-
150035080256 AH-COLLAR SCREW M8X25 ISA45AH-COLLAR SCREW M8X25 ISA45
-
160035080406 AH-COLLAR SCREW M8X40 ISA45AH-COLLAR SCREW M8X40 ISA45
-
170035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
227600304800001S FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
237600304900001S FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
240035080306S AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
250035080506S AH-COLLAR SCREW M8X50 ISA45AH-COLLAR SCREW M8X50 ISA45
-
267600508400001S BRACKET F. SILENCERBRACKET F. SILENCER
-
270035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
3060003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
3160003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
3260003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
330799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
3460003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
3560003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
3976003040033 FOOTRESTS CPL.FOOTRESTS CPL.
-
4061003050000 FOOTREST FRONT L/S CPL.FOOTREST FRONT L/S CPL.
-
4161003051000 FOOTREST FRONT R/S CPL.FOOTREST FRONT R/S CPL.
-
4376003042000 RETURN SPRING FOOTRESTRETURN SPRING FOOTREST
-
5076003101095 FOOTREST SUPPORTFOOTREST SUPPORT
-
510035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
9954804067010 CHAIN SLIDING KIT UPPER CPL.CHAIN SLIDING KIT UPPER CPL.
