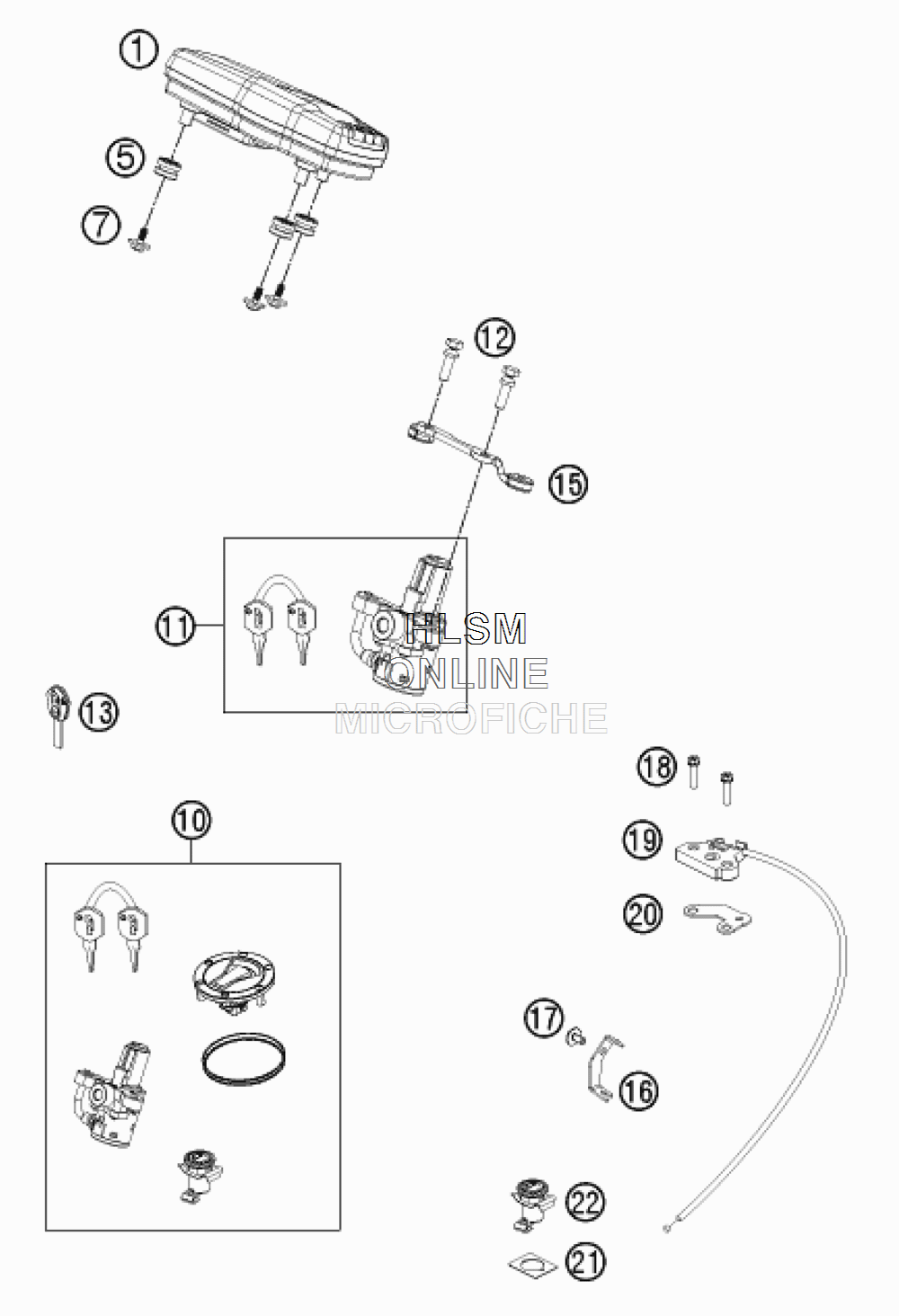

INSTRUMENTS / LOCK SYSTEM для Ktm 690 DUKE BLACK - 2014 года выпуска
-
№АртикулНазвание
-
176014069100 SPEEDOMETERSPEEDOMETER
-
576014069051 RUBBER SLEEVE 7X10,8X16MMRUBBER SLEEVE 7X10,8X16MM
-
70081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
1076011066044 LOCK SETLOCK SET
-
1176011066000 IGNITION + STEERING LOCKIGNITION + STEERING LOCK
-
1276011064000 TAMPERPROOF SCREW M6 IGN.LOCKTAMPERPROOF SCREW M6 IGN.LOCK
-
1376011067100 BLANK KEY 690BLANK KEY 690
-
1576011066095 ALU PLATE IGNITION LOCK COVERALU PLATE IGNITION LOCK COVER
-
1676007051000 SEAT LOCK BRACKETSEAT LOCK BRACKET
-
170024060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
180025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1976007050050 SEAT LOCKING MECHANISMSEAT LOCKING MECHANISM
-
2076007052000 BRACKET SEAT LOCKING MECHANISMBRACKET SEAT LOCKING MECHANISM
-
2176007053000 ANTI-ROTATION ELEMENT SEATLOCKANTI-ROTATION ELEMENT SEATLOCK
-
2276007050000 SEAT LOCKSEAT LOCK
