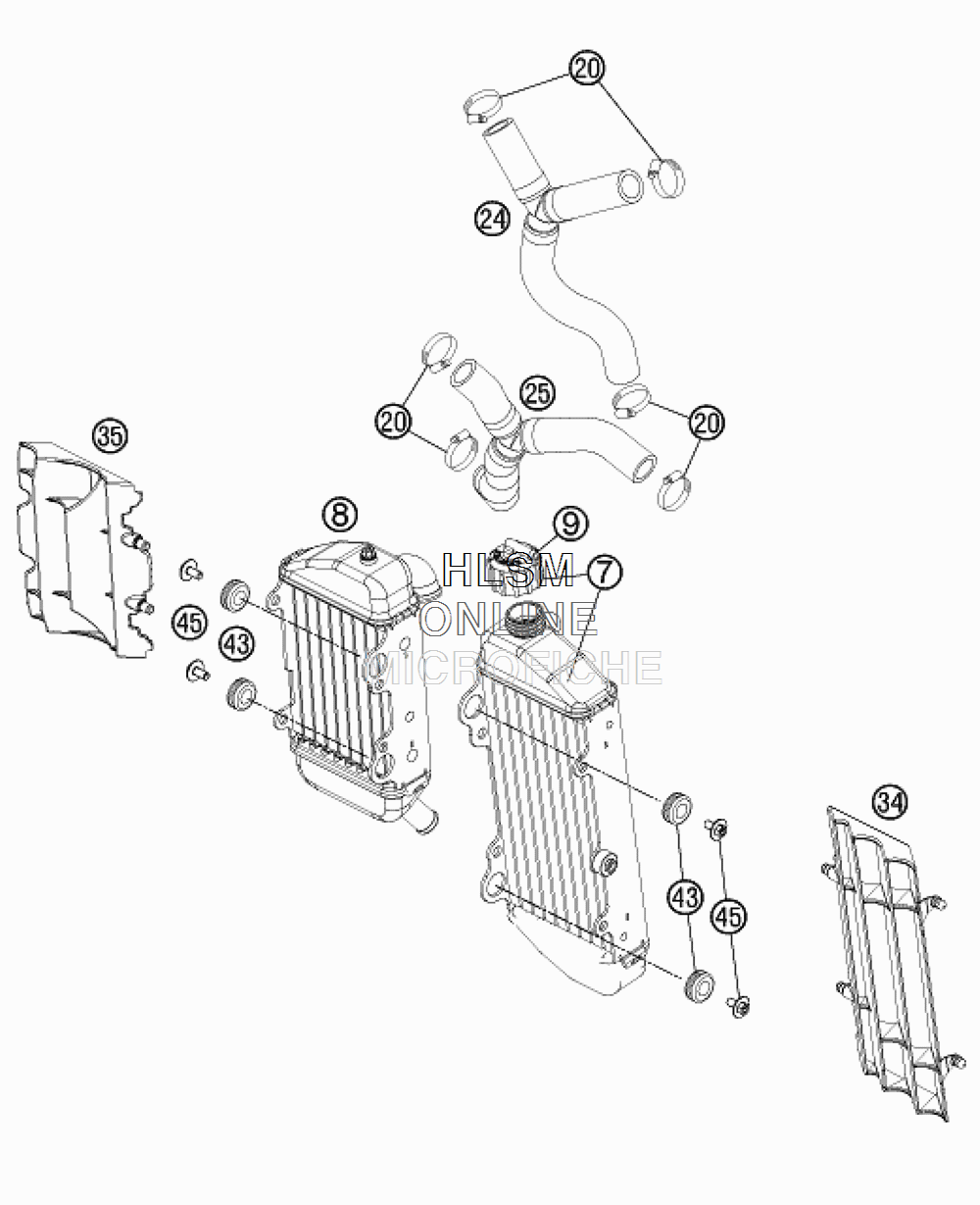

COOLING SYSTEM для Ktm 85 SX 19/16 - 2014 года выпуска
-
№АртикулНазвание
-
747135007000 RADIATOR L/SRADIATOR L/S
-
847135008000 RADIATOR R/SRADIATOR R/S
-
972035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2447135025033 RADIATOR HOSE CPL. TOPRADIATOR HOSE CPL. TOP
-
2547135028033 RADIATOR HOSE BELOWRADIATOR HOSE BELOW
-
344713503400030 RADIATOR PROTECTOR L/SRADIATOR PROTECTOR L/S
-
3546235034000 RADIATOR PROTECTORRADIATOR PROTECTOR
-
4341001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
450024060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
