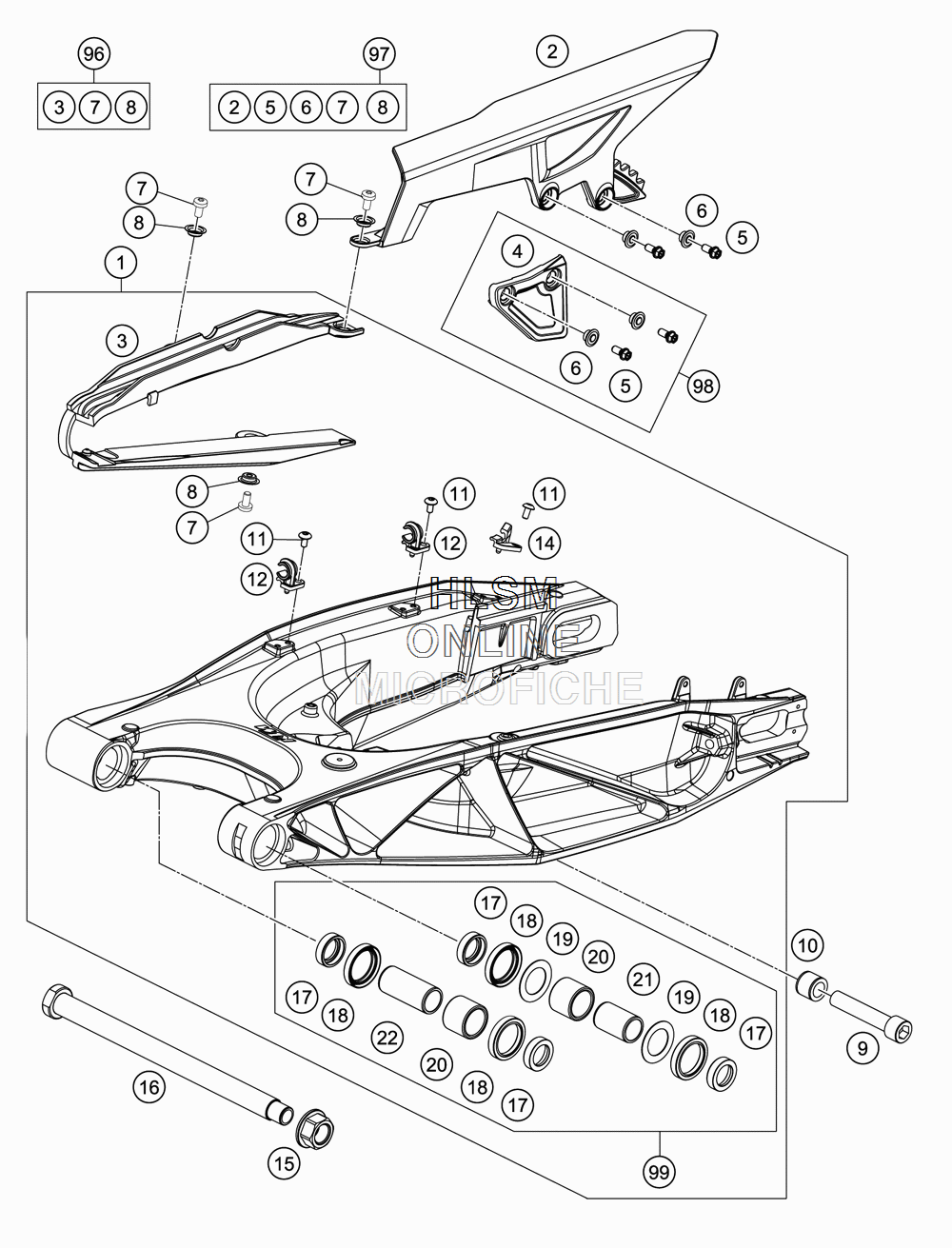

SWINGARM для Ktm 1190 ADVENTURE ABS GREY - 2015 года выпуска

№

Артикул

Название
1

6030403004433 SWINGARM CPL.

SWINGARM CPL.

170 ₽
2

60304061000 CHAIN GUARD

CHAIN GUARD

7 490 ₽
3

60304066000 CHAIN SLIDING GUARD

CHAIN SLIDING GUARD

9 380 ₽
4

60304070000 CHAIN GUIDE

CHAIN GUIDE

3 740 ₽
5

0025060166 HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

500 ₽
6

50308053000 BUSH FOR SPOILER 6X11X16X7,5

BUSH FOR SPOILER 6X11X16X7,5

1 460 ₽
7

0018050103 INT . TORX OVAL HEAD M 5X10 8.8

INT . TORX OVAL HEAD M 5X10 8.8

180 ₽
8

46104066050 BUSH FOR CHAIN SLIDER GUARD

BUSH FOR CHAIN SLIDER GUARD

2 220 ₽
9

60004017000 SCREW M14X1,5 L=73MM

SCREW M14X1,5 L=73MM

1 190 ₽
10

60004030151 BUSHING MONOSHOCK SOCKET

BUSHING MONOSHOCK SOCKET

3 900 ₽
11

78105081010 SCREW TORX M5X10

SCREW TORX M5X10

290 ₽
12

60104042000 RET . CLAMP F . BRAKE HOSE

RET . CLAMP F . BRAKE HOSE

840 ₽
14

60142026000 CABLE SUPPORT SWINGARM

CABLE SUPPORT SWINGARM

820 ₽
15

60004038000 COLLAR NUT M19X1,5 WS=27MM

COLLAR NUT M19X1,5 WS=27MM

4 410 ₽
16

69004037144 SWINGARM BOLT

SWINGARM BOLT

16 440 ₽
17

60004034000 BUCKET F . SHAFT SEAL RING

BUCKET F . SHAFT SEAL RING

1 840 ₽
18

0760304073 SHAFT SEAL RING 30X40X7

SHAFT SEAL RING 30X40X7

760 ₽
19

60004033000 STOP DISK

STOP DISK

380 ₽
20

60004031000 NEEDLE BUSH HK2526B

NEEDLE BUSH HK2526B

2 680 ₽
21

60004032000 INNER RING JR20X25X38,5

INNER RING JR20X25X38,5

4 440 ₽
22

69004032000 INNER RING JR 20X25X56,5

INNER RING JR 20X25X56,5

9 760 ₽
96

60304066010 CHAIN GUARD KIT

CHAIN GUARD KIT

13 930 ₽
97

60304060010 CHAIN PROTECTION KIT

CHAIN PROTECTION KIT

15 410 ₽
98

60304070010 CHAIN GUIDE KIT

CHAIN GUIDE KIT

7 170 ₽
99

69004230010 SWINGARM REP . KIT

SWINGARM REP . KIT

26 030 ₽
