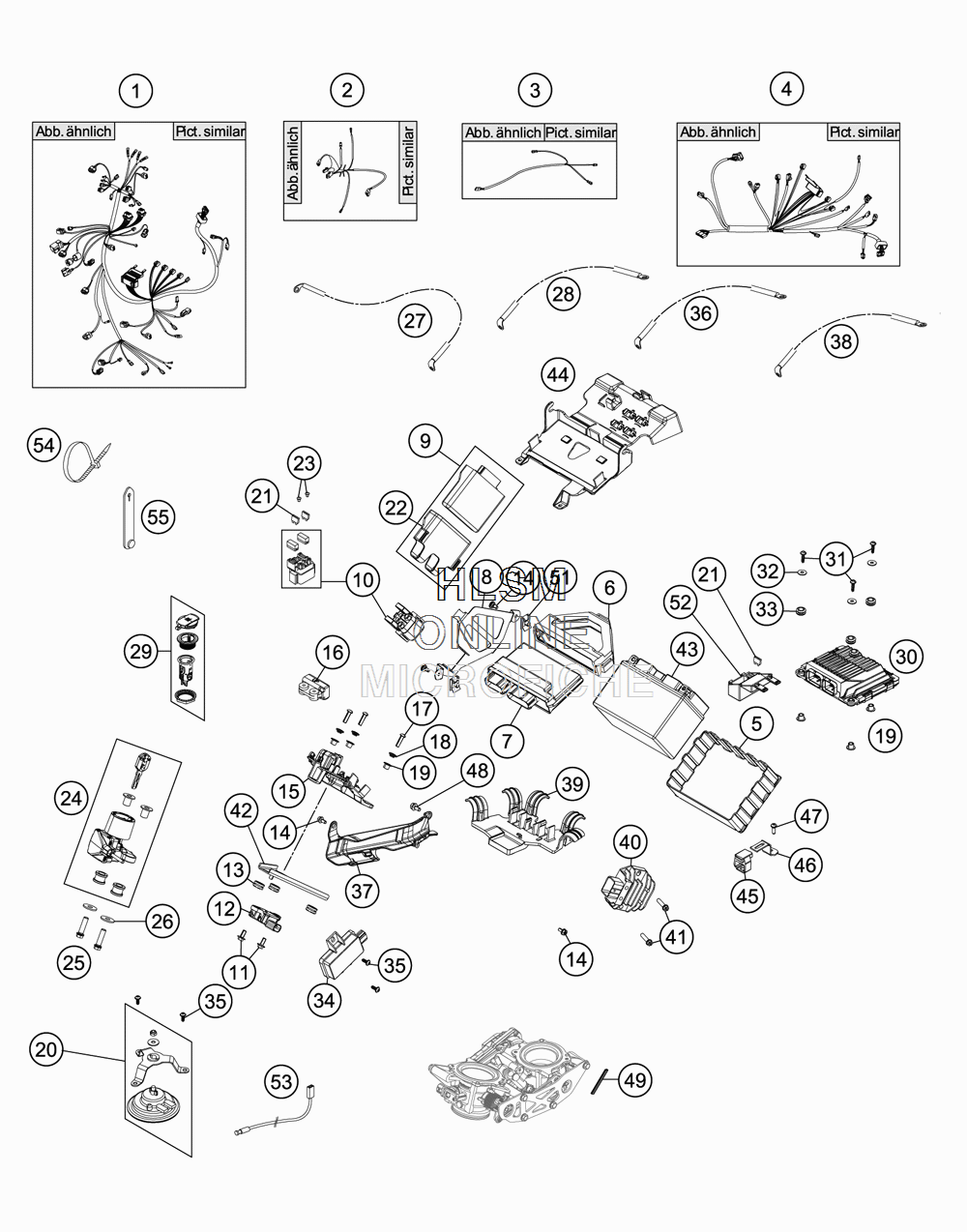

WIRING HARNESS для Ktm 1190 ADVENTURE ABS GREY - 2015 года выпуска
-
№АртикулНазвание
-
160311075233 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
260311085000 WIRING ENGINEWIRING ENGINE
-
360311079000 WIRING HARNESS HEADLIGHTWIRING HARNESS HEADLIGHT
-
460311076000 REAR WIRING HARNESSREAR WIRING HARNESS
-
560311053050 BATTERY HOUSINGBATTERY HOUSING
-
660341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
761341031000 ELECTRONIC CONTROL UNITELECTRONIC CONTROL UNIT
-
860311057050 BRACKET ELECTRICBRACKET ELECTRIC
-
960316031100 ENGINE CONTROL UNIT EDSENGINE CONTROL UNIT EDS
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
110024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
1260342090000 SLOPING POSITIONS SENSORSLOPING POSITIONS SENSOR
-
1362142041000 DAMP . COMPONENT ABS MODULEDAMP . COMPONENT ABS MODULE
-
1469008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1560311048000 SUPPORT BRACKET FRONTSUPPORT BRACKET FRONT
-
1661041088000 ROLL OVER SENSORROLL OVER SENSOR
-
170738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1876508043050 COLLAR BUSHINGCOLLAR BUSHING
-
1969014015000 BUSHING HEADLIGHTBUSHING HEADLIGHT
-
2060311060100 HORNHORN
-
2158011109140 FUSE 40 AFUSE 40 A
-
2158011109130 FUSE 30 AFUSE 30 A
-
2158011109125 FUSE 25 AFUSE 25 A
-
2158011109115 FUSE 15 AFUSE 15 A
-
2158011109110 FUSE 10 AFUSE 10 A
-
2260316029000 RUBBER EDS-CONTROL UNITRUBBER EDS-CONTROL UNIT
-
230902060083 AH OV AL SCREW ISO 7380 M 6X8AH OV AL SCREW ISO 7380 M 6X8
-
2460311066000 IGNITION LOCKIGNITION LOCK
-
250025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
