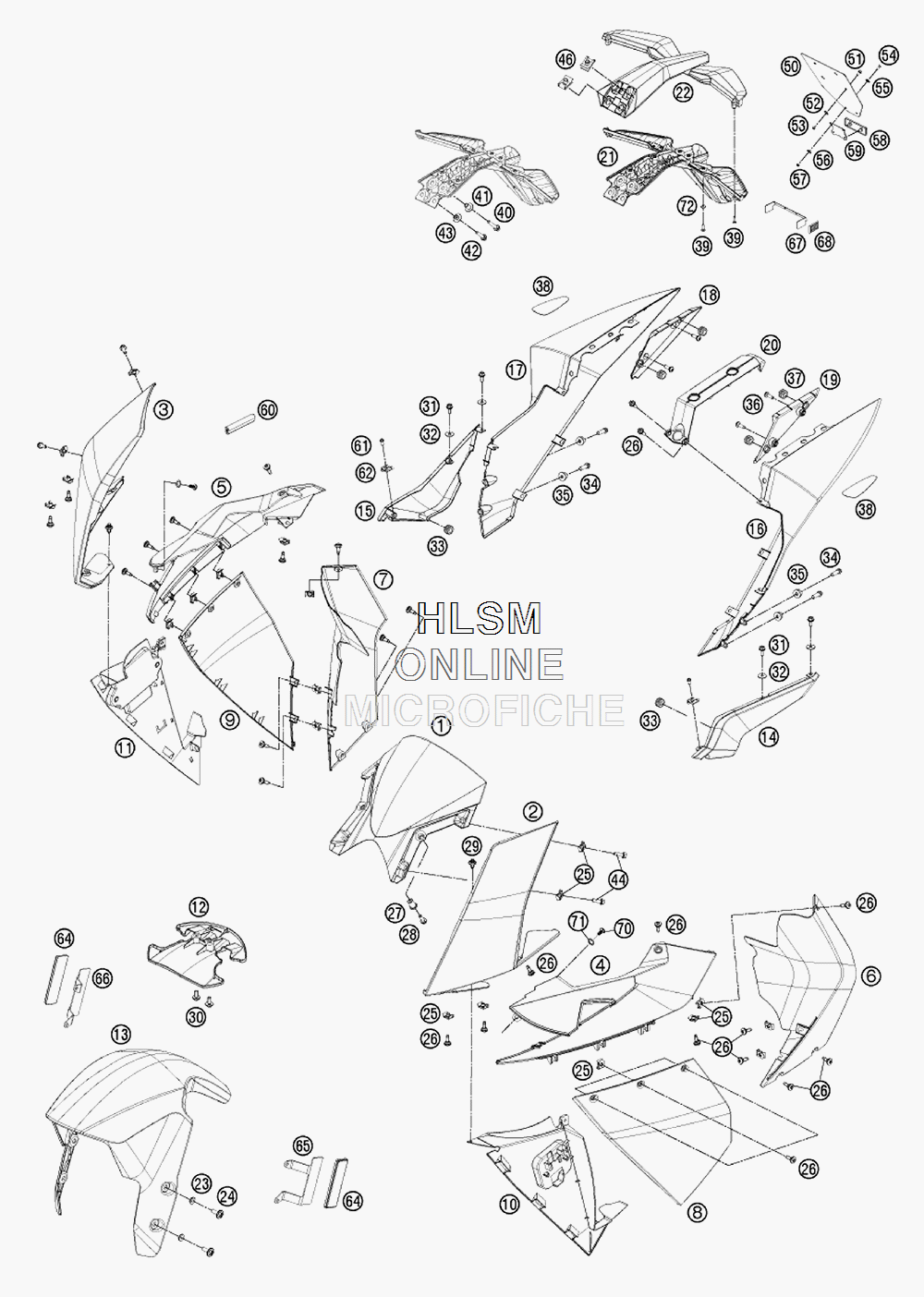

MASK FENDERS для Ktm 1190 RC8 R WHITE - 2015 года выпуска
-
№АртикулНазвание
-
169108008000 FAIRING SCREEN HIGHFAIRING SCREEN HIGH
-
26900800110028B FR.FAIR. UP PART L/S WE.GL.FR.FAIR. UP PART L/S WE.GL.
-
36900800210028B FR.FAIR. UP PART R/S WE.GL.FR.FAIR. UP PART R/S WE.GL.
-
46900800300028B FR.FAIR. LO.PART L/S WS.GLFR.FAIR. LO.PART L/S WS.GL
-
56900800400028B FR.FAIR. LO.PART R/S WS.GLFR.FAIR. LO.PART R/S WS.GL
-
66900805200004A EXHAUST SHAFT L/S ORA. BRILL.EXHAUST SHAFT L/S ORA. BRILL.
-
76900805310004A EXHAUST SHAFT R/SEXHAUST SHAFT R/S
-
86900805000030D COOLER FAIRING L/S SW. GLCOOLER FAIRING L/S SW. GL
-
96900805100030D COOLER FAIRING R/S SW.GLCOOLER FAIRING R/S SW.GL
-
106900802210033 FRESH-AIR SHAFT L/S BL. MA.FRESH-AIR SHAFT L/S BL. MA.
-
116900802310033 FRESH-AIR SHAFT R/S (BLACK MATTE)FRESH-AIR SHAFT R/S (BLACK MATTE)
-
126900802120033 UP. FRESH-AIR SHAFT (BLACK MATTE)UP. FRESH-AIR SHAFT (BLACK MATTE)
-
136930811000033 FRONTFENDER (BLACK)FRONTFENDER (BLACK)
-
146900804300028A SIDE COVER L/S WH. BRILL.SIDE COVER L/S WH. BRILL.
-
156900804400028A SIDE COVER R/S WH. BRILL.SIDE COVER R/S WH. BRILL.
-
166900804100028B REAR FAIRING L/S WE.GL.REAR FAIRING L/S WE.GL.
-
176900804200028B REAR FAIRING R/S WE.GL.REAR FAIRING R/S WE.GL.
-
1869008039000 REAR LIGHT ADAPTER R/SREAR LIGHT ADAPTER R/S
-
1969008038000 REAR LIGHT ADAPTER L/SREAR LIGHT ADAPTER L/S
-
206900803100033 UPPER REAR END PANELUPPER REAR END PANEL
-
2169008016100 NUMBER PLATE LO. PARTNUMBER PLATE LO. PART
-
2269008015100 LICENSE PLATE BRACKET UP. PARTLICENSE PLATE BRACKET UP. PART
-
2369004060050 BUSHING CHAIN GUARDBUSHING CHAIN GUARD
-
2469014017000 SPECIAL SCREW M6X18 ISA30SPECIAL SCREW M6X18 ISA30
-
2569008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2669008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
2760008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
280025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
2976503075000 SPREAD RIVET CPL. 6,2MMSPREAD RIVET CPL. 6,2MM
-
300024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
3158605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3275008023000 WASHER REAR-UT D=14MMWASHER REAR-UT D=14MM
-
3331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
340025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
356930300405001 WASHER F. MONT.REAR PARTWASHER F. MONT.REAR PART
-
360081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
3769014078000 RUBBER SLEEVE 10X14X20RUBBER SLEEVE 10X14X20
-
386900704705028 PASSENGERґS SEAT PLATE (WHITE)PASSENGERґS SEAT PLATE (WHITE)
-
390081040161 SCREW FOR PLASTIC K40X16 T20SCREW FOR PLASTIC K40X16 T20
-
400025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
4169007028000 COLLAR BUSH. 6,2X10X21X14MMCOLLAR BUSH. 6,2X10X21X14MM
-
420025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
4369008020000 BUSHING LICENSE PLATE BRACKETBUSHING LICENSE PLATE BRACKET
-
440025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
4654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
5060012081200 LICENCE FITTINGLICENCE FITTING
-
510024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
520021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
530985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
540966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5540006006000 WASHER 6MMWASHER 6MM
-
560125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
570985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
5858412080000 REFLECTOR (RED)REFLECTOR (RED)
-
5958412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
6060114010070 EDGE PROTECTOR 14X9,5X66 MMEDGE PROTECTOR 14X9,5X66 MM
-
6169003003055 SPECIAL SCREW M5X10 ISA15SPECIAL SCREW M5X10 ISA15
-
6269003003050 CLIPS SIDECOVERCLIPS SIDECOVER
-
6460012080000 SIDE REFLECTOR (YELLOW)SIDE REFLECTOR (YELLOW)
-
6569012080050 BRACKET F. SIDE REFLECTOR L/SBRACKET F. SIDE REFLECTOR L/S
-
6669012080060 BRACKET F. SIDE REFLECTOR R/SBRACKET F. SIDE REFLECTOR R/S
-
6762512081100 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
6816512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
700081060121 EJOT PT SCREW K60X12 1451EJOT PT SCREW K60X12 1451
-
7169008003050 WASHER PA 8,3X12X5WASHER PA 8,3X12X5
-
720021040003 WASHER DIN9021-A 4,3WASHER DIN9021-A 4,3
