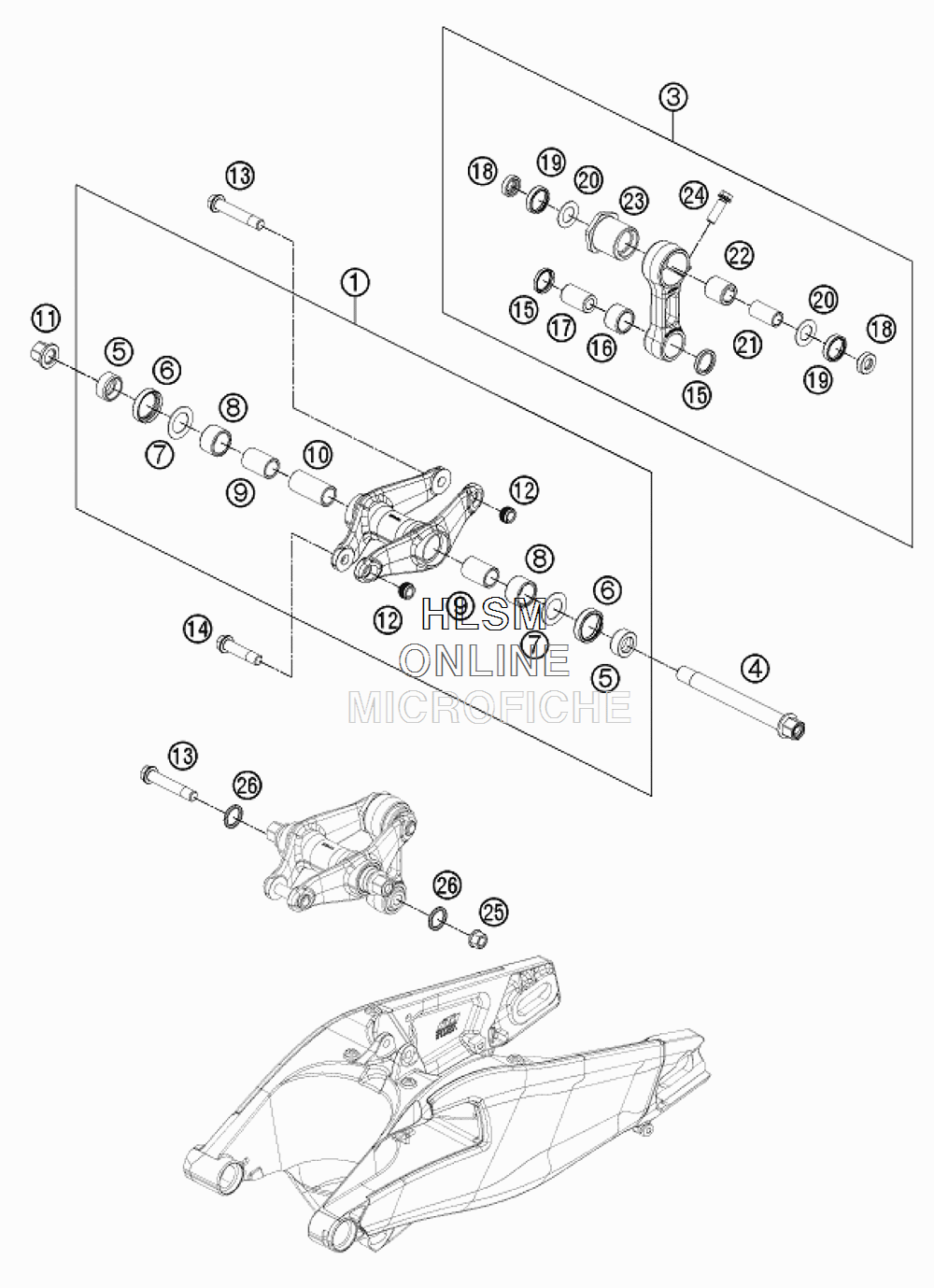

PRO LEVER LINKING для Ktm 1190 RC8 R WHITE - 2015 года выпуска
-
№АртикулНазвание
-
16900408004433S SWING ARM DEFLECTION CPL.SWING ARM DEFLECTION CPL.
-
36930408304433S CONNECTING ROD CPL.CONNECTING ROD CPL.
-
469004081044 BEARING BOLT SWING LEVER CPL.BEARING BOLT SWING LEVER CPL.
-
558303090000 SPAC.F.SHAFT SEALRING 15X25X11SPAC.F.SHAFT SEALRING 15X25X11
-
60760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
759033080000 SHIM 20X32X1SHIM 20X32X1
-
854603097000 NEEDLE BUSH HKNEEDLE BUSH HK
-
950203081800 BEARING BUSHINGBEARING BUSHING
-
1069004087000 DIST. BUSHING SWING LEVERDIST. BUSHING SWING LEVER
-
1169004082000 FLANGE NUT M14X1,5FLANGE NUT M14X1,5
-
1269004095000 ADAPTOR NUT M10ADAPTOR NUT M10
-
1369004094000 HH COLLAR SCREW M10X56 WS13HH COLLAR SCREW M10X56 WS13
-
1469004089000 HH COLLAR SCREW M10X42 WS13HH COLLAR SCREW M10X42 WS13
-
150760182442 SHAFT SEAL RING 18X24X4SHAFT SEAL RING 18X24X4
-
1656503195100 NEEDLE BEARING HK 1816NEEDLE BEARING HK 1816
-
1769004085000 BEAR. BUSH. CONN. ROD BELOWBEAR. BUSH. CONN. ROD BELOW
-
1869004093000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
190760202640 SHAFT SEAL RING 20X26X4 NBRSHAFT SEAL RING 20X26X4 NBR
-
2069004092000 STOP DISC 15,1X25,9X1MMSTOP DISC 15,1X25,9X1MM
-
2169004088000 BEAR. BUSH. CONN. ROD ABOVEBEAR. BUSH. CONN. ROD ABOVE
-
220618152200 NEEDLE SLEEVE HK1522NEEDLE SLEEVE HK1522
-
2369304084000 ECCENTRIC PUSHRODECCENTRIC PUSHROD
-
240025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
2554630044000 COLLAR NUT M10COLLAR NUT M10
-
2669004096000 QUAD-RING 17,12X2,62X2,62 NBRQUAD-RING 17,12X2,62X2,62 NBR
