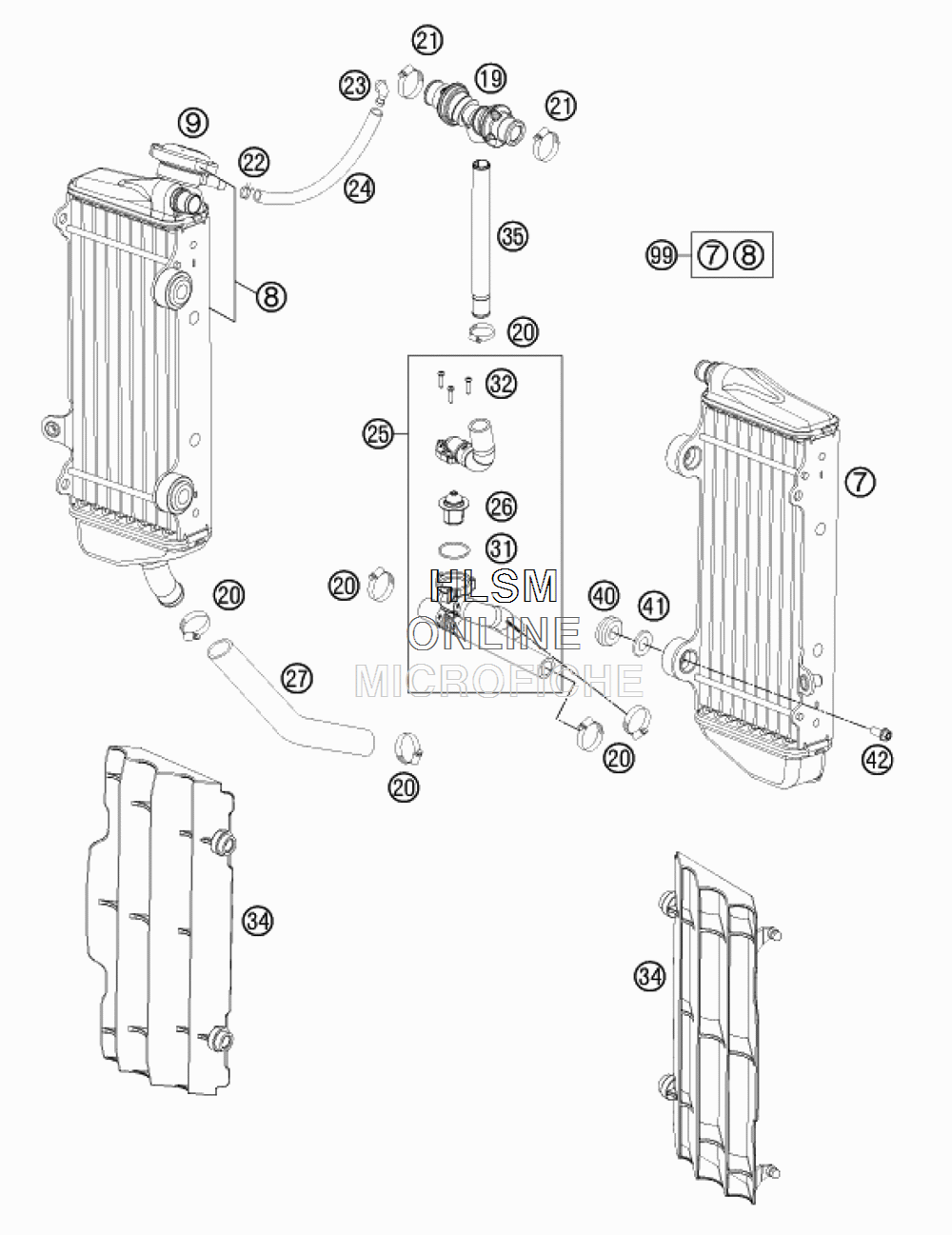

COOLING SYSTEM для Ktm 200 XCW - 2015 года выпуска
-
№АртикулНазвание
-
754835007400 RADIATOR L/S "15562U"RADIATOR L/S "15562U"
-
854835008600 RADIATOR R/S "15620U"RADIATOR R/S "15620U"
-
977335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1977235071044 Y -CONNECTOR CPL.Y -CONNECTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 18-29HOSE CLAMP GEMI 18-29
-
2142013037400 HOSE CLAMP NORMA 12/24HOSE CLAMP NORMA 12/24
-
2259007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
2350303089000 ANGLE PIECEANGLE PIECE
-
2450335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
2552335626033 RADIATOR HOSE W. THERMO.RADIATOR HOSE W. THERMO.
-
2659435117000 THERMOST A T 70CTHERMOST A T 70C
-
2750335027000 RADIATOR HOSE 18X25RADIATOR HOSE 18X25
-
310770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
320016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3577235073000 HOSE CONNECTOR L=172,5HOSE CONNECTOR L=172,5
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW M6X12TXCOLLAR SCREW M6X12TX
-
9900050000134 RADIATOR KITRADIATOR KIT
