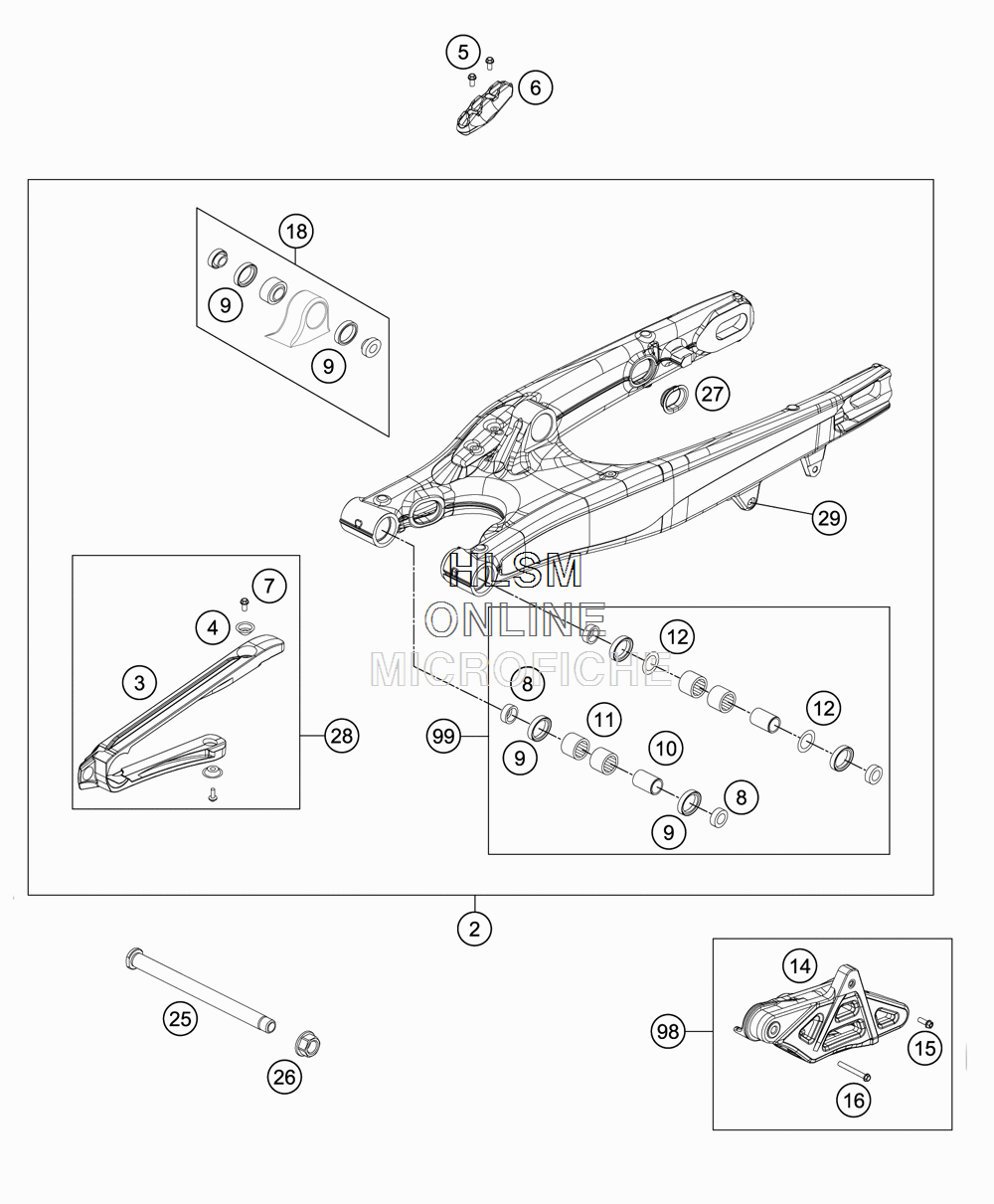

SWINGARM для Ktm 200 XCW - 2015 года выпуска

№

Артикул

Название
2

51504030044 SWINGARM CPL. PDS

SWINGARM CPL. PDS

170 ₽
3

51504066000 CHAIN SLID.GUARD PDS

CHAIN SLID.GUARD PDS

5 250 ₽
4

77304066050 BUSHING F . CHAIN SLIDING PR.

BUSHING F . CHAIN SLIDING PR.

530 ₽
5

0009050106 EJOT SPIRAL SCREW SF M5X10-K

EJOT SPIRAL SCREW SF M5X10-K

290 ₽
6

77313047000 BRAKE HOSE GUIDE LOWER 07

BRAKE HOSE GUIDE LOWER 07

1 230 ₽
7

59009062013 SPECIAL SCREW M6X13 WS=8 10.9

SPECIAL SCREW M6X13 WS=8 10.9

290 ₽
8

54804034000 BUCKET F . SHAFT SEAL RING

BUCKET F . SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

54804032000 BUSHING SLEEVE F . SWINGARM

BUSHING SLEEVE F . SWINGARM

2 680 ₽
11

58033097000 NEEDLE BEARING HK 2216

NEEDLE BEARING HK 2216

3 770 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
14

78104070100 CHAIN GUIDE

CHAIN GUIDE

13 580 ₽
15

59009062019 SPECIAL SCREW M6X19 WS=8 10.9

SPECIAL SCREW M6X19 WS=8 10.9

410 ₽
16

0025060506 HH COLLAR SCREW M6X50 TX30

HH COLLAR SCREW M6X50 TX30

640 ₽
18

50304090144 PIVOT BEARING+BUSH. PDS

PIVOT BEARING+BUSH. PDS

17 470 ₽
25

77304037000 SWINGARM BOLT M16X1,5

SWINGARM BOLT M16X1,5

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
27

77204041000 CLOSING COVER

CLOSING COVER

760 ₽
28

51504066044 CHAIN SLIDING GUARD KIT 11-14

CHAIN SLIDING GUARD KIT 11-14

6 690 ₽
29

54603055051 PRESS IN NUT M6 STEEL ZINC

PRESS IN NUT M6 STEEL ZINC

270 ₽
98

78104070010 CHAIN GUIDE KIT

CHAIN GUIDE KIT

11 710 ₽
99

54804230210 SWINGARM REPAIR KIT

SWINGARM REPAIR KIT

21 820 ₽
