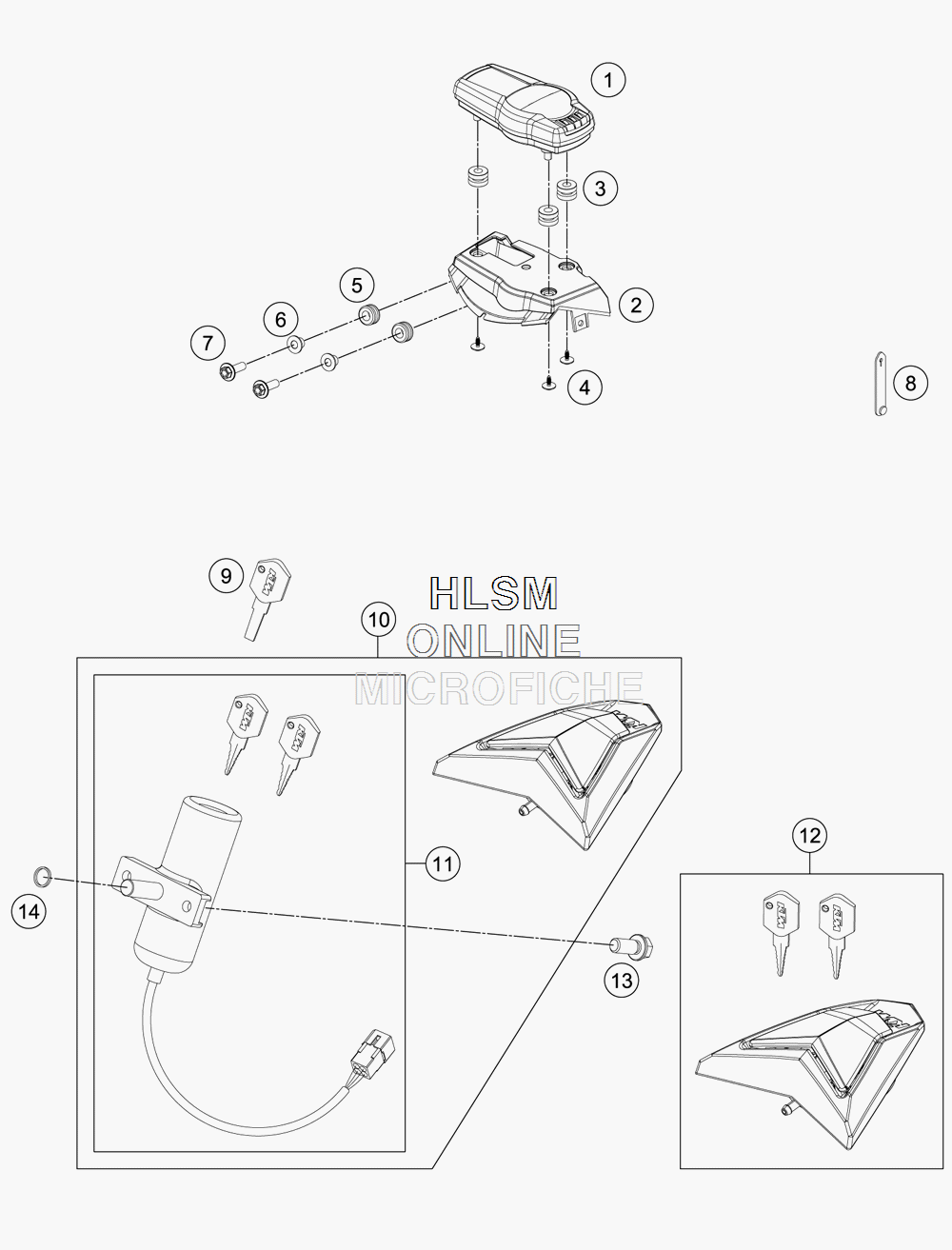

INSTRUMENTS / LOCK SYSTEM для Ktm 690 ENDURO R ABS - 2015 года выпуска
-
№АртикулНазвание
-
176014169000 SPEEDOMETER REPROGRAMMABLE KM/H-MPHSPEEDOMETER REPROGRAMMABLE KM/H-MPH
-
276514060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
358214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
40081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
675014010050 COLLAR BUSHING 6,1X8,1X14X8COLLAR BUSHING 6,1X8,1X14X8
-
70024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
860011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
940011166100 KEY BLANK LC4/DUKE/L C8KEY BLANK LC4/DUKE/L C8
-
1076511066144 LOCK SETLOCK SET
-
1176511066000 IGNITION LOCKIGNITION LOCK
-
1276507008100 TANK CAPTANK CAP
-
1359009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
140770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
