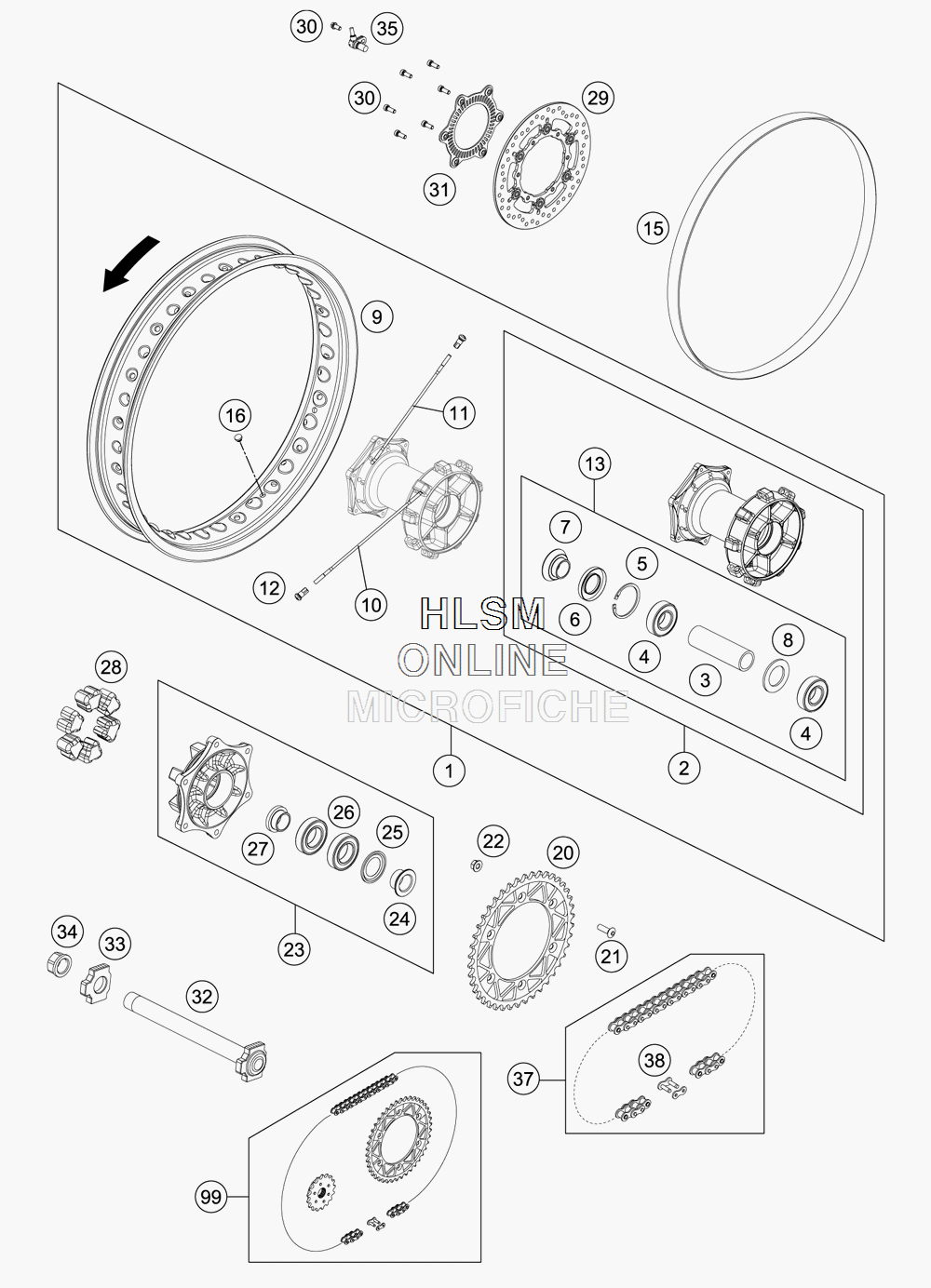

REAR WHEEL для Ktm 690 ENDURO R ABS - 2015 года выпуска
-
№АртикулНазвание
-
17651000104430 REAR WHEEL CPL. 2,50X18''REAR WHEEL CPL. 2,50X18''
-
27531001004491 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
375310011000 BEARING SPACER TUBE L=106MMBEARING SPACER TUBE L=106MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3H MTF7GR.BALL BEAR. 6205-2RSHC3H MTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
97651007000030 RIM 2,50X18" DID BLACKRIM 2,50X18" DID BLACK
-
1075310073217 SPOKE M5X217 -17G 18" INOXSPOKE M5X217 -17G 18" INOX
-
1175310173207 SPOKE M5X207-27G 18" INOXSPOKE M5X207-27G 18" INOX
-
1258309072100 SPOKE NIPPLE M5-T A 8X21MMSPOKE NIPPLE M5-T A 8X21MM
-
1375010015000 REAR WHEEL REP . KITREAR WHEEL REP . KIT
-
1558410073200 RIM BAND REAR 2MMRIM BAND REAR 2MM
-
1655003135000 PLUG FOR RIMPLUG FOR RIM
-
2075010051045 SPROCKET 45TSPROCKET 45T
-
2075010051042 SPROCKET STEAL TH 42TSPROCKET STEAL TH 42T
-
210019080266S COUNTER -SUNK SCREW ISA45 M8X26COUNTER -SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
237501005004491 SPROCKET SUPPORT CPL. SIL VERSPROCKET SUPPORT CPL. SIL VER
-
2460110012000 SPACER BUSH. SPROCKET SUPP .SPACER BUSH. SPROCKET SUPP .
-
2560110016000 NILOS RING 6006A VNILOS RING 6006A V
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP . IN.SPACER BUSH. SPR. SUPP . IN.
-
2854610459000 RUBBER DAMPING BLOCK '91RUBBER DAMPING BLOCK '91
-
2976510160000 BRAKE DISK REAR D=240BRAKE DISK REAR D=240
-
30014580060166S CYL.HEAD SCREW DIN14580 M6X16CYL.HEAD SCREW DIN14580 M6X16
-
3176542021000 SENSOR WHEEL ABS REARSENSOR WHEEL ABS REAR
-
3275310085144 WHEEL SPINDLE CPL.WHEEL SPINDLE CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3576042025000 ABS-SENSORABS-SENSOR
-
3778010167118 CHAIN DID 118 ROLLSCHAIN DID 118 ROLLS
-
3878010166100 RIVETING LINK FOR 78010167118RIVETING LINK FOR 78010167118
-
9900050002016 DRIVETRAIN KIT 15T/42TDRIVETRAIN KIT 15T/42T
