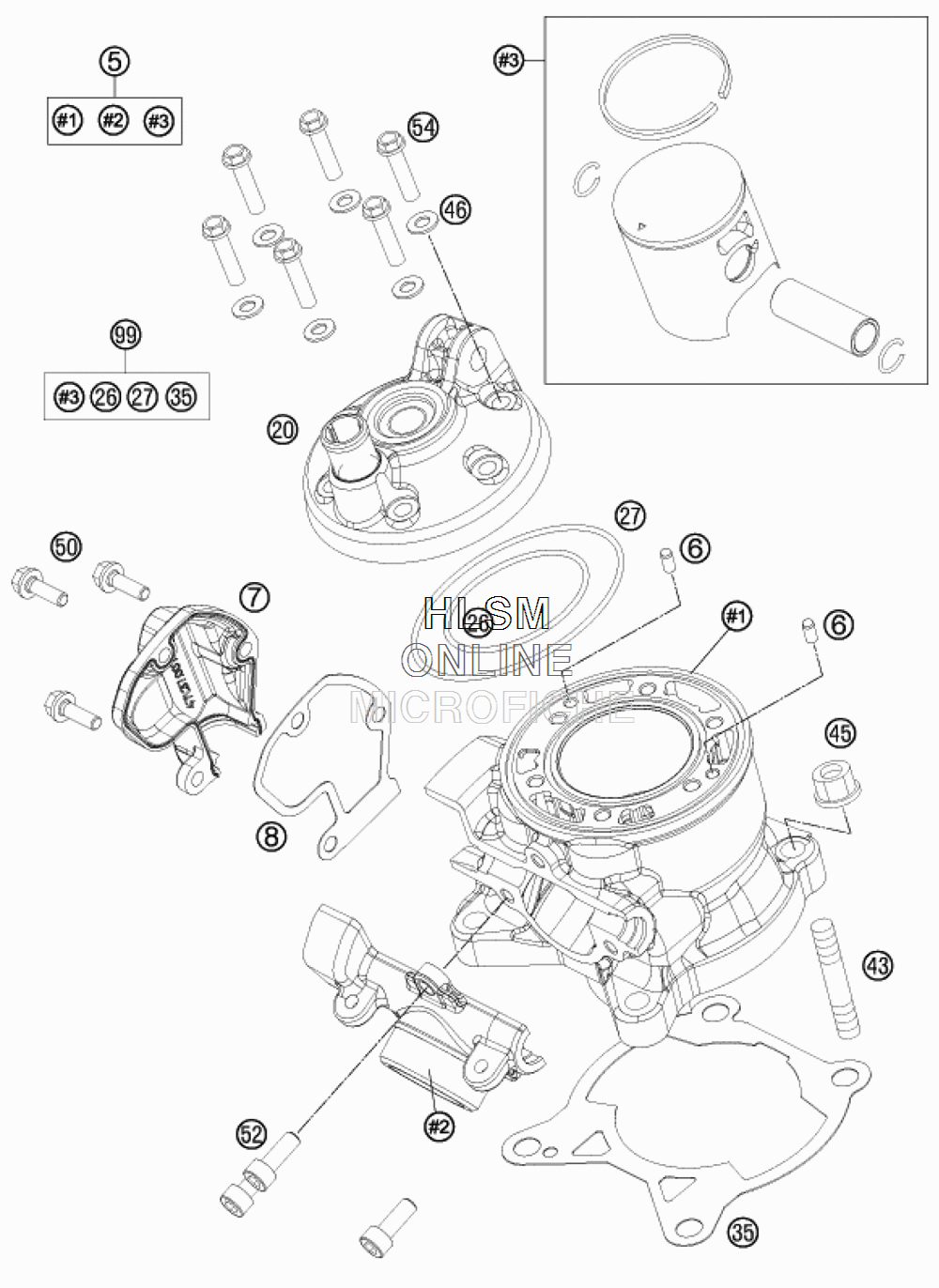

CYLINDER для Ktm 85 SX - 2015 года выпуска
-
№АртикулНазвание
-
547130038000 CYLINDER W/ PISTONCYLINDER W/ PISTON
-
60402040980 NEEDLE ROL.DIN540 2 NRB 4X9,8NEEDLE ROL.DIN540 2 NRB 4X9,8
-
747137007000 CONTROL COVERCONTROL COVER
-
847137008000 GASKET CONTROL COVERGASKET CONTROL COVER
-
2047130006000 CYLINDER HEADCYLINDER HEAD
-
260770540020 O-RING 54X2 VITONO-RING 54X2 VITON
-
270770800021 O-RING 80,00X2,00 VITONO-RING 80,00X2,00 VITON
-
3547030035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3547030035030 CYLINDER BASE GASKET 0,30MMCYLINDER BASE GASKET 0,30MM
-
3547030035000 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
430835080240 STUD DIN 0835-M 8X24STUD DIN 0835-M 8X24
-
4546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
460603061001 CU-SEAL RING DIN7603-6X10X 1CU-SEAL RING DIN7603-6X10X 1
-
500015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
520012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
540025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
9900050000204 PISTON KIT GR.IPISTON KIT GR.I
-
9900050000205 PISTON KIT GR.IIPISTON KIT GR.II
