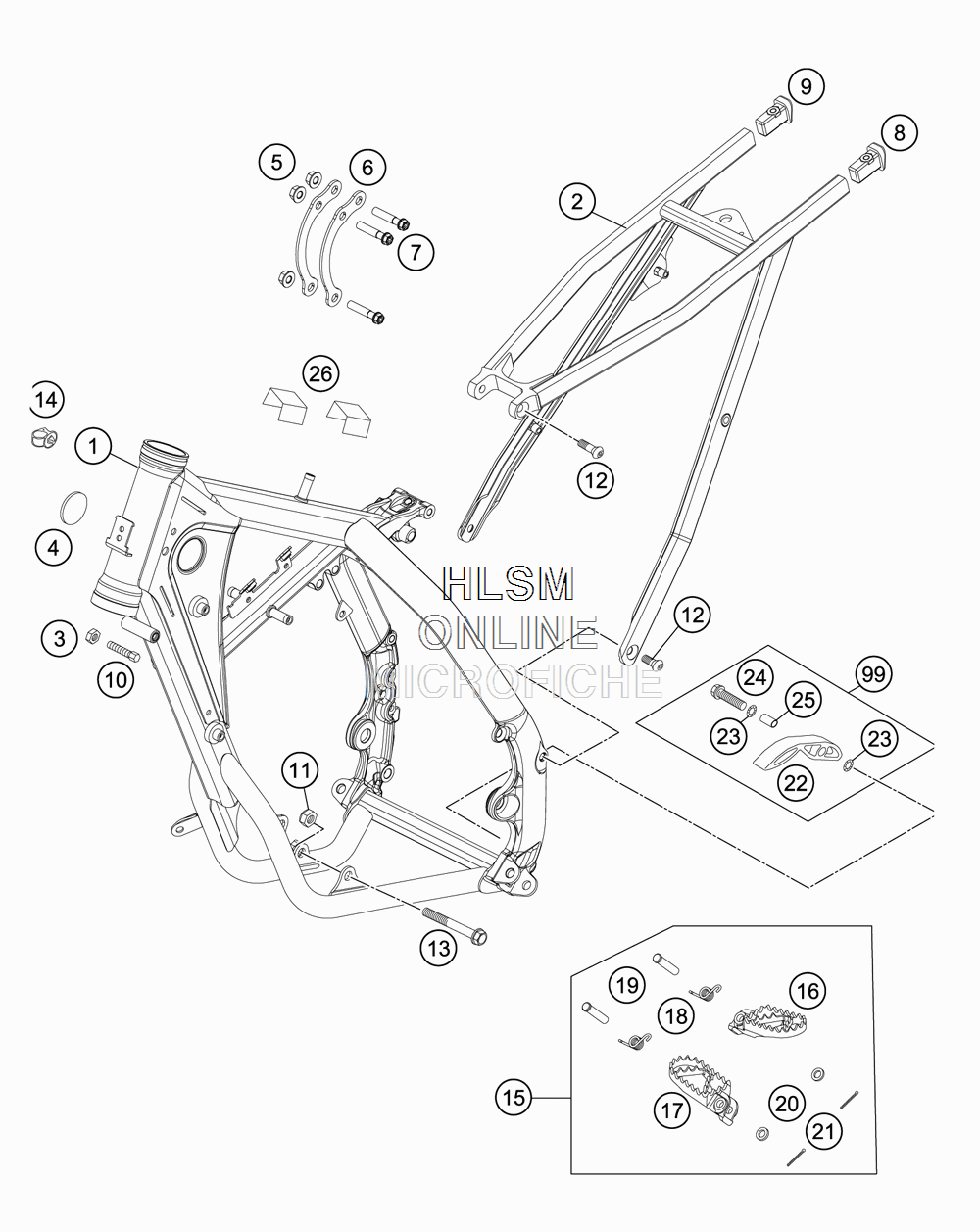

FRAME SUB FRAME для Ktm 85 SX - 2015 года выпуска

№

Артикул

Название
1

47103001000BE FRAME "471M3" ANTHR.-MET .

FRAME "471M3" ANTHR.-MET .

340 ₽
2

47103002000 SUB FRAME

SUB FRAME

77 800 ₽
3

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
4

54606004000 PLUG 37MM

PLUG 37MM

490 ₽
5

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
6

47103013100 REINFORCING

REINFORCING

1 730 ₽
7

0025080356 HH COLLAR SCREW M8X35 TX40

HH COLLAR SCREW M8X35 TX40

930 ₽
8

78103002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

6 050 ₽
9

78103002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

5 490 ₽
10

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
11

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
12

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
13

47003013000 ENGINE BRACKET SCREW

ENGINE BRACKET SCREW

1 930 ₽
14

58111076000 CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

910 ₽
15

47103040033 FOOTREST CPL.

FOOTREST CPL.

29 760 ₽
16

47103040000 FOOTREST L/S

FOOTREST L/S

11 830 ₽
17

47103041000 FOOTREST R/S

FOOTREST R/S

11 540 ₽
18

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
19

54803044000 PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

3 330 ₽
20

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
21

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
22

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
23

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
24

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
25

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
26

50307012000 ADH. FOIL TRANSP . 80X80 MM

ADH. FOIL TRANSP . 80X80 MM

330 ₽
99

51103053110 CHAIN SLIDING KIT BELOW MINI

CHAIN SLIDING KIT BELOW MINI

4 500 ₽
