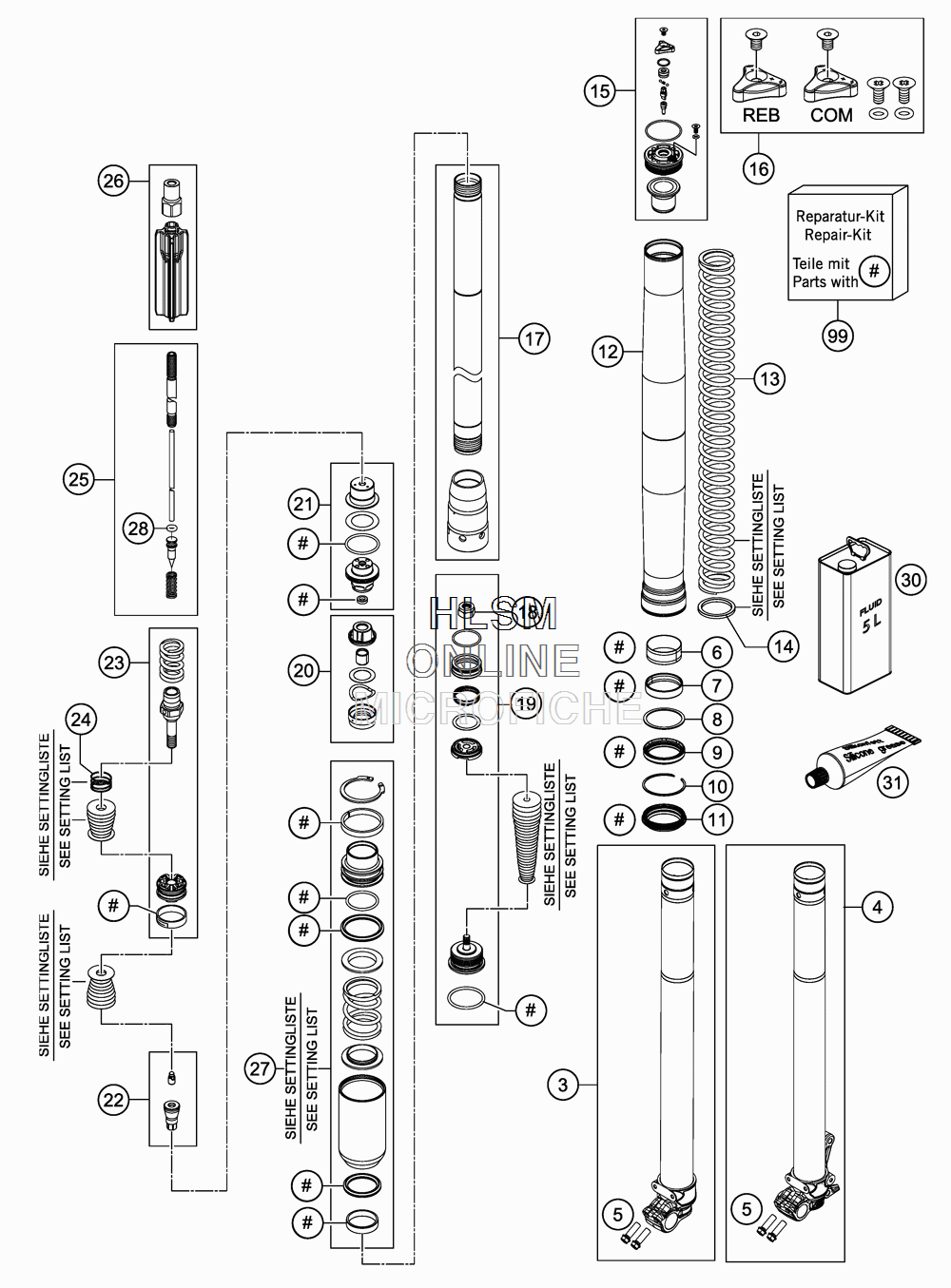

FRONT FORK DISASSEMBLED для Ktm 125 SX - 2016 года выпуска
-
№АртикулНазвание
-
348601327S1 AXLE CLAMP R/S WITH INNER TUBEAXLE CLAMP R/S WITH INNER TUBE
-
448601326S1 AXLE CLAMP L/S WITH INNER TUBEAXLE CLAMP L/S WITH INNER TUBE
-
50025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
648601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
748601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
848600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
948601179 OIL SEALRING D48X57,9X11,4 (RED)OIL SEALRING D48X57,9X11,4 (RED)
-
1048600070 LOCK WASHER SB58LOCK WASHER SB58
-
1148601562 DUST SEAL D48X58,4X5,7 (RED)DUST SEAL D48X58,4X5,7 (RED)
-
1248600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
1391410100S SPRING 4,0N/MM SET D=4,9MMSPRING 4,0N/MM SET D=4,9MM
-
1391410101S SPRING 4,2N/MM SET D=4,9MMSPRING 4,2N/MM SET D=4,9MM
-
1391410102S SPRING 4,4N/MM SET D=4,9MMSPRING 4,4N/MM SET D=4,9MM
-
1391410103S SPRING 4,6N/MM SET D=4,9MMSPRING 4,6N/MM SET D=4,9MM
-
1391410104S SPRING 4,8N/MM SET D=4,9MMSPRING 4,8N/MM SET D=4,9MM
-
1391410105S SPRING 5,0N/MM SET D=4,9MMSPRING 5,0N/MM SET D=4,9MM
-
1448600456 SPACER 43X35X2,5SPACER 43X35X2,5
-
1448600458 SPACER 43X35X1,5SPACER 43X35X1,5
-
1548601116E SCREW CAP M51X1,5 CPL.SCREW CAP M51X1,5 CPL.
-
1548601050E SCREW CAP M51X1,5 REB. KPL.SCREW CAP M51X1,5 REB. KPL.
-
16R14033 SCREW CAP SMALL PART KITSCREW CAP SMALL PART KIT
-
1748601031S CARTRIDGE KITCARTRIDGE KIT
-
1840540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
1948601279S BASE VALVE KITBASE VALVE KIT
-
2048601025S1 CHECK VALVE D21 CPL.CHECK VALVE D21 CPL.
-
21R14035 SCREW SLEEVE KITSCREW SLEEVE KIT
-
2248601527S NEEDLE KITNEEDLE KIT
-
23R14056 TAP KITTAP KIT
-
2448600382 SHUTTLE VALVE SPRING C=0,4SHUTTLE VALVE SPRING C=0,4
-
2548601343S PISTON ROD CPL.PISTON ROD CPL.
-
2648601035S1 SPRING GUIDE CPL.SPRING GUIDE CPL.
-
2748601315S5 PRESSURE TANKPRESSURE TANK
-
2846811265 O-RING VITON 2,2X1,6O-RING VITON 2,2X1,6
-
3048601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
31T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
99R24001 REPAIR - KITREPAIR - KIT
