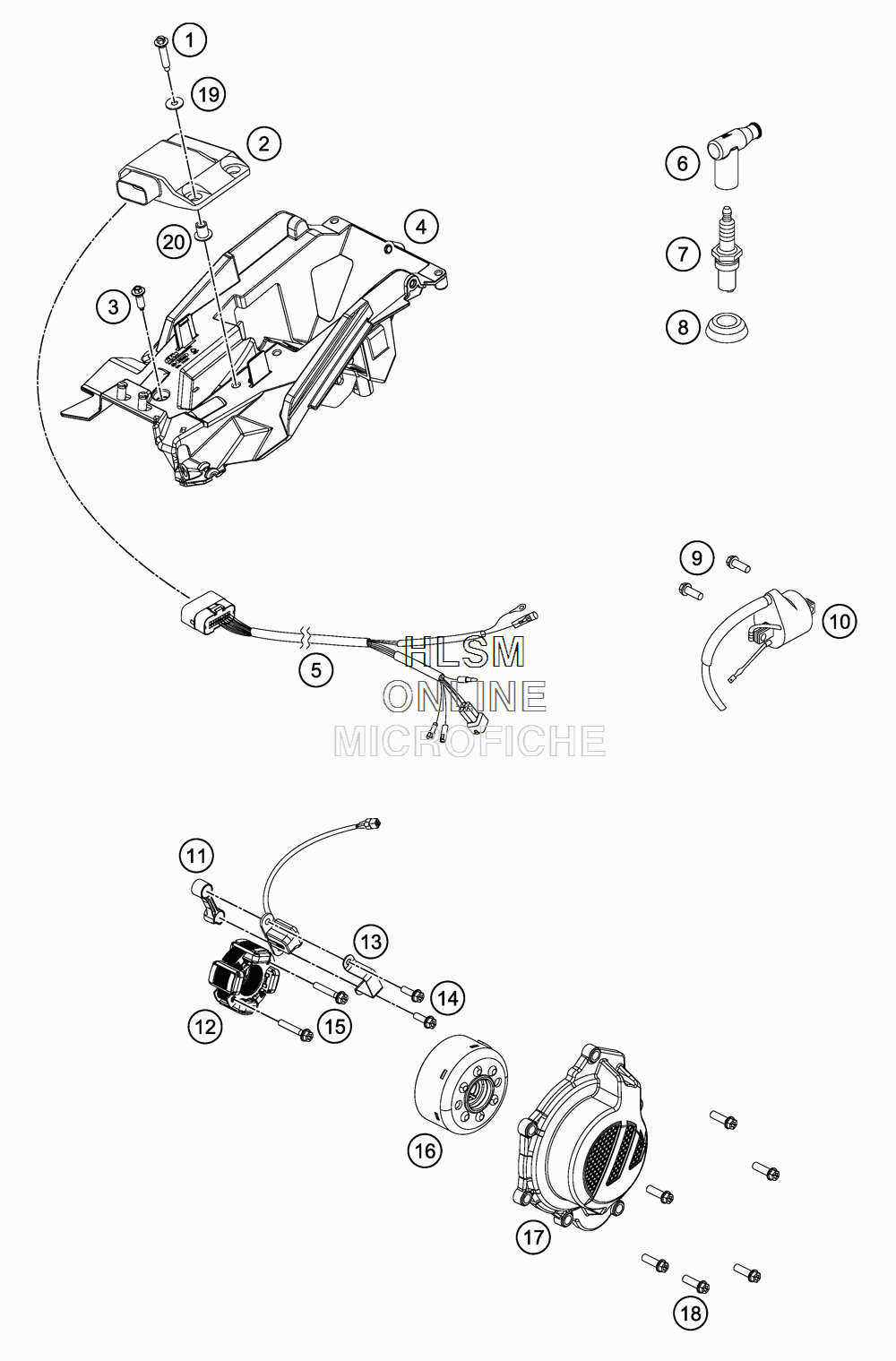

IGNITION SYSTEM для Ktm 125 SX - 2016 года выпуска
-
№АртикулНазвание
-
10017060305 SPECIAL SCREW K60X30 WS=6SPECIAL SCREW K60X30 WS=6
-
250439031000 ELECTRONICBOX125ELECTRONICBOX125
-
30017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
479011055000 BATTERY BOXBATTERY BOX
-
554839032200 WIRING HARNESS FOR CDI 2-ST.WIRING HARNESS FOR CDI 2-ST.
-
647039090000 SPARK PLUG CAP NGK REINFORCEDSPARK PLUG CAP NGK REINFORCED
-
751539093000 SPARK PLUG (BR9ECMVX)SPARK PLUG (BR9ECMVX)
-
850439091000 SEALING SLEEVESEALING SLEEVE
-
90026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
1059039006000 IGNITION COIL "IG5128"IGNITION COIL "IG5128"
-
1150439013000 DISTANCE UNITDISTANCE UNIT
-
1250439004000 STATORSTATOR
-
1350439004010 PICK UP BRACKETPICK UP BRACKET
-
140014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
-
150912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
1750430002000 IGNITION COVERSIGNITION COVERS
-
180025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
190021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2060308006000 COLLAR BUSHING 6,2X9,2X15X12,5COLLAR BUSHING 6,2X9,2X15X12,5
