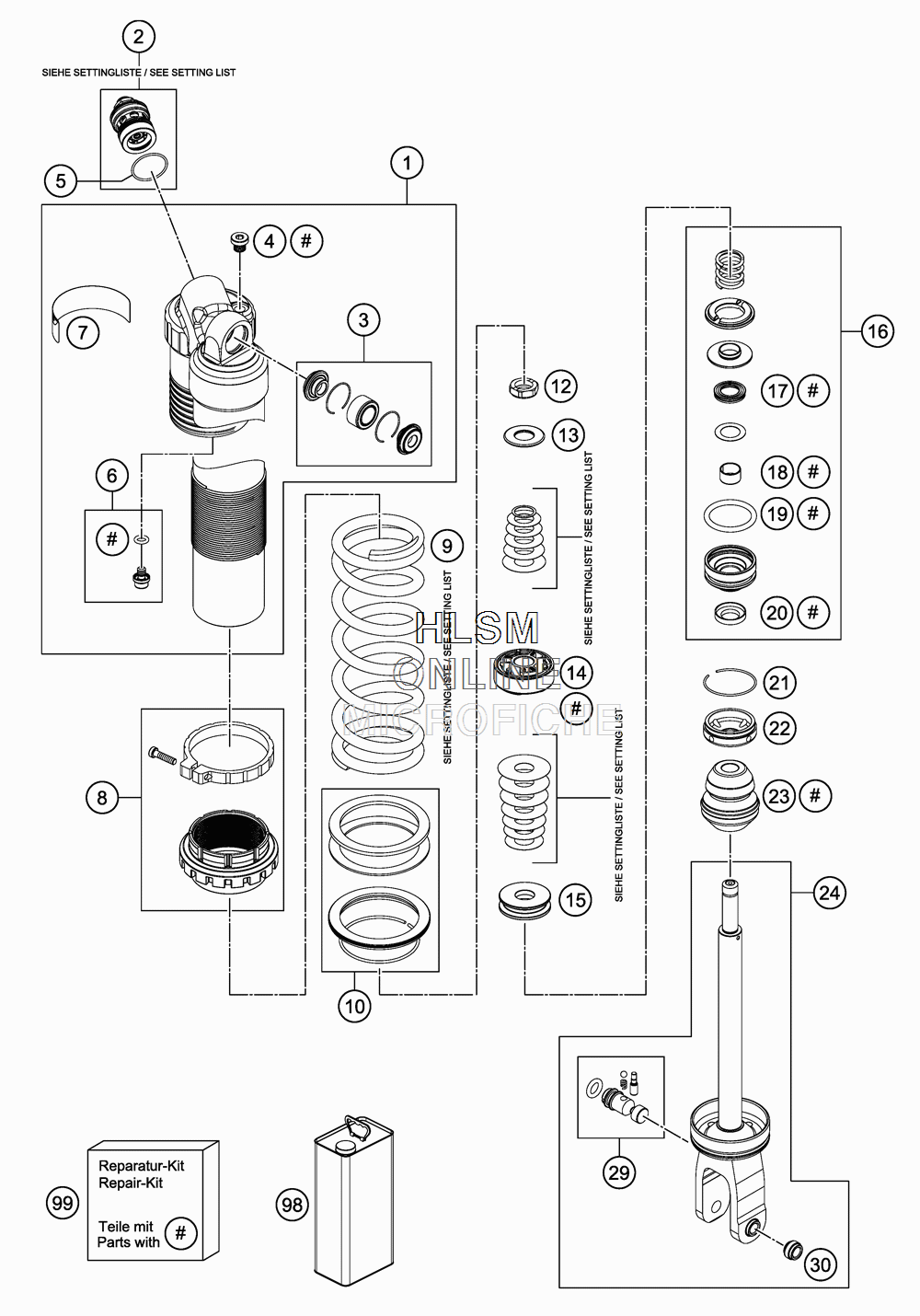

SHOCK ABSORBER DISASSEMBLED для Ktm 250 SXF - 2016 года выпуска
-
№АртикулНазвание
-
150181040S1 MONOSOCK UPPER PARTMONOSOCK UPPER PART
-
250181101S1 DCC-COMPR.DAMP.CONTROLDCC-COMPR.DAMP.CONTROL
-
250181101S2 DCC-COMPR.DAMP.CONTROLDCC-COMPR.DAMP.CONTROL
-
250181101S3 DCC-COMPR.DAMP.CONTROLDCC-COMPR.DAMP.CONTROL
-
3R12025 REP.KITBEAR./SEALREP.KITBEAR./SEAL
-
450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
550180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
636120151S PLUG SCREW M5X6PLUG SCREW M5X6
-
752000128 STICKER W PWSTICKER W PW
-
850180991S SPRING ADJUSTER PLASTICSPRING ADJUSTER PLASTIC
-
991210106S SPRING 247 42 N/MMSPRING 247 42 N/MM
-
991210107S SPRING 247 45 N/MMSPRING 247 45 N/MM
-
991210108S SPRING 247 48 N/MMSPRING 247 48 N/MM
-
991210109S SPRING 252 51 N/MMSPRING 252 51 N/MM
-
1050180824S SPRINGPLATESPRINGPLATE
-
1250181112 PISTON ROD NUTPISTON ROD NUT
-
1350181092 REBOUND DISC 12X34REBOUND DISC 12X34
-
1450181030E PISTON ID121PISTON ID121
-
1550181091 REBOUND DISC 12X43REBOUND DISC 12X43
-
1650180603SA ADAPTER D50 H28 CPL.ADAPTER D50 H28 CPL.
-
1750180605S SEAL D18X30X5SEAL D18X30X5
-
1846180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
1950180103 O-RING 41X5O-RING 41X5
-
2050180606 DUST SEAL 1828DUST SEAL 1828
-
2150180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
2250180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
2350181100 BUMP RUBBER 57X18BUMP RUBBER 57X18
-
2450181032S1 MONOSHOCK BOTTOM PARTMONOSHOCK BOTTOM PART
-
2950181094S ADJUSTING SCREW M8X0,5ADJUSTING SCREW M8X0,5
-
3046811205 ADAPTOR-BUSH M10X1,50, D=15ADAPTOR-BUSH M10X1,50, D=15
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12029 REP.KITREP.KIT
