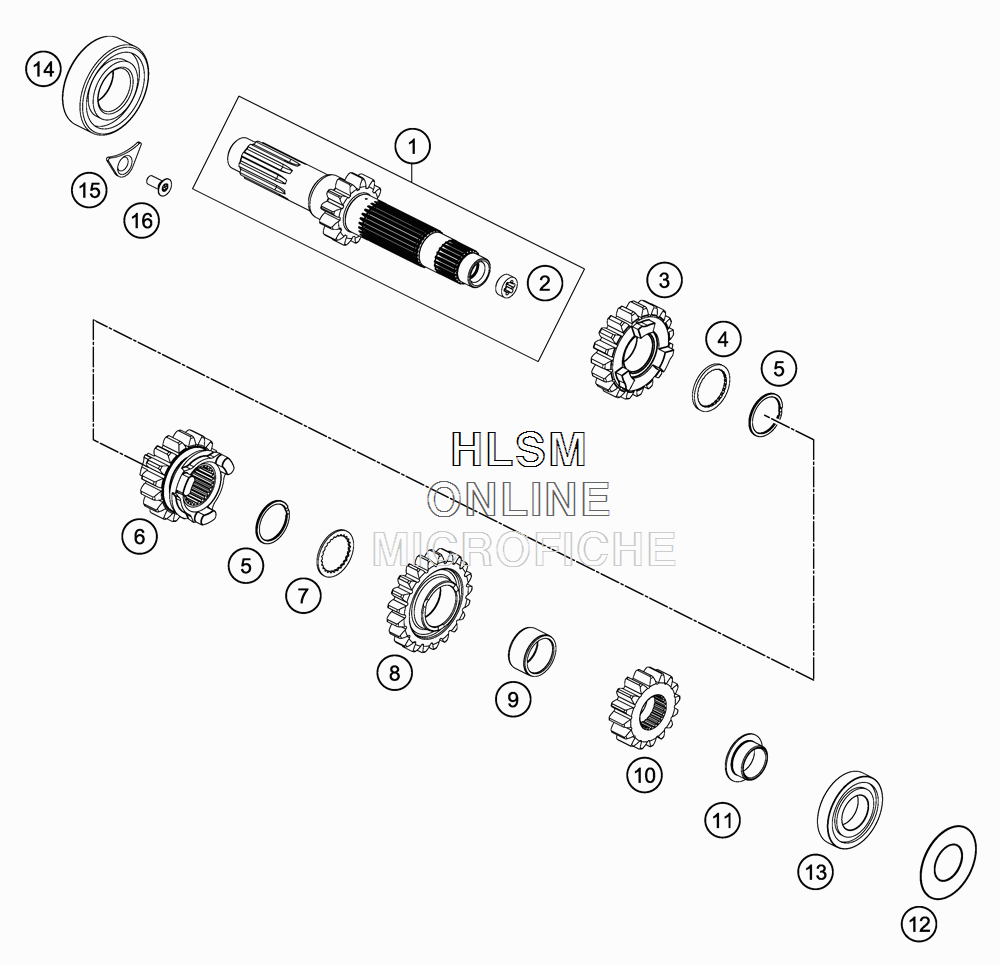

TRANSMISSION - MAIN SHAFT для Ktm 250 SXF - 2016 года выпуска
-
№АртикулНазвание
-
179033001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
278033001110 BUSHINGBUSHING
-
379033004044 IDLER GEAR 4. GEAR CPL.IDLER GEAR 4. GEAR CPL.
-
479033040000 STOP DISC 22X0,8X30X26X7STOP DISC 22X0,8X30X26X7
-
50471022000 CIRCLIP XDNS-22 S02CIRCLIP XDNS-22 S02
-
679033003000 SLIDING GEAR 3.G.SLIDING GEAR 3.G.
-
779033042000 STOP DISC 22X0,8X30X26X7STOP DISC 22X0,8X30X26X7
-
879033005000 IDLER GEAR 5. GEARIDLER GEAR 5. GEAR
-
90405202413 NEEDLE BEAR. K20X24X13NEEDLE BEAR. K20X24X13
-
1079033002000 SOLID GEAR 2.GSOLID GEAR 2.G
-
1177733027000 BUSHINGBUSHING
-
1277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
130625160041 BALL BEARING TMBALL BEARING TM
-
140625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1575030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
160019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
