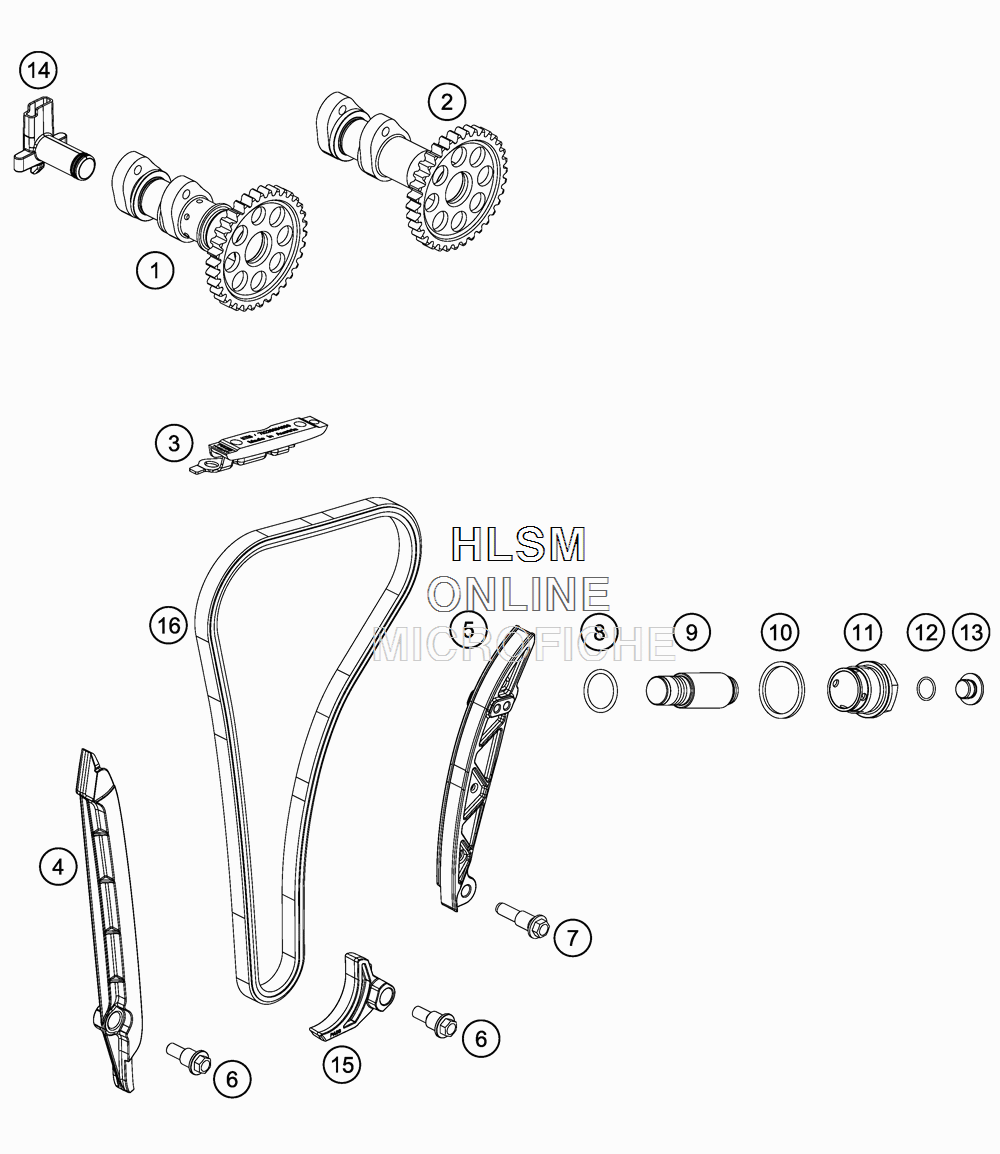

TIMING DRIVE для Ktm 250 XCF - 2016 года выпуска
-
№АртикулНазвание
-
179036009000 CAMSHAFT INTAKECAMSHAFT INTAKE
-
279036010000 CAMSHAFT EXHAUSTCAMSHAFT EXHAUST
-
379236004000 TIMING CHAIN GUIDE TOPTIMING CHAIN GUIDE TOP
-
479236001000 GUIDE RAILGUIDE RAIL
-
579236002000 TENSIONING RAILTENSIONING RAIL
-
677236001160 BUSHING SCREWBUSHING SCREW
-
777236002160 BUSHING SCREW M8BUSHING SCREW M8
-
80770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
977036003000 CHAIN ADJUSTER HYD.CHAIN ADJUSTER HYD.
-
100603242920 CU SEAL-RING DIN7603 A24X29X2CU SEAL-RING DIN7603 A24X29X2
-
1177336008000 HOLDING BOLT M24X1,5HOLDING BOLT M24X1,5
-
120770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
1377236080000 SCREW PLUGSCREW PLUG
-
1477236081000 ANGLE PIECE F. BREATHER SYSTEMANGLE PIECE F. BREATHER SYSTEM
-
1577236005000 SECURING PROTECTIONSECURING PROTECTION
-
1679236013100 TIMING CHAINTIMING CHAIN
