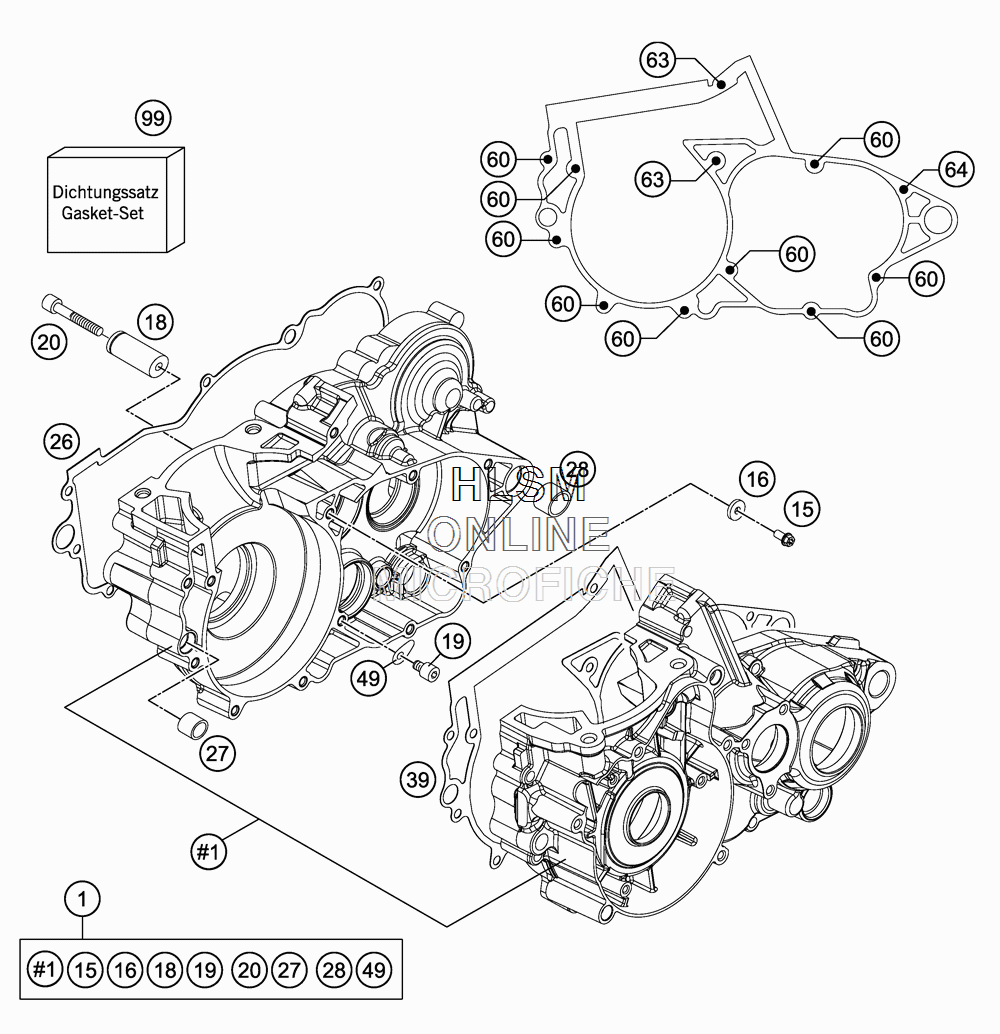

ENGINE CASE для Ktm 250 XCW - 2016 года выпуска
-
№АртикулНазвание
-
155130000344 ENGINE CASE CPL. 250/300 2012ENGINE CASE CPL. 250/300 2012
-
150025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1650232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1859033018000 BUSHING PINBUSHING PIN
-
190912060123 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
200912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2654830024100 CLUTCH COVER GASKET INSIDECLUTCH COVER GASKET INSIDE
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12DOWEL 21X12
-
3954830039000 ENGINE CASE GASKETENGINE CASE GASKET
-
4954634049000 RETAINING PLATERETAINING PLATE
-
600025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
630025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
640025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
9955130099001 GASKET SET 250/300GASKET SET 250/300
