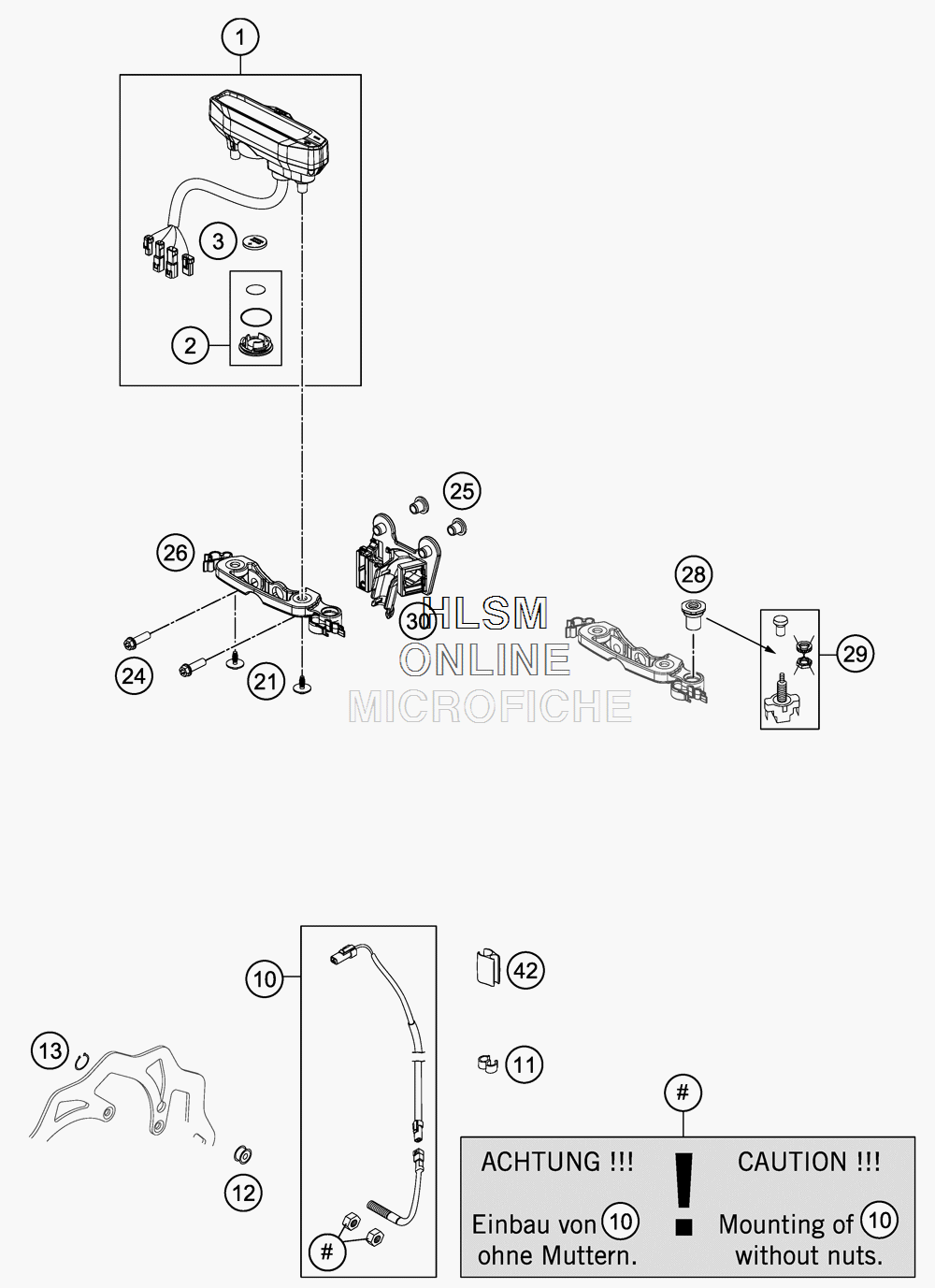

INSTRUMENTS LOCK SYSTEM для Ktm 250 XCW - 2016 года выпуска
-
№АртикулНазвание
-
177714069200 SPEEDOMETER REPROGRAMMABLE KMH/MPHSPEEDOMETER REPROGRAMMABLE KMH/MPH
-
277714069010 BATTERY COVER F . SPEEDOMETERBATTERY COVER F . SPEEDOMETER
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
1054814068100 CABLE FOR DIGITAL SPEEDOMETERCABLE FOR DIGITAL SPEEDOMETER
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
210081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
240024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2559030060050 BUSHING F. SPROCKET COVER RAC.BUSHING F. SPROCKET COVER RAC.
-
2677714060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
2854814060050 SPEC. NUT F. PULL SWITCH WS=17SPEC. NUT F. PULL SWITCH WS=17
-
2955011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
3077711083000 SUPPORT BRACKETSUPPORT BRACKET
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
