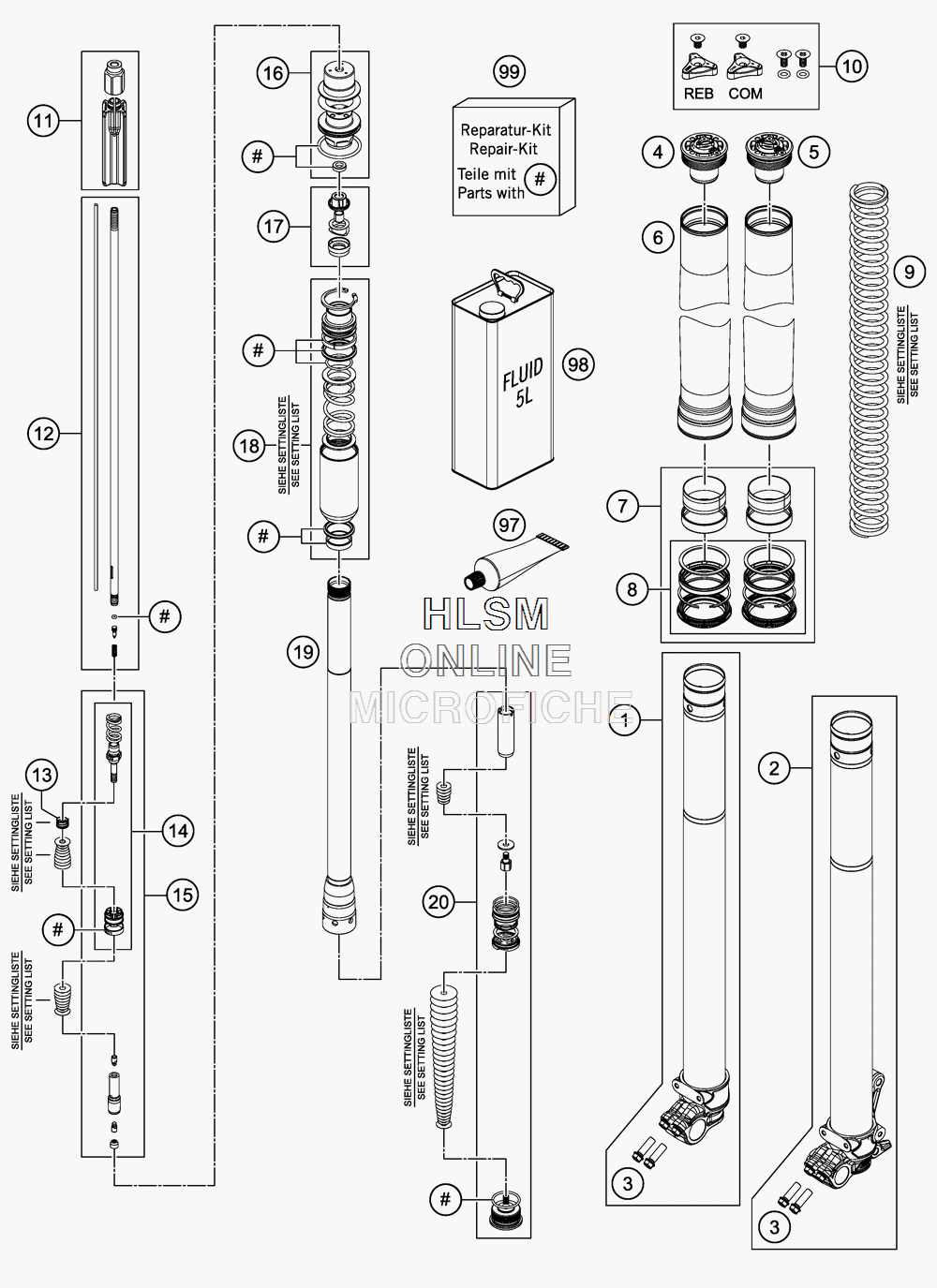

FRONT FORK DISASSEMBLED для Ktm 300 XCW SIX DAYS - 2016 года выпуска
-
№АртикулНазвание
-
148601326S1 AXLE CLAMP L/S WITH INNER TUBEAXLE CLAMP L/S WITH INNER TUBE
-
248601327S1 AXLE CLAMP R/S WITH INNER TUBEAXLE CLAMP R/S WITH INNER TUBE
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
448601050E SCREW CAP M51X1,5 REB. KPL.SCREW CAP M51X1,5 REB. KPL.
-
548601116E SCREW CAP M51X1,5 CPL.SCREW CAP M51X1,5 CPL.
-
648600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
7R14063 FORK REP . KIT 48MM OFFROADFORK REP . KIT 48MM OFFROAD
-
8R14040 GASKET KIT CPL.GASKET KIT CPL.
-
991410100S SPRING 4,0N/MM SET D=4,9MMSPRING 4,0N/MM SET D=4,9MM
-
991410101S SPRING 4,2N/MM SET D=4,9MMSPRING 4,2N/MM SET D=4,9MM
-
991410102S SPRING 4,4N/MM SET D=4,9MMSPRING 4,4N/MM SET D=4,9MM
-
991410103S SPRING 4,6N/MM SET D=4,9MMSPRING 4,6N/MM SET D=4,9MM
-
991410104S SPRING 4,8N/MM SET D=4,9MMSPRING 4,8N/MM SET D=4,9MM
-
10R14033 SCREW CAP SMALL PART KITSCREW CAP SMALL PART KIT
-
1148601035S SPRING GUIDE CPL.SPRING GUIDE CPL.
-
1248601343S PISTON ROD CPL.PISTON ROD CPL.
-
1348600382 SHUTTLE VALVE SPRING C=0,4SHUTTLE VALVE SPRING C=0,4
-
14R14056 TAP KITTAP KIT
-
1548601390S3 ADAPTER D20 COMPR. CPL.ADAPTER D20 COMPR. CPL.
-
16R14035 SCREW SLEEVE KITSCREW SLEEVE KIT
-
174861025S1 CONTROL V AL VE D21 CPL.CONTROL V AL VE D21 CPL.
-
1848601315S4 PRESSURE T ANK CPL.PRESSURE T ANK CPL.
-
1948601031S1 TUBE L403 + ADAPTERTUBE L403 + ADAPTER
-
2048601522S SCREW CAP CPL.SCREW CAP CPL.
-
97T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
9848601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
99R24002 O-RING SET 4CSO-RING SET 4CS
