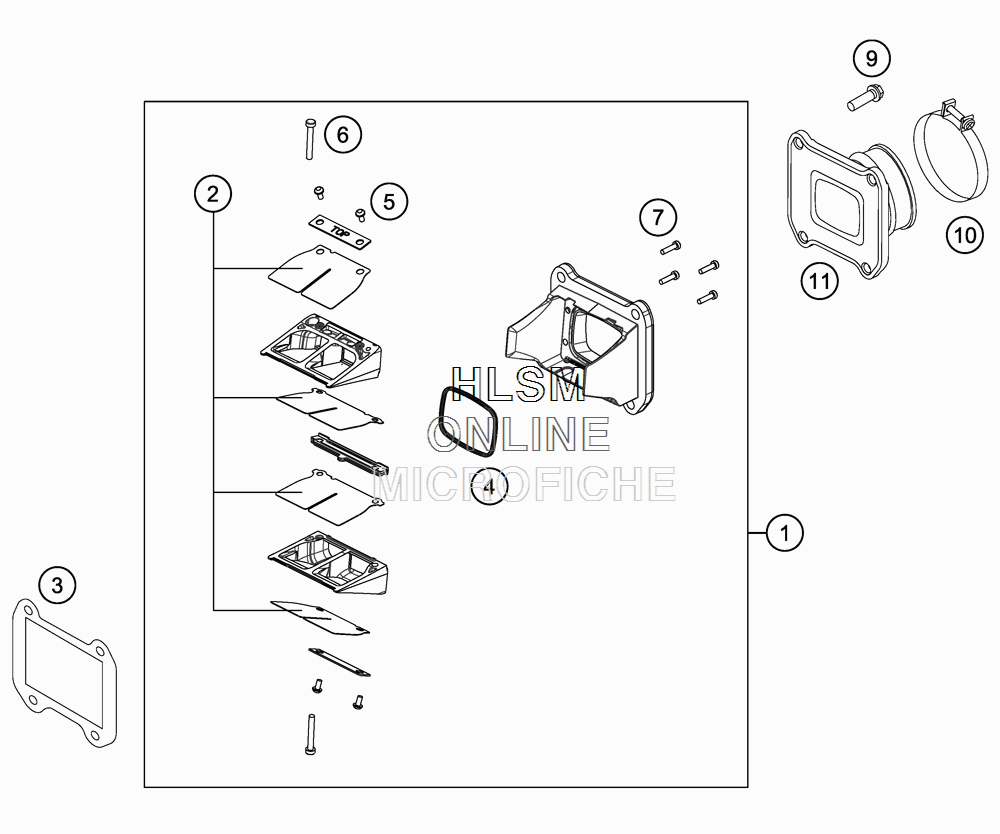

REED V AL VE CASE для Ktm 300 XCW SIX DAYS - 2016 года выпуска
-
№АртикулНазвание
-
154830151044 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
254830052344 REED VALVE SETREED VALVE SET
-
354830062200 GASKET REED VALVE CASEGASKET REED VALVE CASE
-
454830153050 GASKET SUPPORTING PLATEGASKET SUPPORTING PLATE
-
50081030063 EJOT DELTA PT SCREW 30X6EJOT DELTA PT SCREW 30X6
-
60081035253 EJOT DELTA PT SCREW 35X25EJOT DELTA PT SCREW 35X25
-
70081030124 EJOT DELTA PT SCREW 30X12EJOT DELTA PT SCREW 30X12
-
90025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
1154830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
