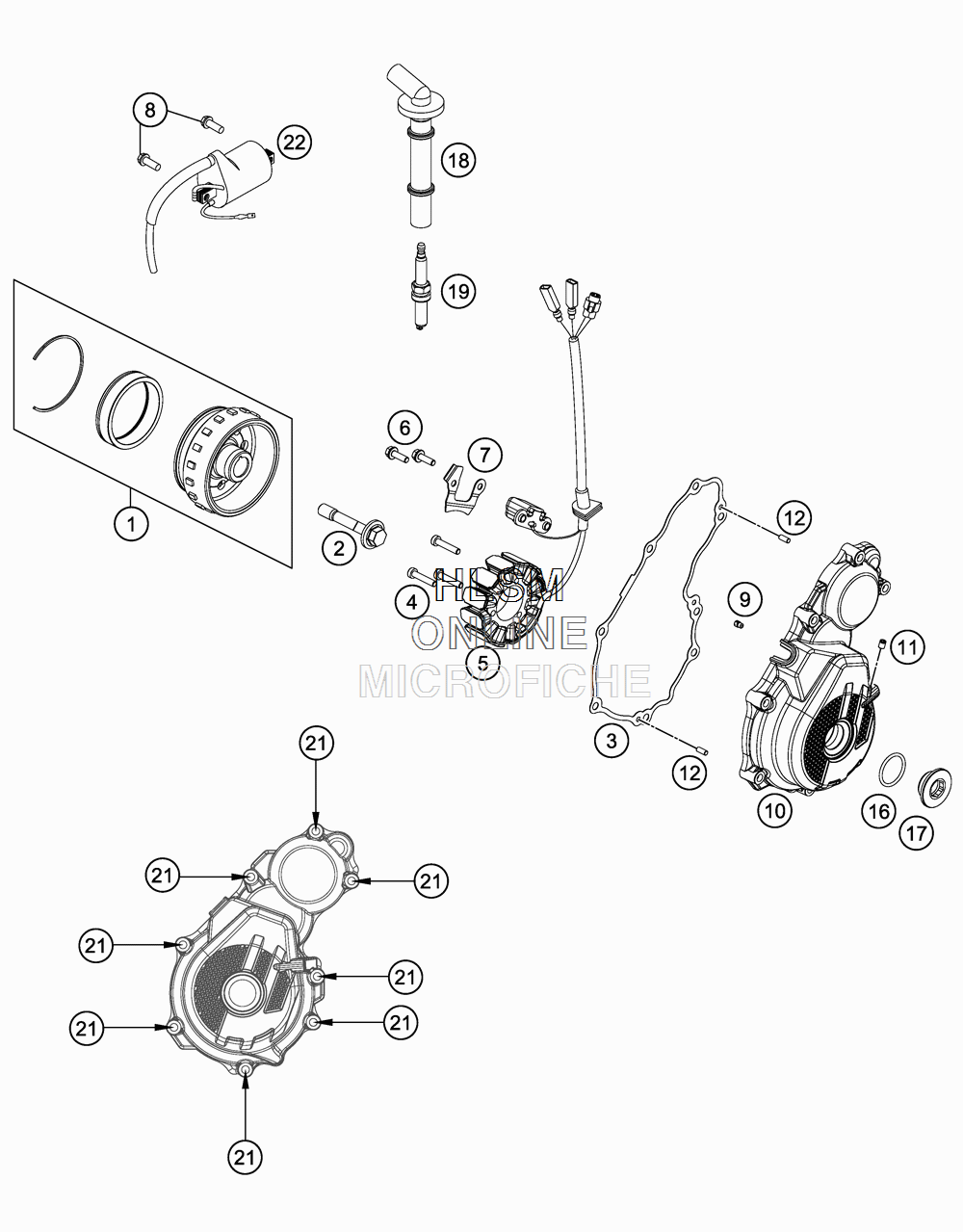

IGNITION SYSTEM для Ktm 350 SXF - 2016 года выпуска
-
№АртикулНазвание
-
179239005044 ROTOR EFI CPL.ROTOR EFI CPL.
-
277339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
379230040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
40012050253 AH SCREW DIN6912 M5X25AH SCREW DIN6912 M5X25
-
579239004000 STATORSTATOR
-
60025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
779230002050 CABLE HOLDER PLATECABLE HOLDER PLATE
-
80026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
980030058060 OIL JET "60" M4OIL JET "60" M4
-
107923000200015 IGNITION COVERIGNITION COVER
-
110913050063 THREAD PIN DIN 913 M5X6THREAD PIN DIN 913 M5X6
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
1607700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
177723000216030 SCREW PLUG M24X1,5SCREW PLUG M24X1,5
-
1877239090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
1977239093000 PLUG NGK LMAR9AI - 8PLUG NGK LMAR9AI - 8
-
210025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2258439006000 IGNITIONCOIL IG3826 KOKUSAN'96IGNITIONCOIL IG3826 KOKUSAN'96
