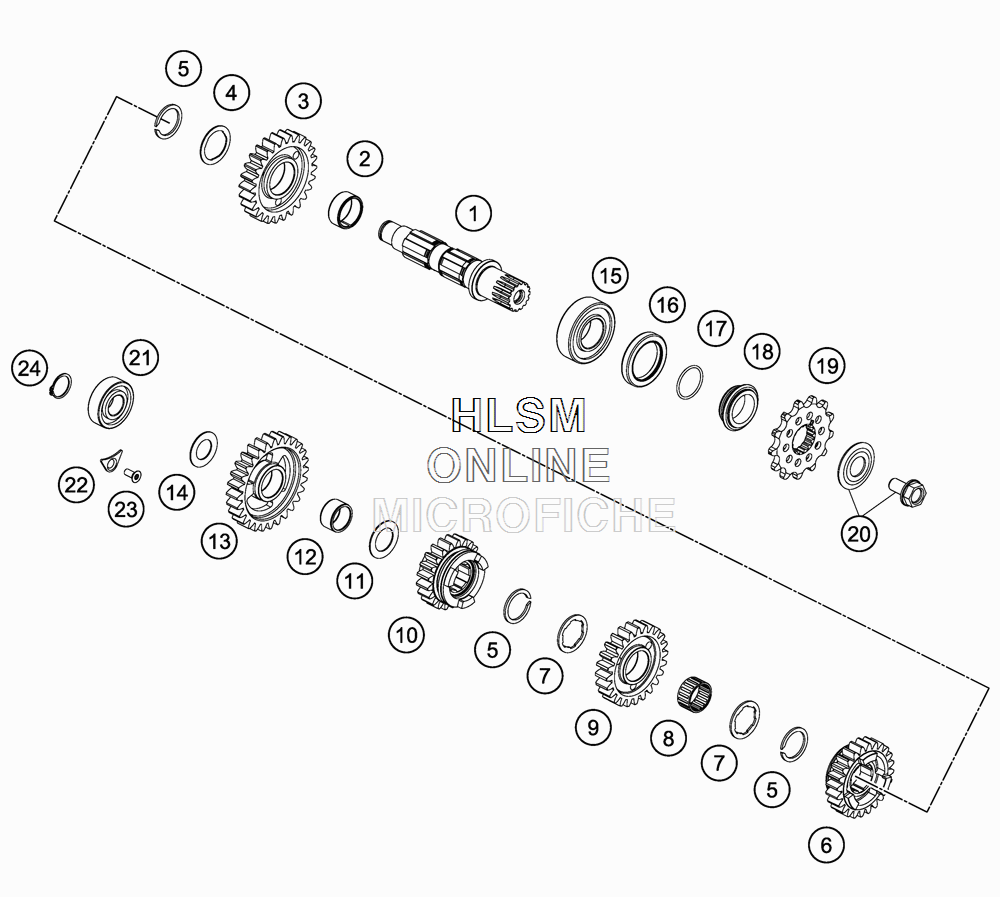

TRANSMISSION - COUNTERSHAFT для Ktm 350 SXF - 2016 года выпуска

№

Артикул

Название
1

77233010000 COUNTERSHAFT

COUNTERSHAFT

27 690 ₽
2

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
3

54833012100 IDLER GEAR 2ND G. 26-T "2S26"

IDLER GEAR 2ND G. 26-T "2S26"

19 120 ₽
4

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
5

77033022000 AXIAL-CIRCLIP 25X1,65

AXIAL-CIRCLIP 25X1,65

970 ₽
6

54833014000 SLIDING GEAR 4TH G.24-T "4S24"

SLIDING GEAR 4TH G.24-T "4S24"

49 680 ₽
7

59033030000 STOP DISC 25,2X32X1,5

STOP DISC 25,2X32X1,5

500 ₽
8

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
9

54833013000 IDLER GEAR 3RD G. 24-T "3S24"

IDLER GEAR 3RD G. 24-T "3S24"

0 ₽
10

54833015000 SLIDING GEAR 5TH G.21-T "5S21"

SLIDING GEAR 5TH G.21-T "5S21"

41 240 ₽
11

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
12

0405202413 NEEDLE BEAR. K20X24X13

NEEDLE BEAR. K20X24X13

2 920 ₽
13

54833011100 IDLER GEAR 1.G 28Z

IDLER GEAR 1.G 28Z

19 980 ₽
14

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
15

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
16

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
17

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
18

78133014000 SPACER SLEEVE COUNTER

SPACER SLEEVE COUNTER

7 650 ₽
19

79233029014 SPROCKET 14T

SPROCKET 14T

8 110 ₽
19

79233029013 SPROCKET 13T

SPROCKET 13T

8 110 ₽
20

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
21

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
22

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
23

0019050121S INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

290 ₽
24

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
