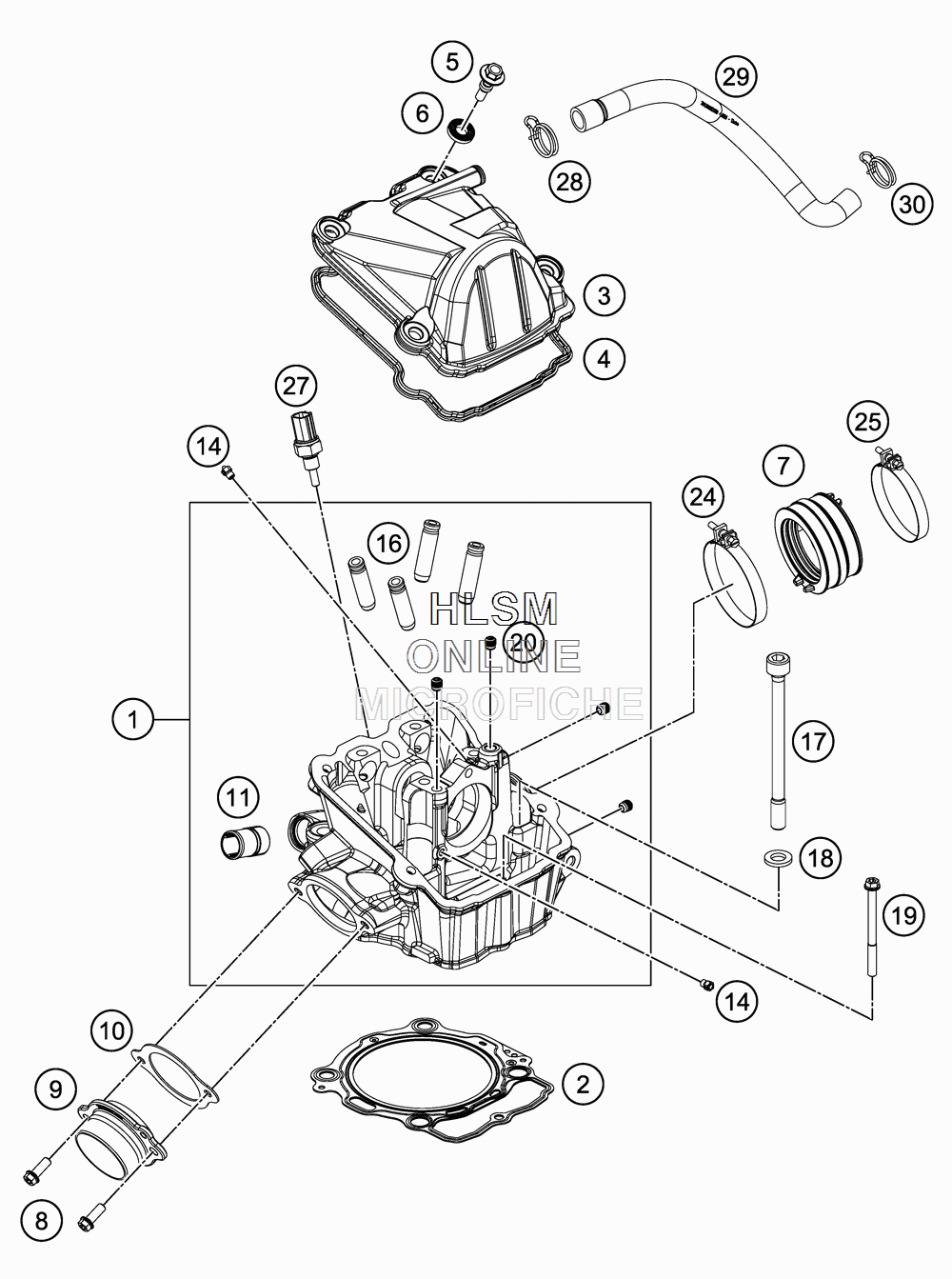

CYLINDER HEAD для Ktm 450 SXF - 2016 года выпуска
-
№АртикулНазвание
-
179436020044 CYLINDER HEAD CPL.CYLINDER HEAD CPL.
-
279430036010 CYLINDER HEAD GASKET (DN95)CYLINDER HEAD GASKET (DN95)
-
37943605200033 VALVE COVERVALVE COVER
-
479436053000 VALVE COVER GASKETVALVE COVER GASKET
-
578036054100 VALVE COVER SCREWVALVE COVER SCREW
-
675036052010 DECOUPLING ELEMENTDECOUPLING ELEMENT
-
779236044100 RUBBER CUPRUBBER CUP
-
80025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
978136139000 EXHAUST FLANGEEXHAUST FLANGE
-
1078036041000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
1158030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
1460030063070 OIL JET 70 M5OIL JET 70 M5
-
1678136025001 VALVE GUIDE INTAKEVALVE GUIDE INTAKE
-
1778030044000 CYL. HEAD SCREW M10X1,25 L=125CYL. HEAD SCREW M10X1,25 L=125
-
1877336089010 WASHER 19X10,5X2,5WASHER 19X10,5X2,5
-
190025060706 HH COLLAR SCREW M6X70HH COLLAR SCREW M6X70
-
2059030296000 SCREW PLUGSCREW PLUG
-
2461036047000 HOSE CLAMP GEMI 63MMHOSE CLAMP GEMI 63MM
-
2577236048000 HOSE CLAMP GEMI 58MMHOSE CLAMP GEMI 58MM
-
2779435047000 TEMPERATUR SENSOR WATERTEMPERATUR SENSOR WATER
-
2860306082000 CLAMP YDNAC 10173 (19MM)CLAMP YDNAC 10173 (19MM)
-
2979430087000 ENGINE BREATHING HOSEENGINE BREATHING HOSE
-
3058431082100 YDNAC-CLAMP 10173 (16MM)YDNAC-CLAMP 10173 (16MM)
