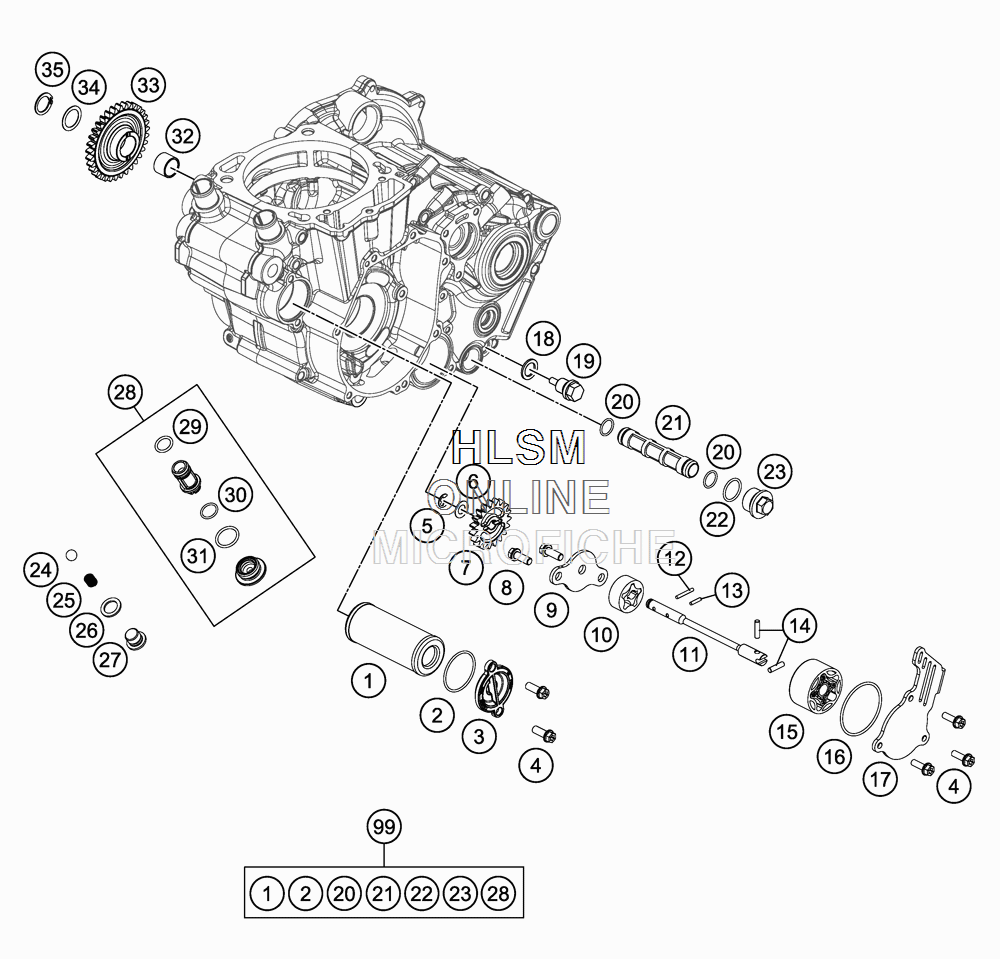

LUBRICATING SYSTEM для Ktm 450 SXF - 2016 года выпуска
-
№АртикулНазвание
-
177338005100 OIL FILTEROIL FILTER
-
207703305178 O-RING 33,05X1,78O-RING 33,05X1,78
-
377338041200 OIL FILTER COVEROIL FILTER COVER
-
40025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
50799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
658038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
779438001019 OIL PUMP SPROCKET 19TOIL PUMP SPROCKET 19T
-
80025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
979438003000 OIL PUMP COVEROIL PUMP COVER
-
1059038011112 OILPUMP ROTOR-SET 12MM CPL.OILPUMP ROTOR-SET 12MM CPL.
-
1179438002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
120402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
130402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
140402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
1561238011100 ROTOR SET 22MMROTOR SET 22MM
-
160770440020 O-RING 44,00X2,00 VITONO-RING 44,00X2,00 VITON
-
1779438004100 OIL PUMP COVEROIL PUMP COVER
-
1858038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1958030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2007701250151 O-RING 12,5X1,5 VITON V75O-RING 12,5X1,5 VITON V75
-
2159038016100 OIL SCREENOIL SCREEN
-
220770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
2359038017100 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
240401090003 BALL DIN5401-9BALL DIN5401-9
-
2579438026000 PRESSURE SPRINGPRESSURE SPRING
-
2658038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
2778036024000 PLUG SCREW SAS M12X1,5PLUG SCREW SAS M12X1,5
-
2878138015001 OIL SCREEN CPL.OIL SCREEN CPL.
-
290770012021 O-RING 12X2 VITON (GREEN)O-RING 12X2 VITON (GREEN)
-
300770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
310770170200 O-RING 17,00X2,00O-RING 17,00X2,00
-
3279438001010 NEEDLE BEARING INNER RINGNEEDLE BEARING INNER RING
-
3379438001033 IDLER WHEEL 33TIDLER WHEEL 33T
-
340988162205 THRUST WASH. DIN0988-16X22X0,5THRUST WASH. DIN0988-16X22X0,5
-
350471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
9979438015010 OIL FILTER SERVICE KITOIL FILTER SERVICE KIT
