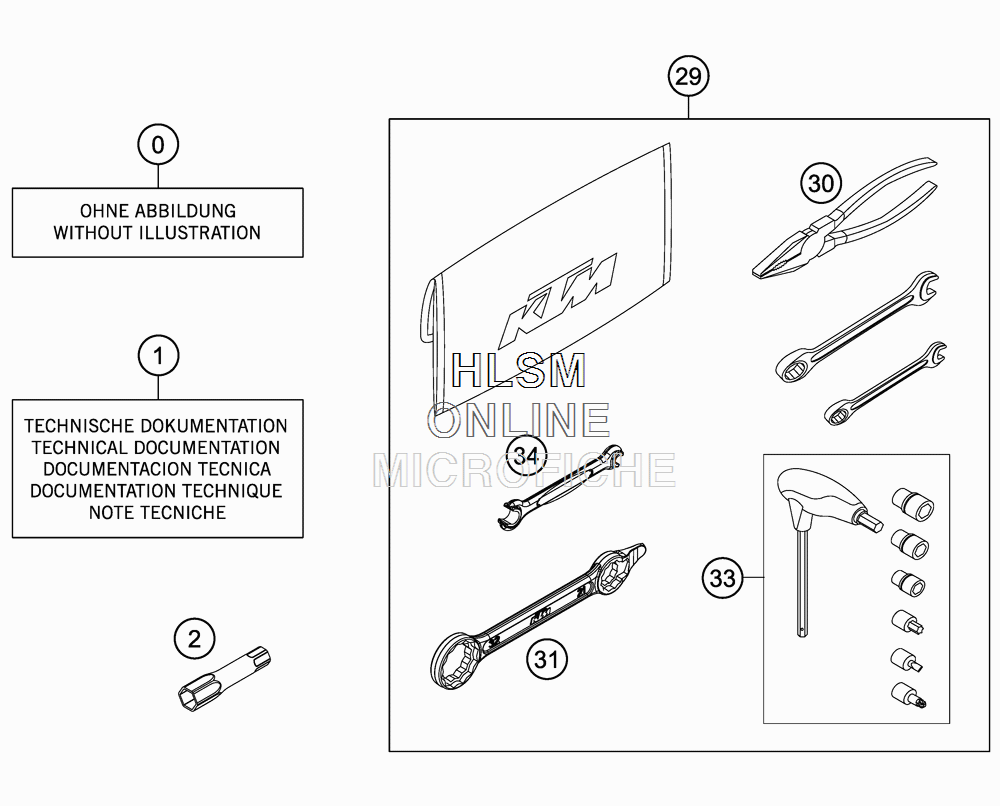

ACCESSORIES KIT для Ktm 500 EXC SIX DAYS - 2016 года выпуска
-
№АртикулНазвание
-
078141013190 FUEL FILTERFUEL FILTER
-
078103996000 CHAIN SPROCKET GUARDCHAIN SPROCKET GUARD
-
000063004202 PRINT LABEL 60X51PRINT LABEL 60X51
-
052000115 STICKER FRONT FORK-SET WP"4CS"STICKER FRONT FORK-SET WP"4CS"
-
00019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
00025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
00025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
00025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
050208020000 SPACER BUSHING 7X10X7,5SPACER BUSHING 7X10X7,5
-
078132975000 CASE GUARDCASE GUARD
-
0312305 DOCUMENTS BAGDOCUMENTS BAG
-
000063099009 T APE BROWN 5CMX66T APE BROWN 5CMX66
-
0312313 KTM BALLPOINT PEN (ORANGE)KTM BALLPOINT PEN (ORANGE)
-
000063004012 HEADLIGHT MASKHEADLIGHT MASK
-
03210039 CUSTOMER WELCOMECUSTOMER WELCOME
-
0UPP1500010 2015 PP OFFROAD CATALOG2015 PP OFFROAD CATALOG
-
058012040000 REAR MIRROR L/SREAR MIRROR L/S
-
058012040150 CLAMP FOR MIRRORCLAMP FOR MIRROR
-
058012140000 REAR MIRROR R/SREAR MIRROR R/S
-
058411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
058412080000 REFLECTOR REDREFLECTOR RED
-
058511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
077202002144 BAR PAD CPL.BAR PAD CPL.
-
077203094000 PLASTIC FRAME PROTECTION SETPLASTIC FRAME PROTECTION SET
-
078003040033 FOOTREST L/S + R/S CPL.FOOTREST L/S + R/S CPL.
-
07770217900028 HAND GUARDS CPL. L/S+R/S (WHITE)HAND GUARDS CPL. L/S+R/S (WHITE)
-
081212016100 WASH CAP SETWASH CAP SET
-
0U6915PWC 2015 POWERWEAR CATALOG2015 POWERWEAR CATALOG
-
0777080100002 8C FR. FENDER W . DECAL SIX DAYS8C FR. FENDER W . DECAL SIX DAYS
-
07900998106004 FRONT AXLE PULLER KTM CPLFRONT AXLE PULLER KTM CPL
-
078135936100 RADIA TOR PROTECTORRADIA TOR PROTECTOR
-
07900996100030 BRAKE DISC GUARD CPL.BRAKE DISC GUARD CPL.
-
078103190100 SKID PLATE PLASTIC CPL.SKID PLATE PLASTIC CPL.
-
054812063044 REAR BRAKE PEDAL SAFETY WIREREAR BRAKE PEDAL SAFETY WIRE
-
078107990100 FUEL FILTERFUEL FILTER
-
05021204000030 MIRROR L/S (BLACK) ACERBISMIRROR L/S (BLACK) ACERBIS
-
13213339EN OWNERS MANUALOWNERS MANUAL
-
278029072000 SPARK PLUG SOCKETSPARK PLUG SOCKET
-
2954829099100 TOOL KITTOOL KIT
-
3053012028200 GRIP (ORANGE) B & FGRIP (ORANGE) B & F
-
3150329080100 WRENCH SW=17/21/27/32 B & FWRENCH SW=17/21/27/32 B & F
-
3360029070300 T-WRENCH WS=6/8/10/TX45/SK4X1T-WRENCH WS=6/8/10/TX45/SK4X1
-
3450329072000 SPOKE-SPANNER WS 7/10SPOKE-SPANNER WS 7/10
