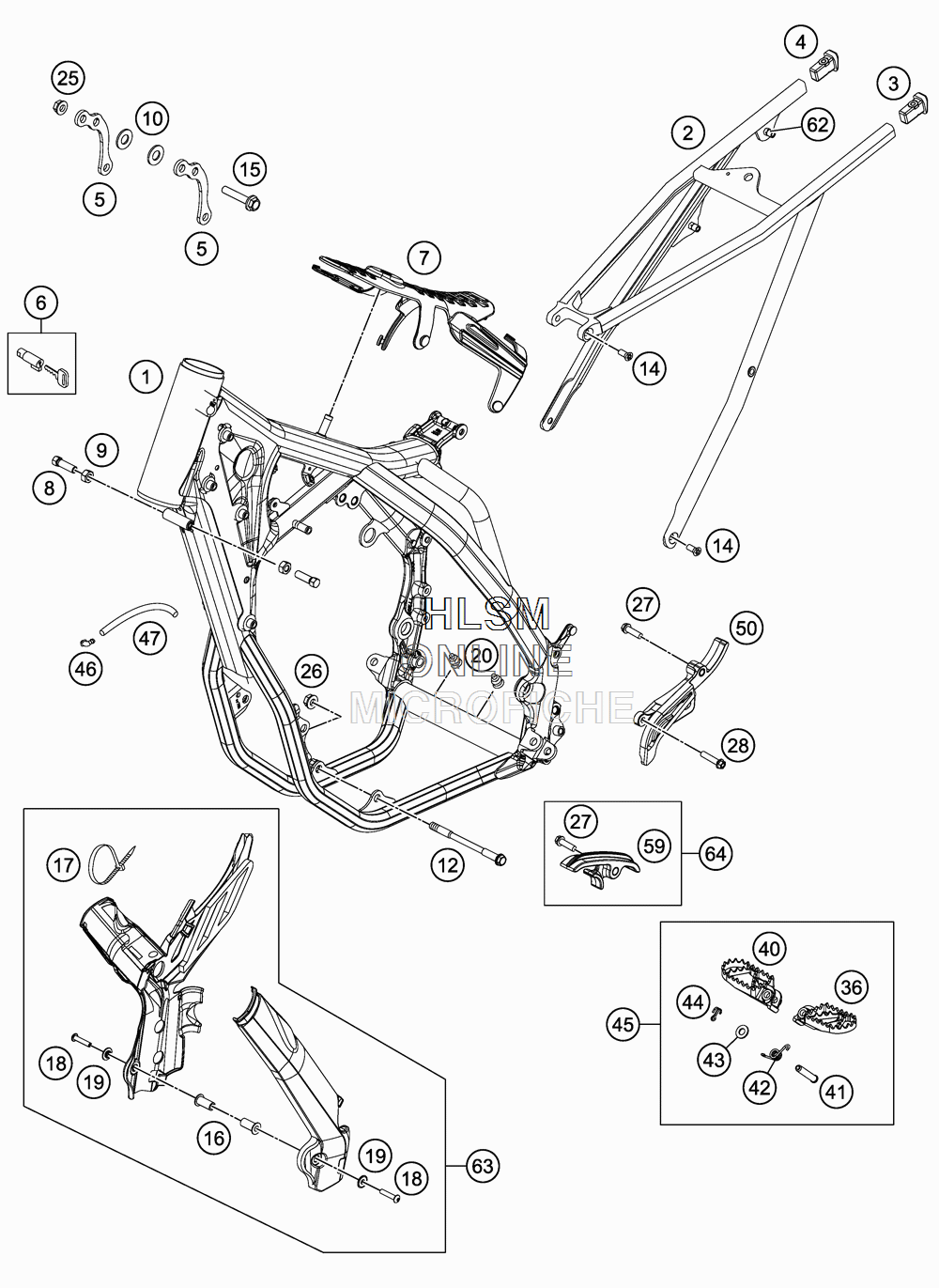

FRAME для Ktm 500 EXC SIX DAYS - 2016 года выпуска

№

Артикул

Название
1

7810310110004 FRAME "781N1" (ORANGE)

FRAME "781N1" (ORANGE)

340 ₽
2

77203002000 SUB FRAME

SUB FRAME

97 690 ₽
3

78103002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

6 050 ₽
4

78103002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

5 490 ₽
5

78703113000 REINFORCING BRACKET

REINFORCING BRACKET

1 550 ₽
6

78003035000 STEERING HEAD LOCK

STEERING HEAD LOCK

13 410 ₽
7

77207012000 TANK REST RUBBER

TANK REST RUBBER

2 160 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
10

77003013050 WASHER 8,5X18X1 INOX

WASHER 8,5X18X1 INOX

590 ₽
12

59003013000 ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

2 160 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
15

56530079000S HH COLLAR SCREW M8X44 WS13

HH COLLAR SCREW M8X44 WS13

530 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM (BLACK)

CABLE TIE 300/4,8MM (BLACK)

290 ₽
17

44011076140 CABLE TIE 140/2,5MM (BLACK)

CABLE TIE 140/2,5MM (BLACK)

100 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
20

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
25

06923080003 HEXAGON NUT DIN EN1661 M8 SW13

HEXAGON NUT DIN EN1661 M8 SW13

290 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30

HH COLLAR SCREW M8X30

700 ₽
28

0025060306 HH COLLAR SCREW M6X30

HH COLLAR SCREW M6X30

560 ₽
29

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
36

78003040050 FOOTREST L/S

FOOTREST L/S

11 770 ₽
40

78003041050 FOOTREST R/S

FOOTREST R/S

11 770 ₽
41

54803044000 PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

78003040033 FOOTREST L/S + R/S CPL.

FOOTREST L/S + R/S CPL.

31 340 ₽
46

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

78103996000 CHAIN SPROCKET GUARD

CHAIN SPROCKET GUARD

3 790 ₽
59

77203053000 CHAIN SLIDER LOWER PART CPL.

CHAIN SLIDER LOWER PART CPL.

2 080 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

880 ₽
63

77203094000 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

14 050 ₽
64

77203053010 CHAIN SLIDING KIT BELOW CPL.

CHAIN SLIDING KIT BELOW CPL.

5 060 ₽
