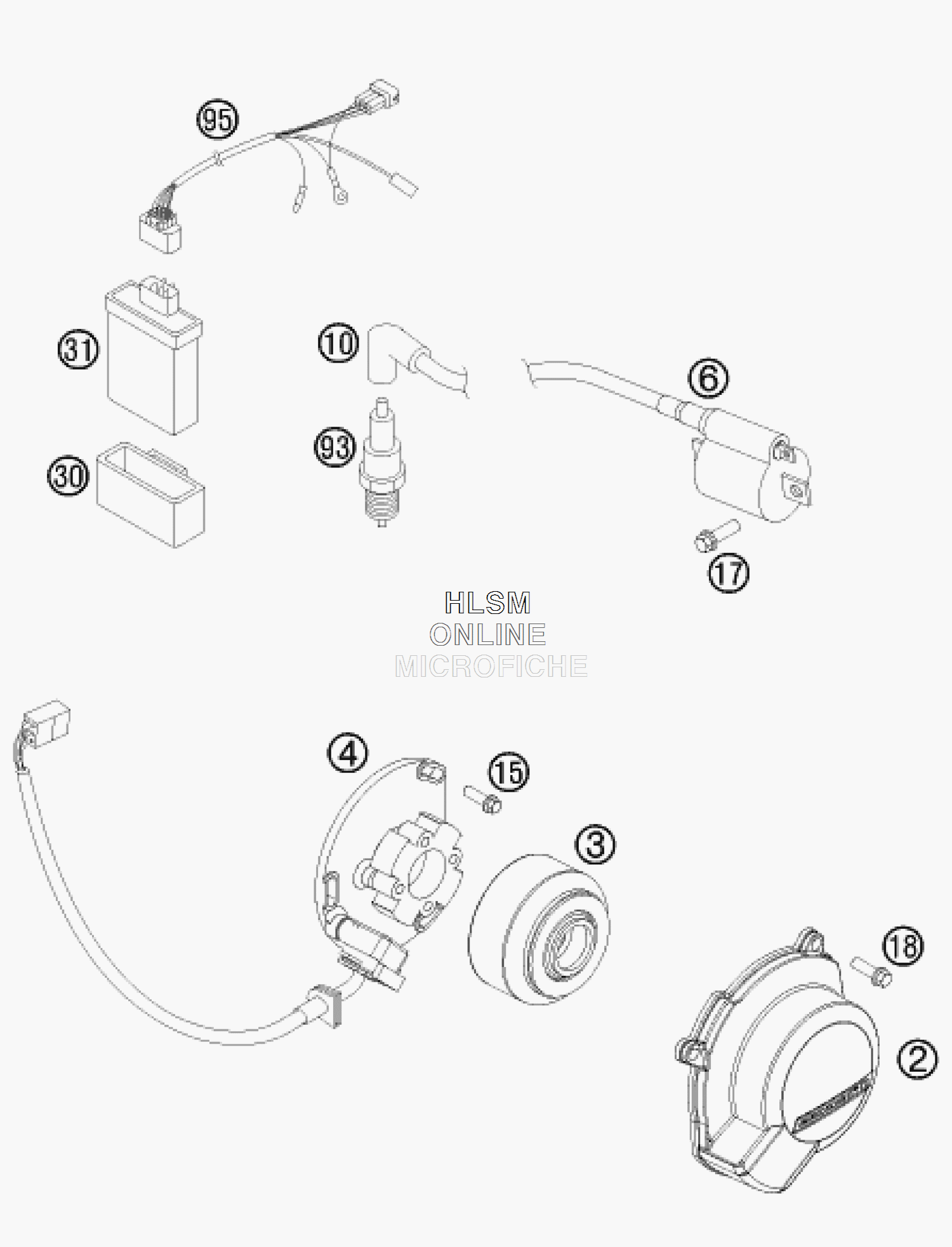

INGNITION SYSTEM для Ktm 85 SX 17/14 - 2016 года выпуска
-
№АртикулНазвание
-
247030002100 IGNITION COVERIGNITION COVER
-
346139005000 ROTORROTOR
-
446139004000 STATORSTATOR
-
646139006100 IGNITION COIL CPL.IGNITION COIL CPL.
-
1047039090000 SPARK PLUG CAP NGK REINFORC.04SPARK PLUG CAP NGK REINFORC.04
-
150015050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
170015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
180015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
3046139030000 RUBBER BR. DIGI.BOXRUBBER BR. DIGI.BOX
-
3147039031000 CDI UNITCDI UNIT
-
9351539093000 SPARK PLUG BR9ECMVXSPARK PLUG BR9ECMVX
-
9546139095000 WIRING HARNESSWIRING HARNESS
