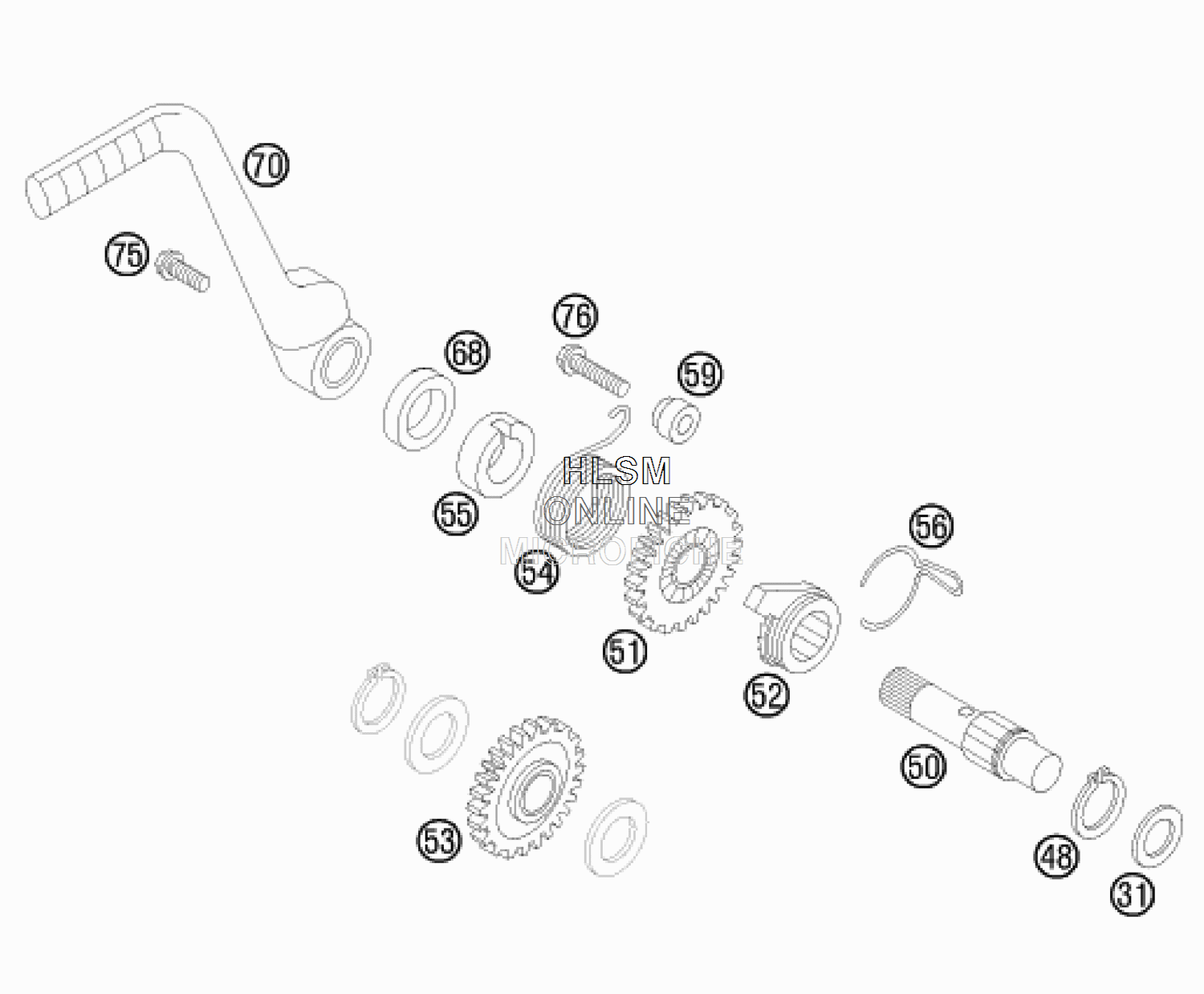

KICK STARTER для Ktm 85 SX 17/14 - 2016 года выпуска
-
№АртикулНазвание
-
3147033040000 STOP DISC 15X25X1STOP DISC 15X25X1
-
480471190120 CIRCLIP DIN0471-19X1,2CIRCLIP DIN0471-19X1,2
-
5047033050100 KICKSTARTER SHAFT LONGKICKSTARTER SHAFT LONG
-
5147033051000 KICKSTART GEARKICKSTART GEAR
-
5247033052000 RATCHET GEARRATCHET GEAR
-
5347033053000 KICKST. INTERMEDIATE GEARKICKST. INTERMEDIATE GEAR
-
5447033054000 KICKSTART SPRINGKICKSTART SPRING
-
5546033055000 DRIVING HUBDRIVING HUB
-
5647033056000 RATCHET GEAR SPRINGRATCHET GEAR SPRING
-
5947033059000 SPRING SPACERSPRING SPACER
-
680760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
7047033070000 KICKSTARTER CPL.KICKSTARTER CPL.
-
750015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
760015050253 HH COLLAR SCREW M 5X25HH COLLAR SCREW M 5X25
