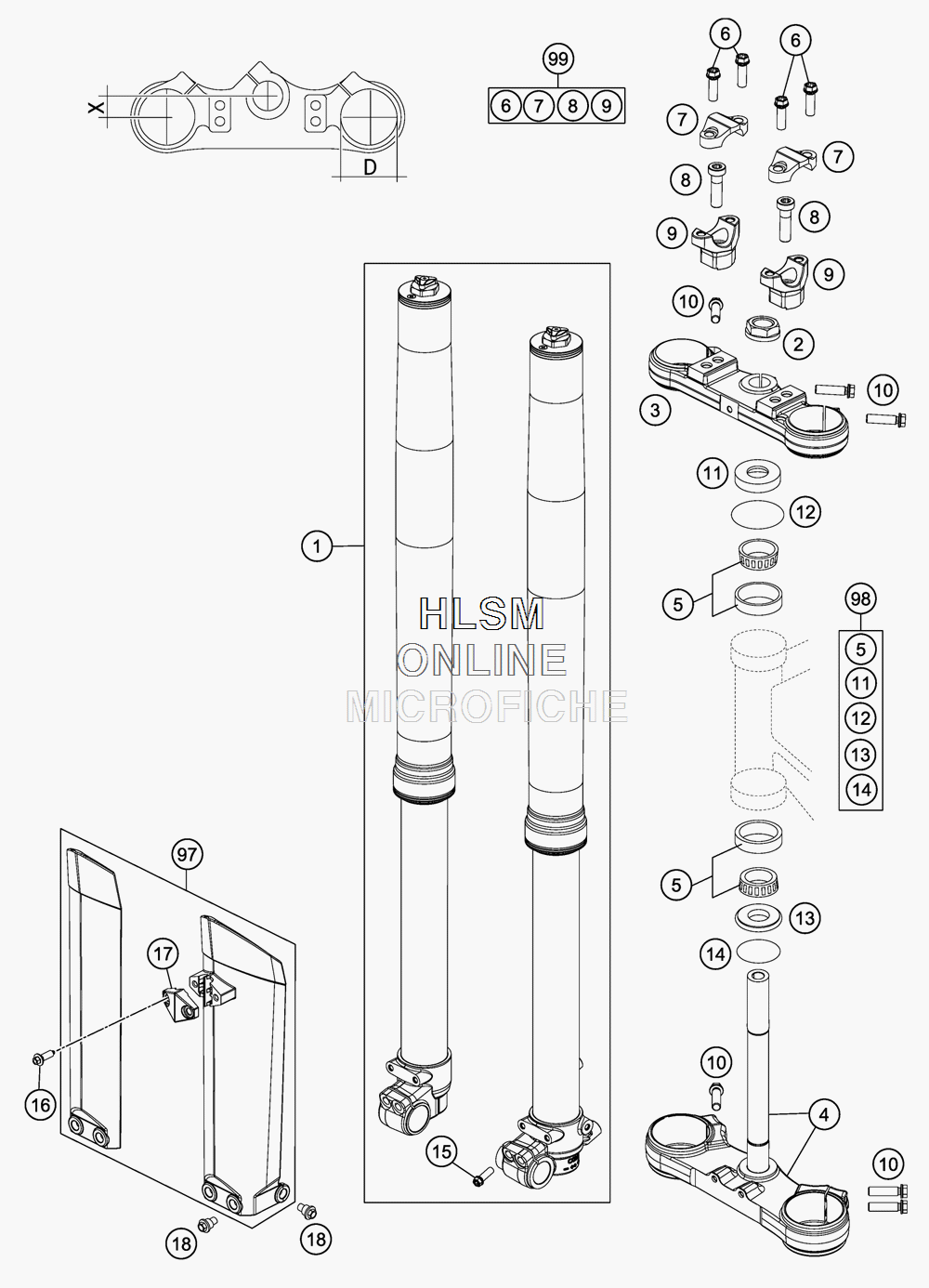

FRONT FORK TRIPLE CLAMP для Ktm 85 SX 19/16 - 2016 года выпуска
-
№АртикулНазвание
-
105187M0501 FORK WPFORK WP
-
259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
347101034114 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
447101032114 BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
60025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
777201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
80032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
100025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
1149001086000 COVERING CAPCOVERING CAP
-
120770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
1346001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
150025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
177800108500028 CLAMP F. SPEED. CABLE D=6MMCLAMP F. SPEED. CABLE D=6MM
-
1859001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
974710109400028 FORK PROTECTOR SET (WHITE)FORK PROTECTOR SET (WHITE)
-
9800050000931 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9900050000921 HANDLEBAR SUPPORT KIT D28/H37HANDLEBAR SUPPORT KIT D28/H37
