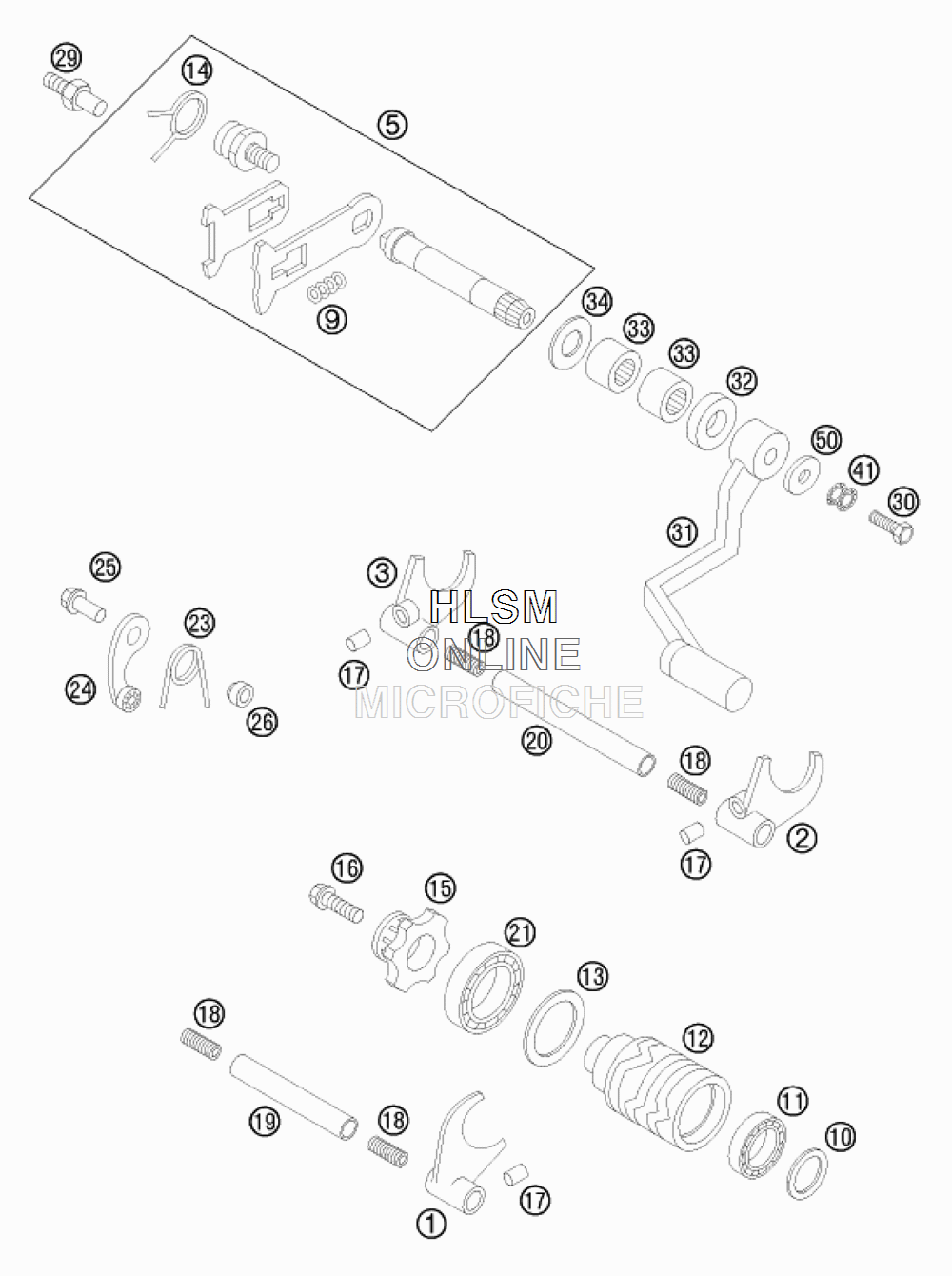

SHIFTING MECHANISM для Ktm 85 SX 19/16 - 2016 года выпуска
-
№АртикулНазвание
-
147034001000 SHIFT FORK 5TH/6TH GEARSHIFT FORK 5TH/6TH GEAR
-
247034002000 SHIFT FORK 2ND/3RD GEARSHIFT FORK 2ND/3RD GEAR
-
347034003000 SHIFT FORK 1ST/4TH GEARSHIFT FORK 1ST/4TH GEAR
-
547034005044 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
946034009000 PRESSURE SPRING SLIDER PLATEPRESSURE SPRING SLIDER PLATE
-
1047034091000 WASHER 15X20X0,5WASHER 15X20X0,5
-
110625069020 BALL BEARING 6902 15X28X7BALL BEARING 6902 15X28X7
-
1247034012000 SHIFT ROLLERSHIFT ROLLER
-
1347034092000 WASHER 25X32X0,5WASHER 25X32X0,5
-
1446034014000 RETURN SPRINGRETURN SPRING
-
1547034015000 SHIFT LOCATION DRUMSHIFT LOCATION DRUM
-
160025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
170402061200 NEEDLE ROLLER DIN5402 NRB 6X12NEEDLE ROLLER DIN5402 NRB 6X12
-
1846034019052 SPRING SHIFT RAILSPRING SHIFT RAIL
-
1947034019000 SHIFTING RAILSHIFTING RAIL
-
2046034020100 SHIFT RAILSHIFT RAIL
-
210625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2346034023100 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2446034024100 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
250025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
2647034052000 SLEEVE LOCKING LEVERSLEEVE LOCKING LEVER
-
2947034029000 ARRESTER FOR SPRINGARRESTER FOR SPRING
-
300933060205 HH SCREW DIN933 M6X20 10.9HH SCREW DIN933 M6X20 10.9
-
3147034031000 SHIFT LEVERSHIFT LEVER
-
320760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3354632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
3447033043000 STOP DISC 15X25X0,5STOP DISC 15X25X0,5
-
4150233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
5050232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
