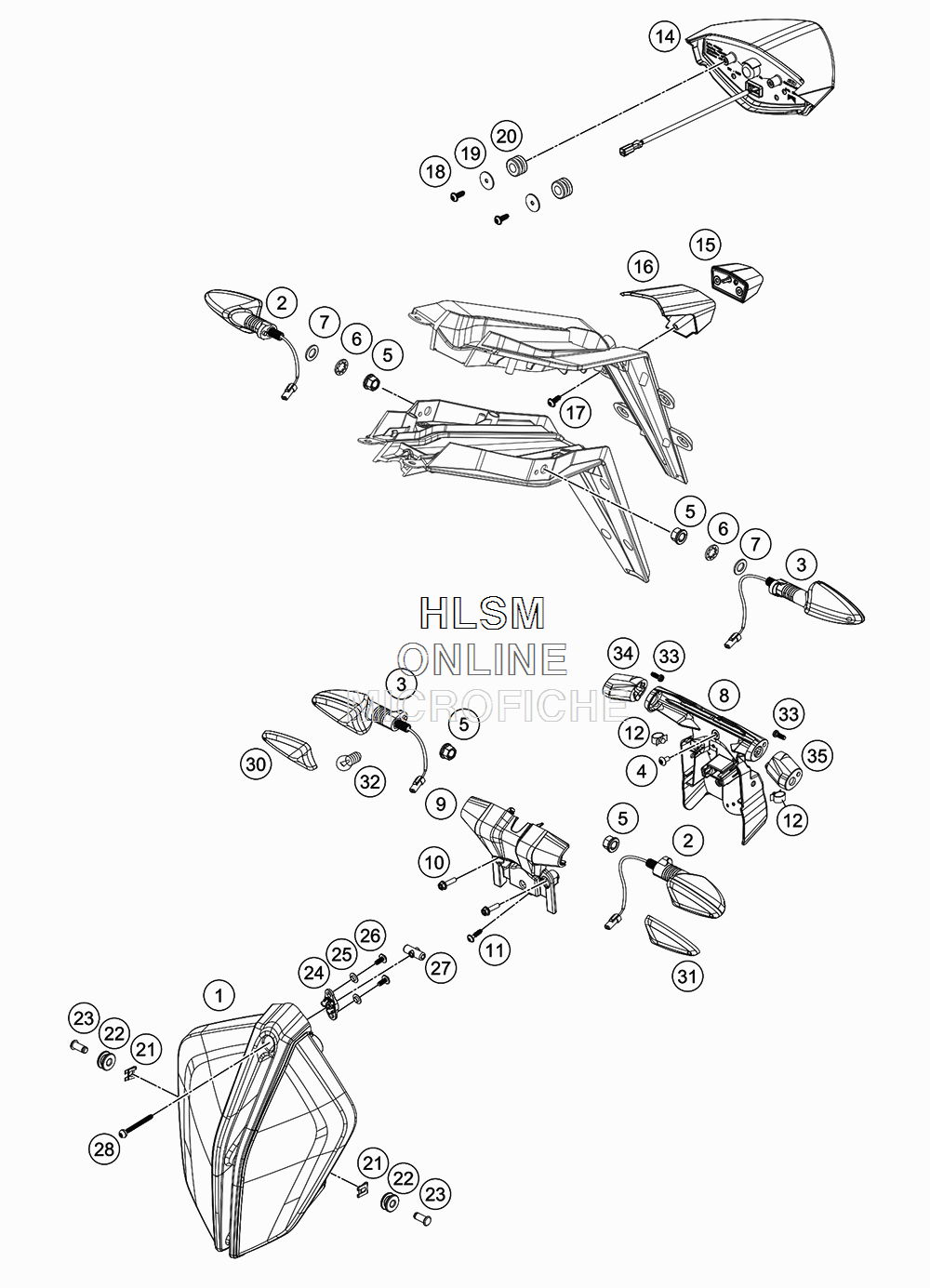

LIGHTING SYSTEM для Ktm 1290 SUPER DUKE R WHITE - 2017 года выпуска
-
№АртикулНазвание
-
161614001000 HEADLIGHT LEDHEADLIGHT LED
-
278114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
378114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
458605083010 SCREW TORX M5X10SCREW TORX M5X10
-
558414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
60797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
70433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
861614534000 INDICATOR CARRIER REAR PART USINDICATOR CARRIER REAR PART US
-
961614033000 FLASHER SUPPORT FRONTFLASHER SUPPORT FRONT
-
100025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
110081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
1257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
1461314140200 REAR LIGHT SUPERDUKE SAEREAR LIGHT SUPERDUKE SAE
-
1560314047000 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
1661308024000 COVER NUMBER PLATE LIGHTCOVER NUMBER PLATE LIGHT
-
170081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
180081050141 EJOT PT SCREW 50X14 WN 1451EJOT PT SCREW 50X14 WN 1451
-
190522040003 WASHER DIN522 A2K 4.3X20X1.25WASHER DIN522 A2K 4.3X20X1.25
-
2061013013000 RUBBER BUSHRUBBER BUSH
-
2160013058000 SECURING CLIP D=8MMSECURING CLIP D=8MM
-
2261614013050 RUBBER BUSHINGRUBBER BUSHING
-
2360013057000 BOLT F. LINK FORK 8X20X16,5BOLT F. LINK FORK 8X20X16,5
-
2461614020100 BALLHEAD HOLDERBALLHEAD HOLDER
-
2561412032010 BUSH 13X7X3,3BUSH 13X7X3,3
-
2661614018100 EJOT AL TRACS 50X12EJOT AL TRACS 50X12
-
2761614019000 SHAFTSHAFT
-
2861614020010 EJOT PT SCHRAUBE 50X54EJOT PT SCHRAUBE 50X54
-
3078114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
3178114027000 FLASHER LENS FRO.L/S-REAR R/SFLASHER LENS FRO.L/S-REAR R/S
-
3244111015100 BULB 12V 10WBULB 12V 10W
-
330081250141 SCREW FOR PLASTIC PT K50X14T25SCREW FOR PLASTIC PT K50X14T25
-
3461614525040 BLINKER ADAPTER USA RIGHTBLINKER ADAPTER USA RIGHT
-
3561614525030 BLINKER ADAPTER USA LEFTBLINKER ADAPTER USA LEFT
