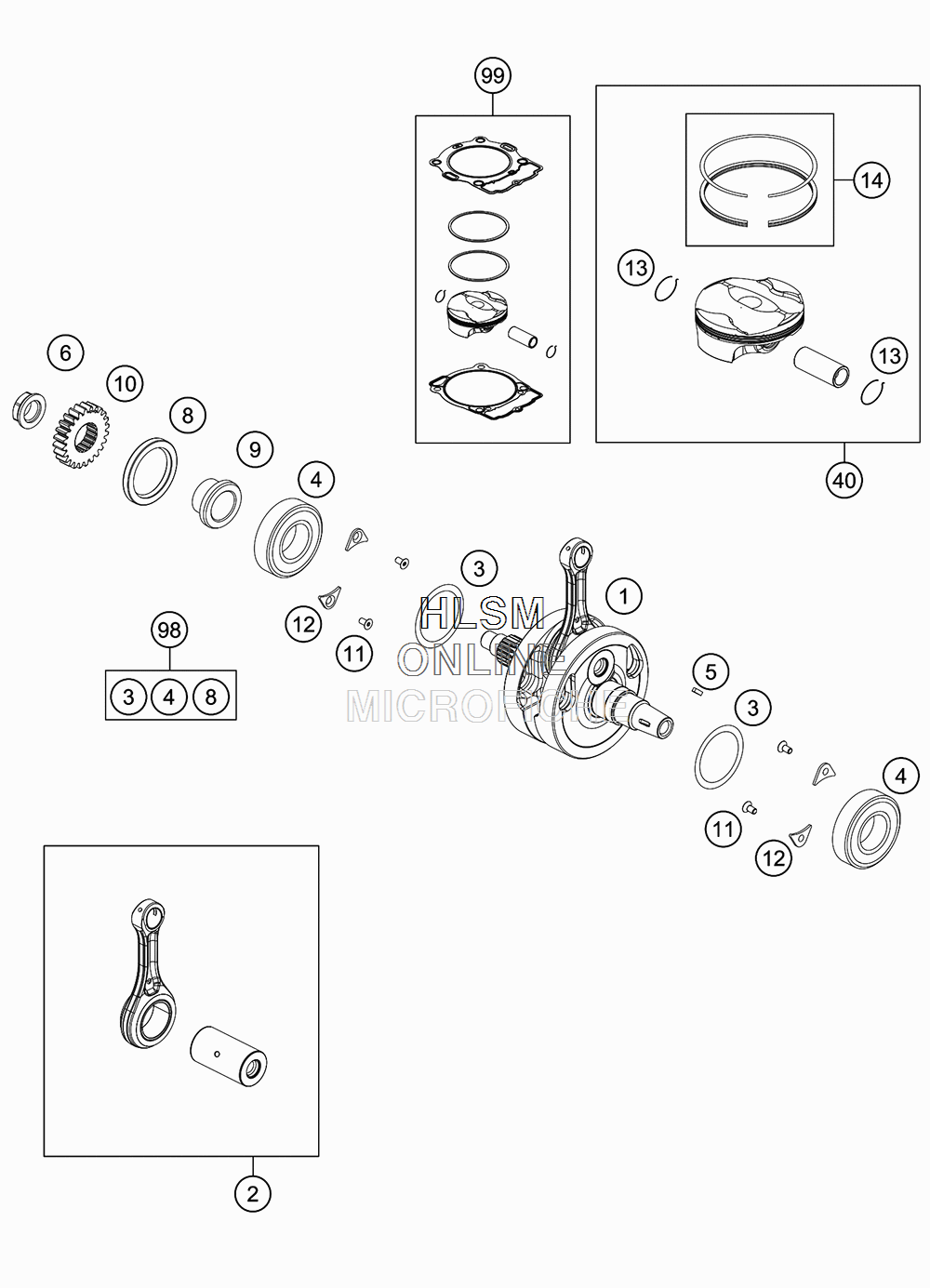

CRANKSHAFT PISTON для Ktm 250 EXC-F - 2017 года выпуска
-
№АртикулНазвание
-
179030118100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
279030115144 CONROD REP AIR KITCONROD REP AIR KIT
-
30988324510 THRUST WASHER 988ST 32X0,1THRUST WASHER 988ST 32X0,1
-
30988324515 THRUST WASHER 988ST 32X0,15THRUST WASHER 988ST 32X0,15
-
30988324530 THRUST WASHER 988ST 32X0,30THRUST WASHER 988ST 32X0,30
-
477330082200 BEARING NJ 206 ECP/HN3C4HVA624BEARING NJ 206 ECP/HN3C4HVA624
-
50888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
677230029000 NUT PRIMARY WHEELNUT PRIMARY WHEEL
-
70760304760 SHAFT SEAL RING A30X47X6 VITONSHAFT SEAL RING A30X47X6 VITON
-
80760405561 SHAFT SEAL RING A 40X55X6 V.SHAFT SEAL RING A 40X55X6 V.
-
977232022000 SPACER BUSHING PRIMARY GEARSPACER BUSHING PRIMARY GEAR
-
1079232023024 PRIMARY GEAR 24T.PRIMARY GEAR 24T.
-
110019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
1275030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
1379030274000 CIRCLIP PISTON PINCIRCLIP PISTON PIN
-
1479030231044 PISTON RING SETPISTON RING SET
-
4079030507000 I PISTON I CPL. 250I PISTON I CPL. 250
-
4079030507000 II PISTON I CPL. 250II PISTON I CPL. 250
-
9800050002316 CRANKSHAFT REP. KITCRANKSHAFT REP. KIT
-
9900050000239 PISTON KIT I 250 4STR 2017PISTON KIT I 250 4STR 2017
-
9900050000240 PISTON KIT II 250 4STR 2017PISTON KIT II 250 4STR 2017
